Creating a Business Scenario

Scenario

Business scenarios are used to monitor business metrics. This section describes how to create a business scenario.

Procedure

1. On the DataArts Studio console, locate an instance and click Access. On the displayed page, locate a workspace and click DataArts Quality.

2. Create a metric.
   1. In the navigation pane on the left, choose Metrics.

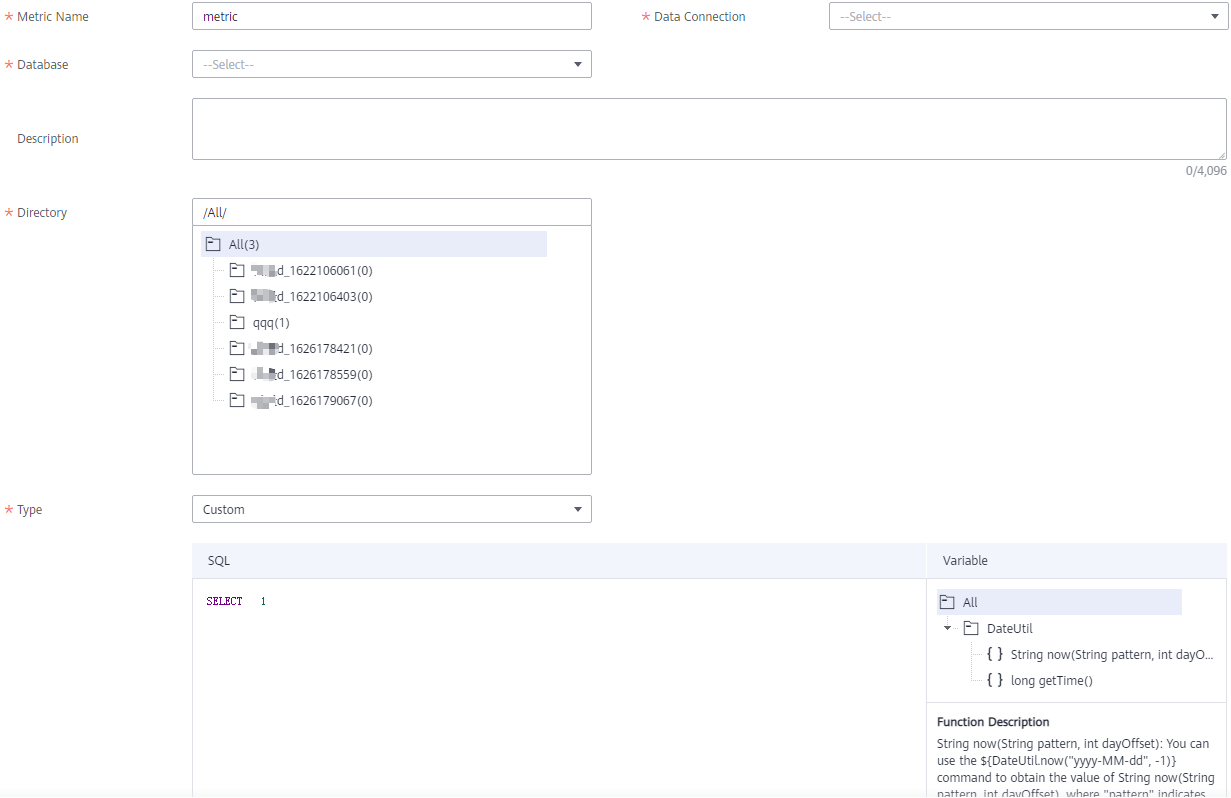

   2. On the Metrics page, click Create.



   3. Click Trial Run to check whether the metric runs properly.
   4. Click OK.

3. Create a rule.
   1. In the navigation pane on the left, choose Rules.
   2. On the Rules page, click Create.

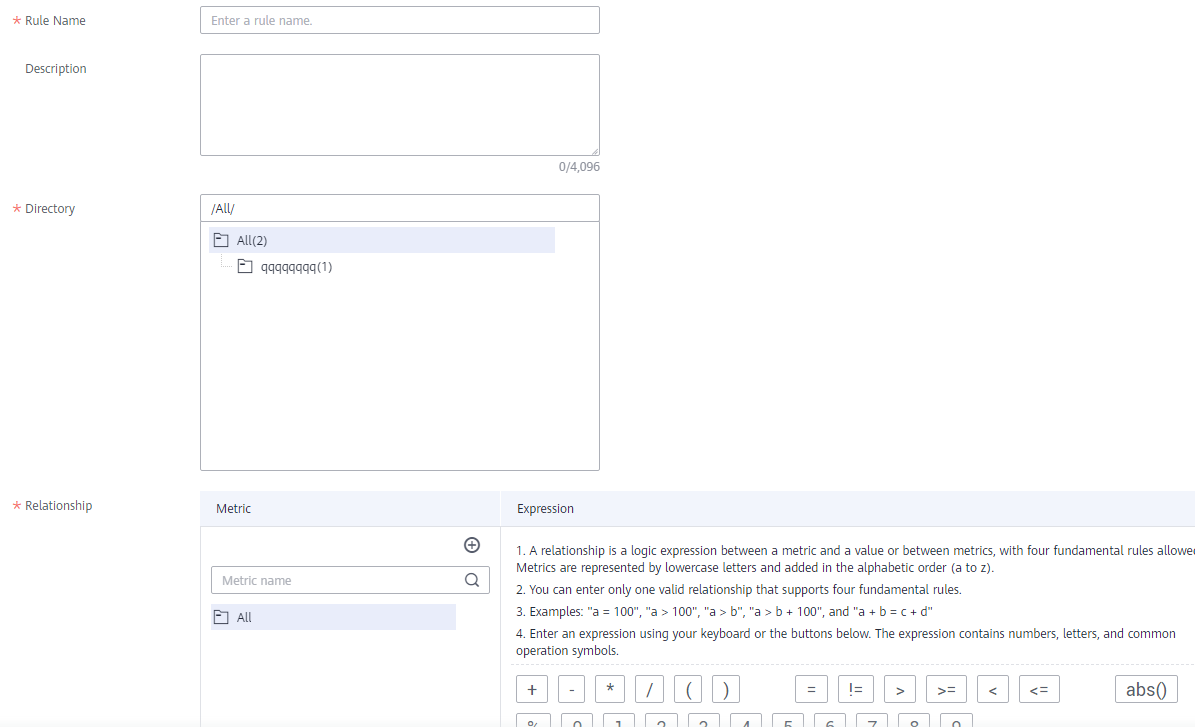

   3. Set the parameters shown in the following figure.



   4. Click OK.
   5. On the Rules page, click Create to create another rule.
   6. Set the parameters shown in the following figure.



   7. Click OK.

4. Create a scenario.
   1. In the navigation pane on the left, choose Scenarios.

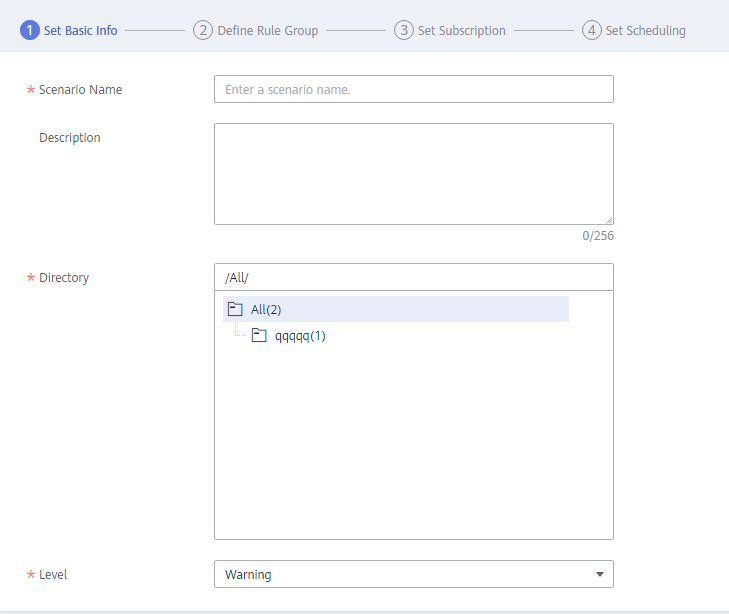

   2. On the Scenarios page, click Create. On the displayed Create Scenario page shown in the following figure, set the required parameters.

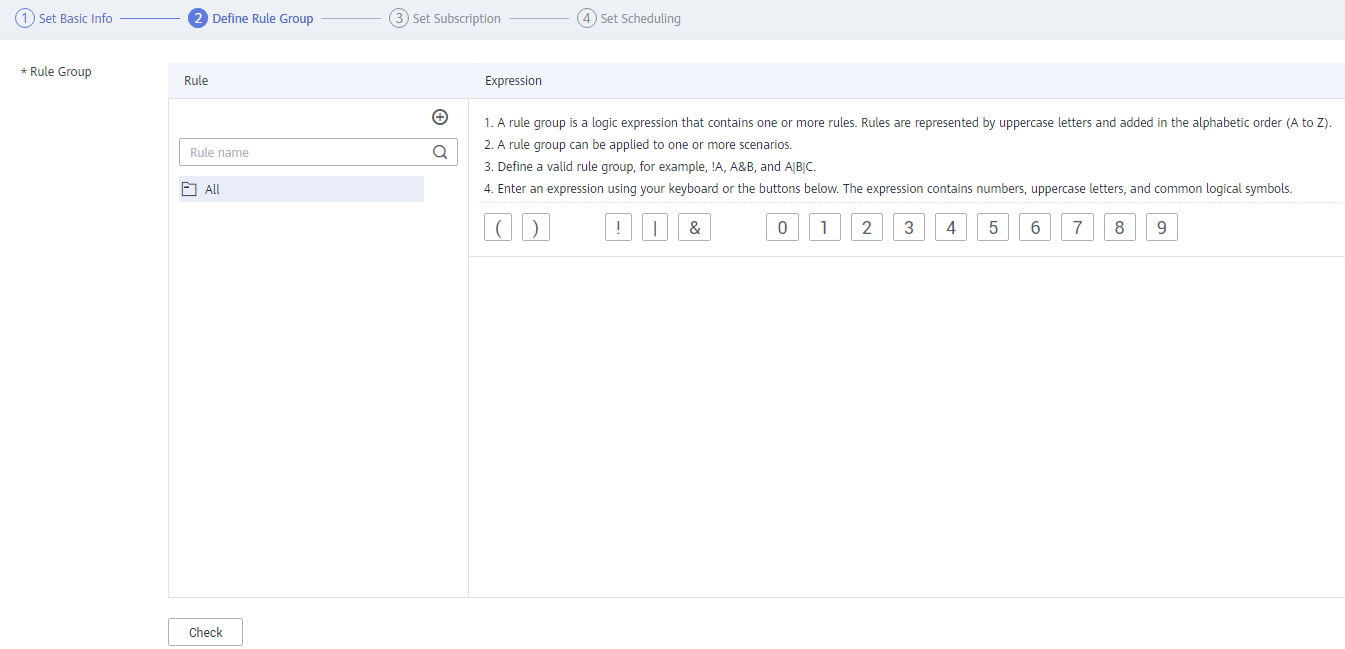

   3. Click Next and set the parameters for the rule group.

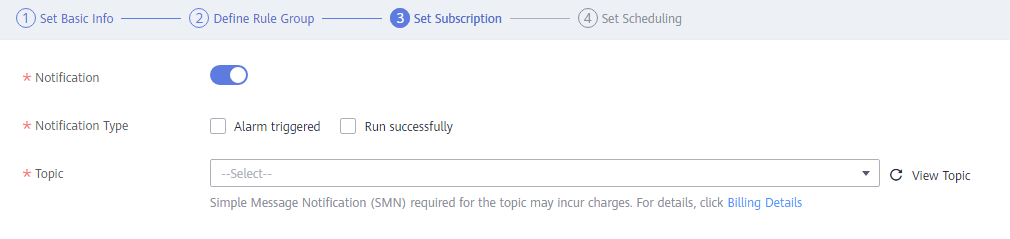

   4. Click Next and set subscription parameters.

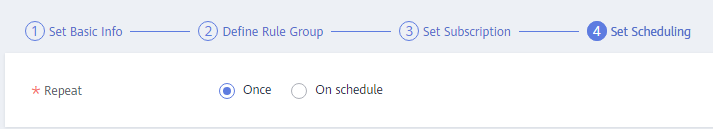

   5. Click Next and set scheduling parameters.



   6. Click Submit.

5. In the scenario list, locate the created scenario and click Run in the Operation column.
   1. Click the refresh button in the upper right corner. The Running Status of the scenario is Succeeded.
   2. Click the running result to view details.
