Creating Lookup Tables

Creating and Publishing a Lookup Table

Manually create a lookup table. You can also add table records after creating a lookup table. For details, see Filling in a Lookup Table.

1. On the DataArts Studio console, locate an instance and click Access. On the displayed page, locate a workspace and click DataArts Architecture.
   Figure 1 DataArts Architecture

2. On the DataArts Architecture page, choose Standards > Lookup Tables in the left navigation pane.
3. Select a directory from the directory tree on the Lookup Tables page, and then click to create a directory under the selected directory. When creating a directory for the first time, you can create a directory under the root directory.

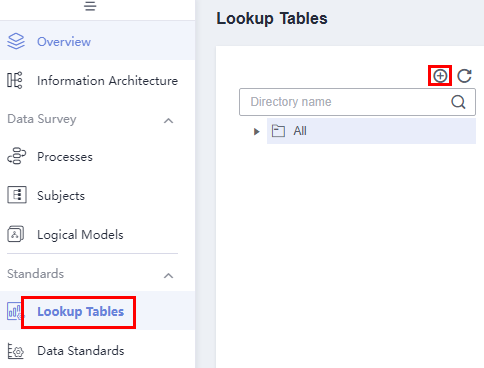

   Figure 2 Lookup Tables page

4. In the dialog box displayed, set the parameters and click OK.

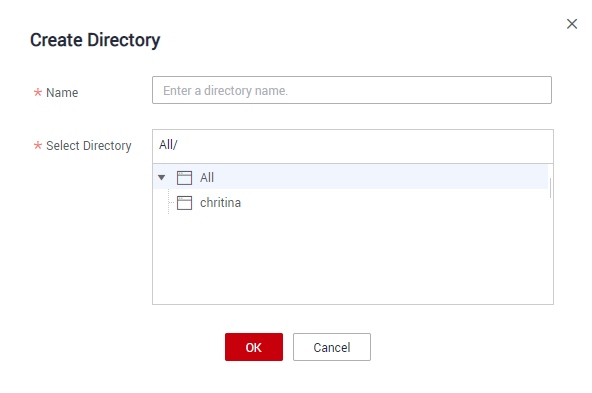

   Figure 3 Create Directory dialog box


   Table 1 Directory parameters

   Parameter	Description
   Name	Only letters, numbers, and underscores (_) are allowed.
   Select Directory	Select an existing directory, and create a subdirectory under it.

5. Select the directory you created in the directory tree and click Add to create a lookup table.
6. On the Create Lookup Table page displayed, configure the parameters.

   In the Table Details area, set the parameters.

   Figure 4 Table Details area


   Table 2 Parameters

   Parameter	Description
   Table Name	The name of the lookup table to create. It must start with letters. Only letters, digits, and the following special characters are allowed: ()-_
   Table Code	The code of the lookup table to create. It must start with letters. Only letters, digits, and underscores (_) are allowed.
   Description	A description of the lookup table. Up to 600 characters are supported.

   In the Field Inputs area, click Add or to add new fields, and click to delete unnecessary fields.

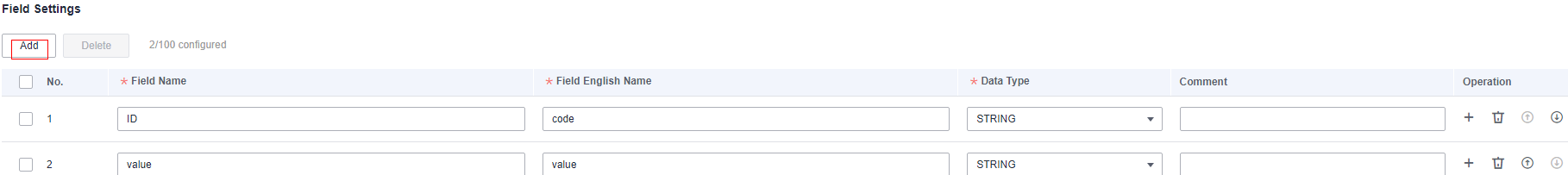

   Figure 5 Field Inputs area

7. Click Publish. In the Apply for Publication dialog box displayed, select a reviewer and click OK. After the application is approved, the Lookup Tables page is displayed. You can view the created lookup table in the list, and the status of the table is Published. Only published lookup tables can be used.


   If you have been added as a reviewer, you can select Auto-review and click OK. After the application is approved, the lookup table status changes to Published.

Filling in a Lookup Table

Input values in the created lookup tables.

1. On the DataArts Architecture page, choose Standards > Lookup Tables in the left navigation pane.
2. In the list of lookup tables, find the target table and choose More > Manage Value in the Operation column.
3. On the page displayed, click Add. In the dialog box displayed, set the parameters.
   Figure 6 Inputting a value


4. Click OK. You can also click Continue to add more records.

Importing a Lookup

When importing a lookup table, ensure that the table name contains a maximum of 32 characters.

You can import a new lookup table or import lookup table records in batches to an existing lookup table. If you have a large number of lookup table records, you are advised to import them in batches.

1. On the DataArts Architecture page, choose Standards > Lookup Tables in the left navigation pane.
2. On the page displayed, select a directory, and choose More > Import. You can also right-click the selected directory and choose Import.
   Figure 7 Lookup Tables page


3. In the Import Lookup Table dialog box displayed, set the parameters, and click Upload.

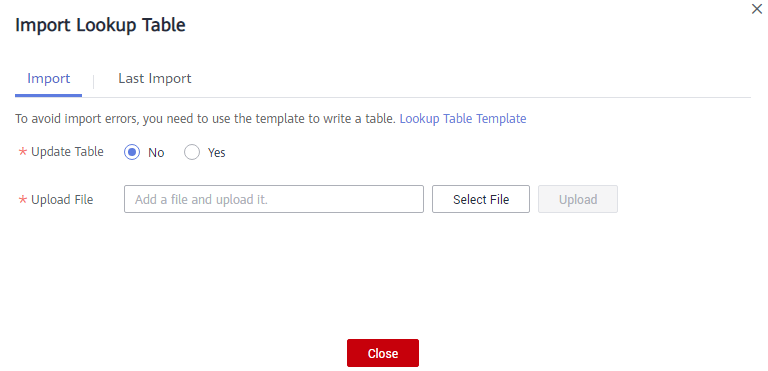

   Figure 8 Import Lookup Table dialog box


   Table 3 Parameters for importing a lookup table

   Parameter	Description
   Update Table	Whether to update the existing lookup table. When a lookup table is imported, the system checks whether the lookup table exists according to its code. The options are as follows: No: If you select this option, the existing lookup table will not be updated. Yes: If you select this option, the existing lookup table will be updated. If a lookup table is in the Published state, you must publish the lookup table again after updating it so that the updated lookup table can take effect. The import can create a lookup table or update an existing lookup table. It will not delete a lookup table.
   Upload File	Select the file to import. You can use either of the following methods to obtain the file to import: Downloading the lookup table template and fill in it In the Import Lookup Table dialog box, click Lookup Table Template to download the template, fill in the content, and save the settings. See Table 4 for template parameter details. Instructions for filling in the lookup table template: Parameters whose names start with an asterisk (*) are mandatory, and other parameters are optional. Multiple fields can be added to a lookup table. To import multiple lookup tables, you can add multiple sheets to the template file. The sheet name is the corresponding lookup table name. If the name of a lookup table already exists and Update Table is set to Yes, the existing lookup table will be updated during the import. If the table name does not exist, a lookup table with that name is created during the import. Exporting lookup tables to files You can export the lookup tables created in DataArts Architecture of a DataArts Studio instance to an Excel file. Then, import the Excel file. For details on how to export lookup tables, see Managing a Lookup Table.

   Table 4 Parameters

   Parameter	Description
   Directory	The directory that a lookup table belongs to. Multi-level directories are separated with slashes (/), for example, dir01/dir02.
   *Table Name	The name of the lookup table to create. It must start with letters. Only letters, digits, and the following special characters are allowed: ()-_
   *Table Code	The code of the lookup table to create. Only letters, numbers, and underscores (_) are allowed. A table code must start with a letter.
   Table Description	A description of the lookup table. Up to 600 characters are supported.
   *Field Name	The name of a field. Field names must start with letters. Only letters, numbers, spaces, and the following special characters are allowed: ()-_
   *Field Code	The code of a field. Only letters, numbers, and underscores (_) are allowed. A field code must start with a letter.
   *Field Data Type	The possible values are STRING, BIGINT, DOUBLE, TIMESTAMP, DATE, BOOLEAN, and DECIMAL.
   Field Description	The supplementary information about a field. Up to 600 characters are supported.
   Generate Standard	true indicates to generate a data standard. false indicates not to generate a data standard. The default value is false. Note: To enable automatic generation of the data standard, choose Configuration Center in the navigation pane, click the Standard Templates tab, and select Lookup table.

   If the lookup table records need to be imported, create a sheet named after the lookup table in the template and add table fields to the sheet. Each field occupies a column. The column name includes the code and value. Enter the lookup table values to be imported. If the template contains a sheet named after the lookup table, you do not need to create the sheet. You can directly enter the table values to be imported in the sheet.

4. View the import result on the Last Import tab page. If the import is successful, click Close. If the import fails, you can view the failure cause, correct the template file, and upload it again.

Importing a Lookup Table Through a Reverse Database

With reverse databases, you can import one or more created database tables from other data sources into a lookup table directory to turn them into lookup tables.

1. On the DataArts Architecture page, choose Standards > Lookup Tables in the left navigation pane.
2. On the page displayed, select a directory and click Reverse Database above the lookup table list.
3. In the dialog box displayed, set the parameters and click OK.

   Table 5 Parameters for reversing a database

   Parameter	Description
   Data Connection Type	The data connection types supported by the reverse database are displayed in the drop-down list box. Select the required data connection type.
   Data Connection	Select a data connection. If you want to reverse a database from other data sources to a lookup table directory, you must create a data connection in Management Center to connect to the data source. For details on how to create data connections, see Creating Data Connections.
   Database	The name of the database. Select a database from the drop-down list box.
   Schema	Select a value from the drop-down list box. This parameter is displayed only for DWS tables.
   Queue	DLI queue. This parameter is available only when Data Connection Type is set to DLI.
   Update Table	When Yes is selected, if the name of the reversed table is the same as that of an existing table in the lookup table list, the existing table is updated.
   Reverse Table	No: If you select this option, tables are imported to the lookup table directory but table data is not imported during database reverse. After reversing a database, you can add records to the lookup table. Refer to Filling in a Lookup Table for details. Overwrite: If you select this option, tables are imported to the lookup table directory and table data is imported as well during database reverse.
   Data Table	You can select one or more data tables to import.

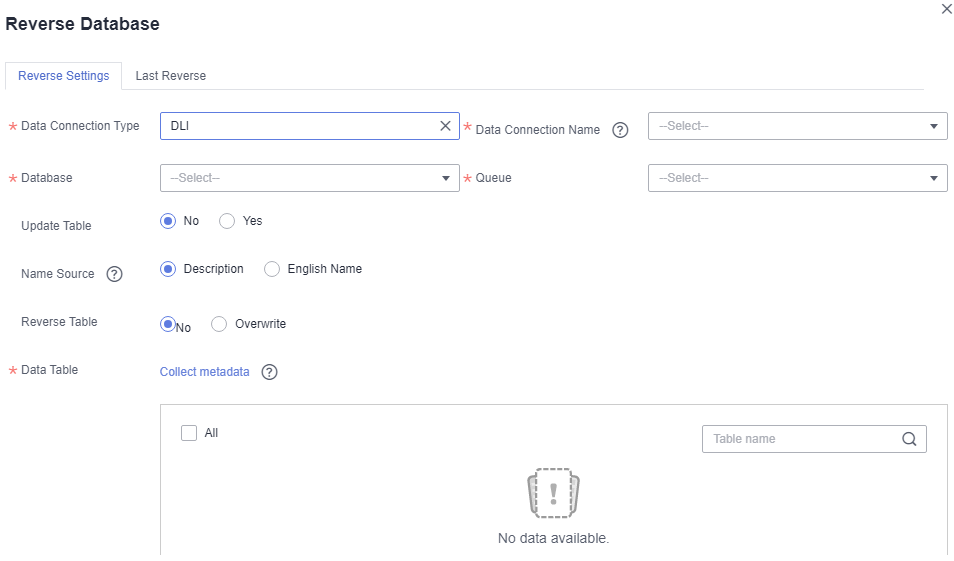

   Figure 9 Reverse Database dialog box


4. You can view the result on the Last Reverse tab page. If the reverse operation is successful, click Close. If the reverse operation fails, you can view the failure cause. After the fault is rectified, select the table again and click Reverse to retry.

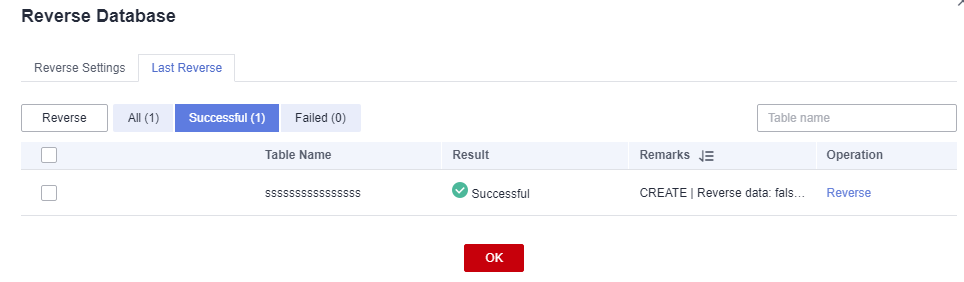

   Figure 10 Last Reverse tab page


Exporting a Lookup Table

When exporting a lookup table, ensure that the table name contains a maximum of 32 characters.

1. On the DataArts Architecture page, choose Standards > Lookup Tables in the left navigation pane.
2. Export a lookup table.
   • Export a single lookup table.

     In the lookup table list, select the target lookup table and choose More > Export.

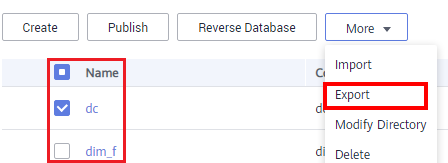

     Figure 11 Lookup table list

   • Export all tables in the list.

     Right-click a directory in the directory tree and choose Export.

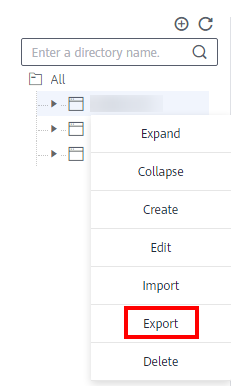

     Figure 12 Directories storing exported lookup tables


Deleting a Lookup Table

Deleted lookup tables cannot be recovered. Exercise caution when performing this operation. A lookup table that is to be published, has already been published, or to be suspended cannot be deleted.

1. On the DataArts Architecture page, choose Standards > Lookup Tables in the left navigation pane.
2. In the lookup table list, select the target lookup table and choose More > Delete above the list.
3. In the dialog box displayed, click Yes.

Deleting a Lookup Table Directory

A directory or its subdirectories that contain a lookup table cannot be deleted. You must delete the lookup table before deleting the directory.

1. On the DataArts Architecture page, choose Standards > Lookup Tables in the left navigation pane.
2. Right-click a directory in the directory tree and choose Delete.

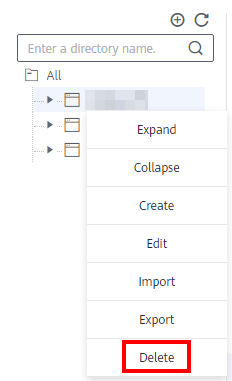

   Figure 13 Managing lookup table directories


3. In the dialog box displayed, click Yes.

Managing a Lookup Table

After a lookup table is created, you can search for, edit, or delete it.

On the DataArts Architecture page, choose Standards > Lookup Tables in the left navigation pane. You can manage the lookup tables as required.

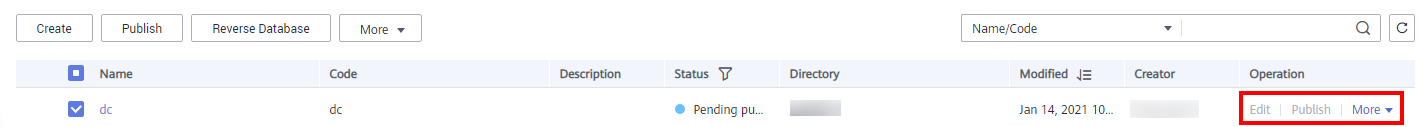

Figure 14 Managing lookup tables

• Edit

  In the lookup table list, select a table you want to edit and click Edit in the Operation column.

• Publish

  In the lookup table list, click Publish in a row containing a table in the Draft or Rejected state, select a reviewer in the dialog box displayed, and click OK. After the application is approved, the lookup table is published.

• Suspend

  In the lookup table list, locate a published lookup table you want to suspend, click More in the Operation column, and select Suspend from the drop-down list. In the displayed dialog box, select a reviewer and click OK. After the application is approved, the lookup table is suspended.

• Manage Value

  In the lookup table list, locate a lookup table, click More in the Operation column, and select Manage Value from the drop-down list. Then you can edit the value of each field.

• View History

  In the lookup table list, locate a lookup table, click More in the Operation column, and select View History from the drop-down list. Then you can view the publish history and changes of the lookup table, and compare different versions of it.
