Managing API Versions

Scenario

DataArts DataService allows you to manage APIs by version, and debug and publish APIs of different versions.

You can also track API changes by API version and compare versions. The system retains 10 latest version records.

Prerequisites

• API version management is supported only in the exclusive edition.
• To update an API version, you need to edit a published API and publish it again. An API cannot be edited and the API version cannot be updated if it is in the pending review or execution state after published, unpublished, suspended, or resumed.

Updating an API Version

To update an API version, you need to edit a published API and publish it again.

1. On the DataArts Studio console, locate a workspace and click DataArts DataService.

2. In the left navigation pane, choose Exclusive. The Overview page is displayed.
3. Choose API Development > APIs. Ensure that the API you want to update is in Published state and click Edit in the Operation column.
4. On the Edit API page, you can modify the basic configuration or data extraction logic of the API, such as the API catalog, description, request method, input parameters, and data extraction method. The API name, request path, protocol, and security authentication cannot be changed.

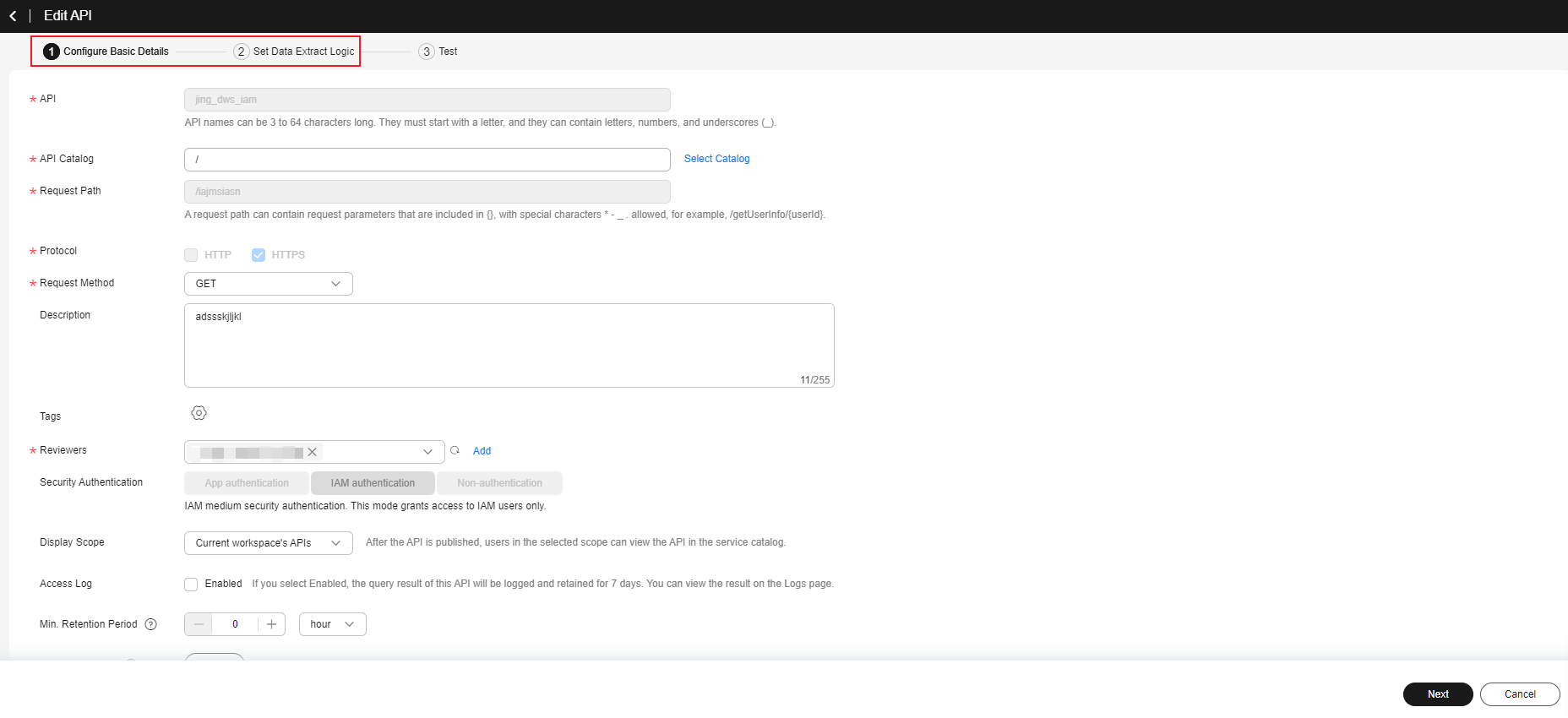

   Figure 1 Modifying the basic configuration or data extraction logic of the API


5. After modifying the API, click Next. On the displayed page, set related parameters and test the API.
   You can configure API request parameters in the left pane. See Table 1 for parameter details. The request information sent by the API and the returned result after the API request is invoked are displayed on the right.

   Table 1 Debugging APIs

   Parameter	Description
   API Version	Only specified API versions in DataArts DataService Exclusive can be debugged. If the API version is not specified, unpublished APIs will be debugged by default.
   Parameters	Query parameters and their values.
   Cluster Settings	Supported only by Exclusive Edition. Select the instance where the API to be debugged resides.

6. After the test is complete, click OK to return to the API list. Edited is displayed next to the name of the API that you have modified.

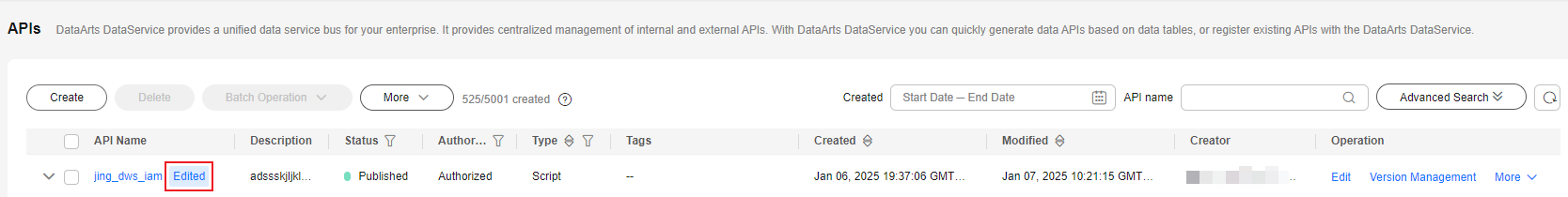

   Figure 2 Editing an API


7. Publish the edited API again. In the API list, locate the API you have edited, click More in the Operation column, and select Publish. In the displayed dialog box, select a cluster you have debugged.

   You can publish the API to the cluster where the API was published last time. Then the API information in the cluster will be updated. You can also publish the API to another cluster. Then this API has different versions in different clusters.

Viewing and Comparing Versions

1. On the DataArts Studio console, locate a workspace and click DataArts DataService.

2. In the navigation pane on the left, choose Exclusive. The Overview page is displayed.
3. Choose API Development > API Catalogs or API Development > APIs.
4. On the API details page, click the Version Management tab to view the versions of the API. A maximum of 10 latest versions are retained.
   You can view the details of an API version, or delete or publish a version. You can also select two versions and click Compare Version to compare them.

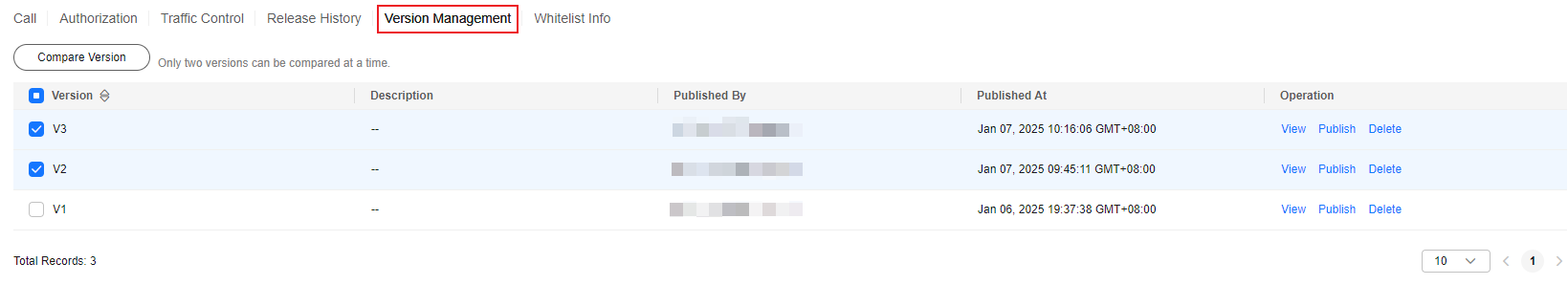

   Figure 3 Managing API versions
