Dashboard
In the CBH system, the Dashboard module presents the CBH system information and statistics on system user actions and host and application operations from different dimensions. The Dashboard module consists of a basic statistic area and 17 graph panels, including basic statistics area, Online User, Tickets To Approve, Host Statistics, Application Statistics, Alive Sessions, Today Spawned Sessions, Logon Statistics, Operation Statistics, Top 5 of Operation User, Top 5 of Operation Host, System Status, System Info, Recently Logged Hosts, Recently Logged Applications, My Hosts, and My APPs.
These panels are visible for you based on your roles. This topic uses the system administrator admin as an example to describe how to get information on the Dashboard page.
Procedure
- Log in to the CBH system.
- In the navigation tree on the left, choose Desktop. The Desktop Dashboard page is displayed.
Figure 1 Dashboard
- View different panels based on your needs. For details about the functions of each panel, see the following topics.
Basic Statistics
Displays statistics about users, hosts, applications, and application servers that can be managed by the current user, and the number of unprocessed alerts.
![](https://support.huaweicloud.com/eu/usermanual-cbh/en-us_image_0000001180588016.png)
To view basic statistics, obtain the management permissions for User, Host, Application, and Application Server modules and the role management permissions. Otherwise, this panel will be invisible for you. In the basic statistics area, you can view:
- User information
Displays the number of user accounts that can be managed. You can click this module to go to the user list page and manage the users.
- Hosts
Displays the number of host resources that can be managed. You can click this module to go to the host list page and manage the host resources.
- Application
Displays the number of application resources that can be managed. You can click this module to go to the application resource list page and manage the application resources.
- AppServer
Displays the number of application servers that can be managed. You can click this module to go to the application server list page and manage the application servers.
- Alert
Displays the number of unprocessed alarms. You can click this module to go to the message center page and manage messages.
Online User
Displays the online users and historical login users you can manage.
To view the statistics of online users, obtain the management permission of the User module and the role management permission.
![](https://support.huaweicloud.com/eu/usermanual-cbh/en-us_image_0000001225826211.png)
Tickets to Approve
Displays the tickets to be approved.
To view the tickets to be approved, obtain the management permission of the Ticket Approval module and the role management permission.
Click a ticket in the list to go to the ticket details page. On this page, you can view the ticket information and approve it with just one click.
![](https://support.huaweicloud.com/eu/usermanual-cbh/en-us_image_0000001226027709.png)
Host Statistics
Displays the statistics on hosts you can manage.
To view the statistics of hosts, obtain the management permission of the Host module and the role management permission.
- Different color represents different host type. Move your cursor over a color block in the circle to view the number of hosts of a certain type.
- Click a color block to go to the corresponding host list page.
![](https://support.huaweicloud.com/eu/usermanual-cbh/en-us_image_0000001180428046.png)
Application Statistics
Displays the statistics on application types you can manage.
To view the statistics of application resources, obtain the management permission of the Application module and the role management permission.
- Different color represents different host type. Move your cursor over a color block in the circle to view the number of application resources of a certain type.
- Click a color block to go to the corresponding application list page.
![](https://support.huaweicloud.com/eu/usermanual-cbh/en-us_image_0000001226146275.png)
Alive Sessions
Displays the statistics on sessions you can manage.
To view the statistics of live sessions, obtain the management permission of the Live Session module and the role management permission.
You can click a live session type to go to the corresponding live session list page and monitor the session in real time.
![](https://support.huaweicloud.com/eu/usermanual-cbh/en-us_image_0000001180906506.png)
Today Spawned Sessions
Displays the statistics on historical sessions you can manage.
To view the statistics of historical sessions, obtain the management permission of the History Session module and the role management permission.
You can click a history session type to go to the corresponding historical session list page and view historical sessions.
![](https://support.huaweicloud.com/eu/usermanual-cbh/en-us_image_0000001180746590.png)
Logon Statistics
Displays the trend chart of the number of logins to the CBH system by system users under your management. You can view the trend charts of the current week and month.
To view the statistics on logins, obtain the management permission of the User module and the role management permission.
- To view how many times the CBH system is logged in within a certain day, move your cursor over the corresponding date.
![](https://support.huaweicloud.com/eu/usermanual-cbh/en-us_image_0000001180588030.png)
Operation Statistics
Displays the trend chart of the number of logins to managed resources by system users under your management. You can view the trend charts of the current week and month.
To view the statistics on logins to resources, obtain the management permission of the History Session module and the role management permission.
To view how many times authorized resources are accessed through the CBH system within a certain day, move your cursor over the corresponding date.
![](https://support.huaweicloud.com/eu/usermanual-cbh/en-us_image_0000001225826219.png)
Top 5 of Operation User
Displays top 5 system users with most login times to managed resources. You can view the trend charts of the current week and month.
To view the statistics on user login times to the managed resources, obtain the management permission of the History Session module and the role management permission.
Click a user in the list to go to the user details page. On this page, you can view and manage user information.
![](https://support.huaweicloud.com/eu/usermanual-cbh/en-us_image_0000001226027719.png)
Top 5 of Operation Host
Displays top 5 mostly accessed resources. You can view the trend charts of the current week and month.
To view the statistics on managed resources, obtain the management permission of the History Session module and the role management permission.
Click a host resource in the list to go to the details page. On this page, you can view and manage resource information.
![](https://support.huaweicloud.com/eu/usermanual-cbh/en-us_image_0000001180428052.png)
System Status
Displays the CPU, memory, and disk usage of the current system.
To view the statistics on system status, obtain the management permission of the System module and the role management permission.
![](https://support.huaweicloud.com/eu/usermanual-cbh/en-us_image_0000001225907771.png)

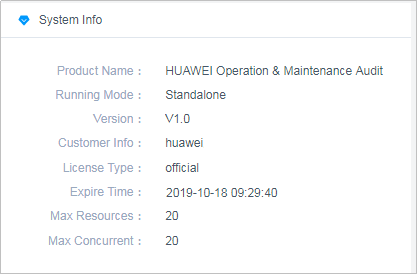

System Info
Displays the basic information about the current system and the specifications of the authorized system version.
To view information about your CBH system, obtain the management permission of the System module and the role management permission.
![](https://support.huaweicloud.com/eu/usermanual-cbh/en-us_image_0000001180906524.png)
Recently Logged Host
Lists the host resources you have logged in recently.
To view recently logged in hosts, obtain the management permissions for the Host Operation module.
- To view details about a host, click the host name in the list to go to the details page.
- To quickly log in to a host resource, click Login in the host row.
![](https://support.huaweicloud.com/eu/usermanual-cbh/en-us_image_0000001180746604.png)
Recently Logged Application
Lists the application resources you have logged in recently.
To view recently logged in application resources, obtain the management permissions for the App Operation module.
- To view details about an application, click the application name in the list to go to the details page.
- To quickly log in to an application resource, click Login in the application row.
![](https://support.huaweicloud.com/eu/usermanual-cbh/en-us_image_0000001180588048.png)
My Hosts
Displays host resources you are authorized to log in.
To view hosts that you can log in for operations, obtain the management permissions for the Host Operation module.
- To view details about a host, click the host name in the list to go to the details page.
- To quickly log in to a host resource, click Login in the host row.
My APPs
Displays the application resources that you are authorized to log in to.
To view application resources that you can log in for operations, obtain the management permissions for the App Operation module.
- To view details about an application, click the application name in the list to go to the details page.
- To quickly log in to an application resource, click Login in the application row.
![](https://support.huaweicloud.com/eu/usermanual-cbh/en-us_image_0000001226027737.png)
