How Do I Download and Install the Agent on Source Servers?

Windows

Log in to the SMS console. In the navigation pane on the left, choose Agents.

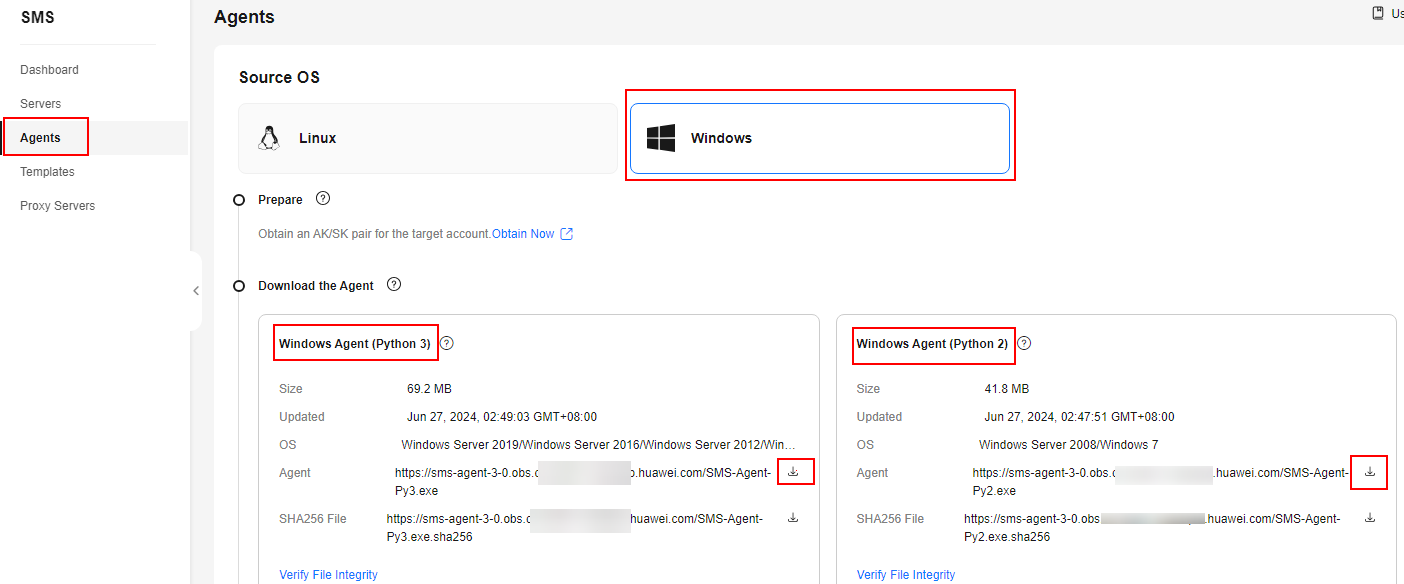

Select the Windows card. Locate the Agent that matches your source server, click the icon next to Agent to download the Agent installation package.
You can also use the following links to download the desired Agent:
- Windows Agent (Python 3)
  https://sms-agent-2-0.obs.eu-west-101.myhuaweicloud.eu/SMS-Agent-Py3.exe
- Windows Agent (Python 2)

  https://sms-agent-2-0.obs.eu-west-101.myhuaweicloud.eu/SMS-Agent-Py2.exe
When you download the Agent from the preceding links, you need to go to the SMS console to read and agree to the Service Statement.

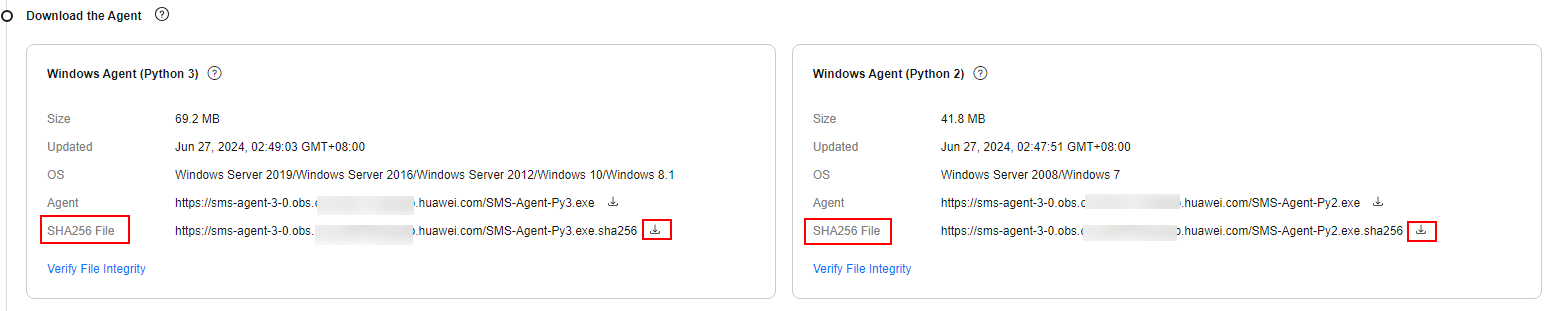

Click the icon next to SHA256 File to download the SHA256 verification code. Verify the integrity of the Agent installation package by referring to How Do I Verify the Integrity of the Agent Installation File?

You can also run the following command to download SHA256 verification code:
- Windows Agent (Python 3)

  https://sms-agent-2-0.obs.eu-west-101.myhuaweicloud.eu/SMS-Agent-Py3.exe.sha256
- Windows Agent (Python 2)

  https://sms-agent-2-0.obs.eu-west-101.myhuaweicloud.eu/SMS-Agent-Py2.exe.sha256
Install the software by referring to Windows.

Linux

Log in to the SMS console. In the navigation pane on the left, choose Agents.

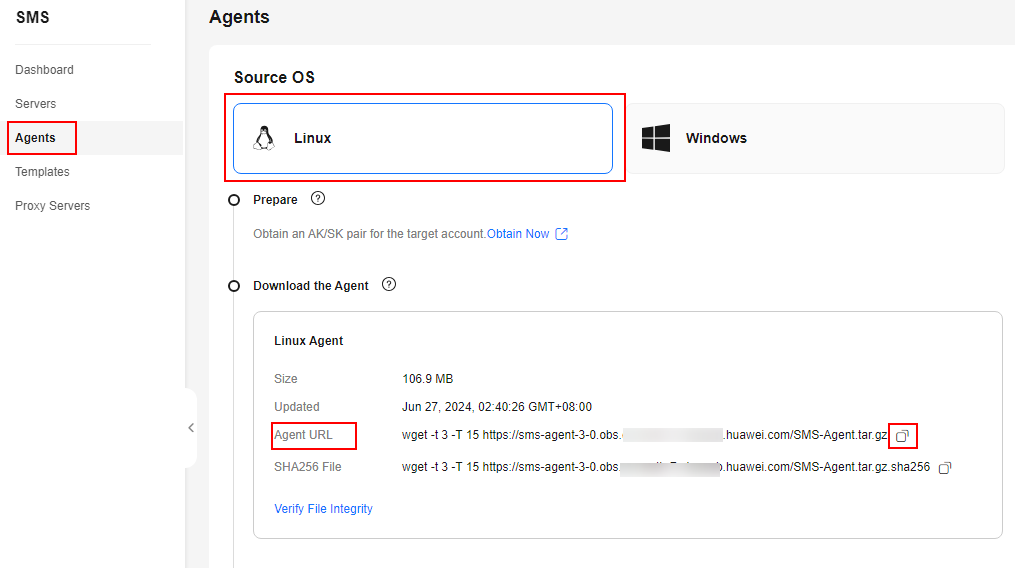

Select the Linux card, and in the Linux Agent download pane, click the icon next to Agent to copy the Agent download command. Then download the Agent installation package from the source server.

You can also use either of the following commands to download the Agent:
```
wget -t 3 -T 15 https://sms-agent-2-0.obs.eu-west-101.myhuaweicloud.eu/SMS-Agent.tar.gz
```
```
curl -O https://sms-agent-2-0.obs.eu-west-101.myhuaweicloud.eu/SMS-Agent.tar.gz
```
When you download the Agent using the preceding commands, you need to go to the SMS console to read and agree to the Service Statement.

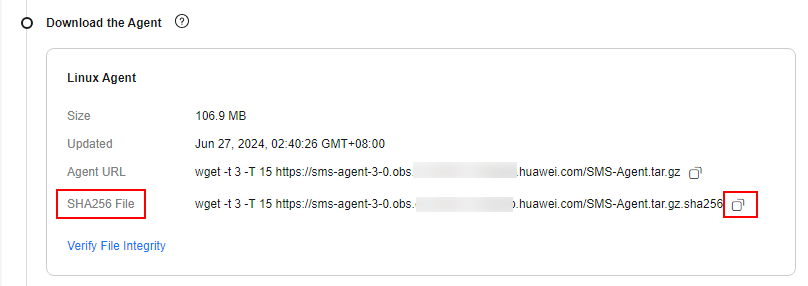

Copy the command next to SHA256 File and run the command on the source server. Use the hash value contained in the SHA256 file to verify the integrity of the Agent installation package. For details, see How Do I Verify the Integrity of the Agent Installation File?

You can also run either of the following commands to download the SHA256 verification code:
```
wget -t 3 -T 15 https://sms-agent-2-0.obs.eu-west-101.myhuaweicloud.eu/SMS-Agent.tar.gz.sha256
```
Decompress the Agent software package.
```
tar -zxvf SMS-Agent.tar.gz
```
Switch to the SMS-Agent directory on the source server.
```
cd SMS-Agent
```
If you do not need to use an HTTPS proxy, go to 7.

If you do not need to use an HTTPS proxy, go to 8.
- If your source server cannot access Huawei Cloud over the Internet, a proxy server can help you. You need to configure a proxy server by yourself.
- The proxy is used for registering the source server with SMS when a Direct Connect or VPN connection is used. It is not used for data migration.
Configure an HTTP/HTTPS proxy.
1. Go to the config directory.
```
cd SMS-Agent/agent/config
```
2. Open and edit the auth.cfg file. Do not edit the auth.cfg file unless you need to use an HTTP/HTTPS proxy.
```
vi auth.cfg
```
  The values shown here are for reference only.
```
[proxy-config]
enable = true
proxy_addr = https://your-proxy-addr.com
proxy_port = 3128
proxy_user = root
use_password = true
```
  - enable: To use the proxy, set it to true.
  - proxy_addr: Enter the IP address of the proxy server. The proxy is used by the source server to access SMS. This IP address is different from the IP address of the target server. Use the protocol configured for your proxy server. HTTPS is recommended.
  - proxy_user: Enter the username for logging in to the proxy server. If no username is required, leave it blank.
  - use_password: If a password is required for logging in to the proxy server, set it to true. If none is required, set it to false.
3. Save the auth.cfg file and exit.
```
:wq
```
Start the Agent.
```
./startup.sh
```
Carefully review what information will be collected by the Agent, enter y, and press Enter.

Figure 1 Entering y
Enter the AK/SK pair of the Huawei Cloud account and the SMS domain name in the region you are migrating to. You can obtain the SMS domain name on the Agents page of the SMS console, as shown in Figure 3.

Figure 2 Entering the AK/SK pair

Figure 3 Obtaining the SMS domain name

You must enable the EPS service for the Huawei Cloud account you migrate to. When you start the Agent installed on a source server, the Agent lists all enterprise projects the account is allowed to access. You can select the enterprise you desire. Then the server will be migrated to the enterprise project. This enables you to isolate permissions, resources, and finance during the migration. For details, see Migrating Servers into an Enterprise Project.

When the following information is displayed, the Agent has been started up and will start reporting source server information to SMS. You can go to the Servers page on the SMS console to view the record of the source server.
Figure 4 Agent running
