Overview

Supported Regions

The supported regions are subject to those available on the management console.

Scenario

To meet business development requirements, enterprise A needs to implement communication between its on-premises data center and its VPC. In this case, enterprise A can use the VPN service to create connections between the on-premises data center and the VPC.

  • If the on-premises data center has only one customer gateway and this gateway can be configured with only one IP address, it is recommended that the VPN gateway use the active-active mode. Figure 1 shows the networking.

    In active-active mode, if connection 1 is faulty, traffic is automatically switched to connection 2 for transmission, without affecting enterprise services.

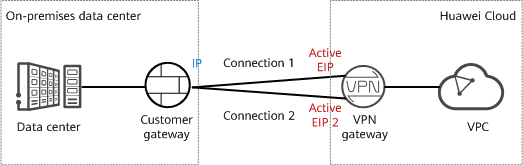

    Figure 1 Active-active mode
  • If the on-premises data center has two customer gateways or has only one customer gateway that can be configured with two IP addresses, it is recommended that the VPN gateway use the active/standby mode. Figure 2 shows the networking.

    In active/standby mode, connection 1 is the active link and connection 2 is the standby link. By default, traffic is transmitted only through the active link. If the active link fails, traffic is automatically switched to the standby link, without affecting enterprise services. After the active link recovers, traffic is switched back to the active link.

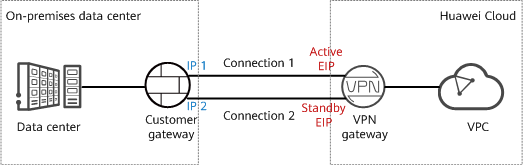

    Figure 2 Active/Standby mode

Limitations and Constraints

  • The customer gateway device must support standard IKE and IPsec protocols.
  • The interconnection subnets of the on-premises data center neither overlap with those of the VPC nor contain 100.64.0.0/10 or 214.0.0.0/8.

    If the VPC uses Direct Cloud or Cloud Connect connections to communicate with other VPCs, the on-premises data center subnets cannot overlap with those of these VPCs.

Data Plan

Table 1 Data plan

Category

Item

Data

VPC

Subnet that needs to access the on-premises data center

192.168.0.0/16

VPN gateway

Interconnection subnet

This subnet is used for communication between the VPN gateway and VPC. Ensure that the selected interconnection subnet has four or more assignable IP addresses.

192.168.2.0/24

HA mode

Active-active

EIP

EIPs are automatically generated when you buy them. By default, a VPN gateway uses two EIPs. In this example, the EIPs are as follows:

  • Active EIP: 11.xx.xx.11
  • Active EIP 2: 11.xx.xx.12

VPN connection

Tunnel interface addresses under Connection 1's Configuration

The IP addresses are used to establish an IPsec tunnel between a VPN gateway and a customer gateway. At the two ends of the IPsec tunnel, the configured local and remote tunnel interface addresses must be reversed.

  • Local tunnel interface address: 169.254.70.1/30
  • Customer tunnel interface address: 169.254.70.2/30

Tunnel interface addresses under Connection 2's Configuration
  • Local tunnel interface address: 169.254.71.1/30
  • Customer tunnel interface address: 169.254.71.2/30

On-premises data center

Subnet that needs to access the VPC

172.16.0.0/16

Customer gateway

Gateway IP address

The gateway IP address is assigned by a carrier. In this example, the gateway IP address is:

22.xx.xx.22

Operation Process

Figure 3 shows the process of using the VPN service to enable communication between an on-premises data center and a VPC.

Figure 3 Operation process
Table 2 Operation process description

No.

Step

Description

1

Step 1: Creating a VPN Gateway

Bind two EIPs to the VPN gateway.

If you have purchased EIPs, you can directly bind them to the VPN gateway.

2

Step 2: Creating a Customer Gateway

Configure the VPN device in the on-premises data center as the customer gateway.

3

Step 3: Creating VPN Connections
  • Create two VPN connections between the VPN gateway (active EIP and active EIP 2) and the customer gateway.
  • The connection mode, PSK, IKE policy, and IPsec policy settings of connection 2 must be the same as those of connection 1.

4

Step 4: Configuring the Customer Gateway Device
  • The local and remote tunnel interface addresses configured on the customer gateway device must be the same as the customer and local tunnel interface addresses of the Huawei Cloud VPN connections, respectively.
  • The connection mode, PSK, IKE policy, and IPsec policy settings on the customer gateway device must be same as those of the Huawei Cloud VPN connections.

5

Step 5: Verifying Network Connectivity

Log in to an ECS and run the ping command to verify the network connectivity.
