Step 3: Associate a Resource with the Vault

If you have already associated servers, file systems, or disks when purchasing a vault, skip this step.

After a server backup vault, SFS Turbo backup vault, or disk backup vault is created, you can associate servers, file systems, or disks with the vault to back up these resources.

Prerequisites

  • A vault can be associated with a maximum of 256 resources.
  • The servers you plan to associate with a vault must have at least one disk attached.
  • The vault and the resources you plan to associate with it must be in the same region.
  • The total size of the resources to be associated cannot be greater than the vault capacity.
  • Resources can be associated only when they are in the statuses in the table below.
    Table 1 Resource statuses available for association

    Resource Type

    Status

    Cloud server

    Running or Stopped

    Cloud disk

    Available or In-use

    SFS Turbo file system

    Available

Procedure

  1. Log in to the CBR console.

    1. Log in to the management console.
    2. Click in the upper left corner and select a region.
    3. Click and choose Storage > Cloud Backup and Recovery. Select a backup type from the left navigation pane.

  2. On a backup page, locate the target vault and click Associate Server, Associate File System, or Associate Disk.
  3. In the resource list, select the resources you want to associate with the vault. After resources are selected, they are added to the list of selected resources. See Figure 1.

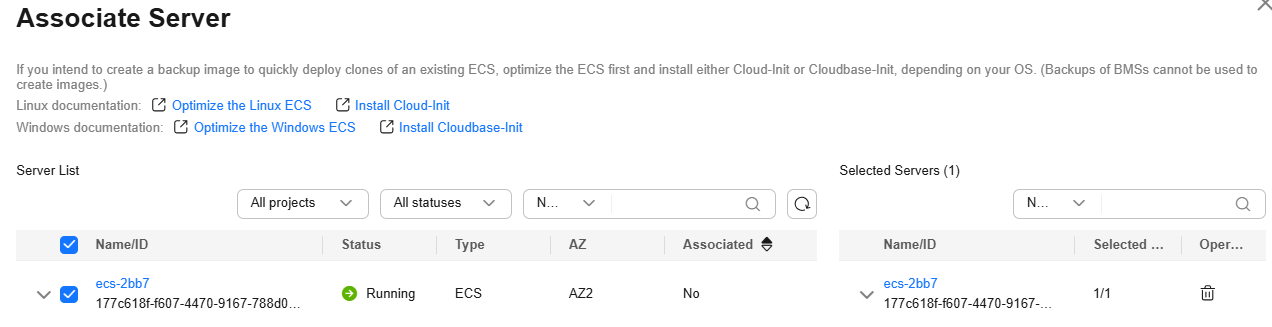

    Figure 1 Associate Server

  4. Click OK. Then on the Associated Servers tab page, you can view the number of resources that have been associated.

    After a new disk is added to the associated server, the system automatically identifies the new disk and backs up the new disk.
