Creating a Cloud Disk Backup

This section describes how to quickly create a cloud disk backup.

If the disk to be backed up is encrypted, the backup will also be automatically encrypted. The encryption attribute of backups cannot be changed.

Backing up a disk does not impact the disk performance. To ensure data integrity, you are advised to back up the disk during off-peak hours when no data is written to the disk.

Prerequisites

A disk can be backed up only when its status is Available or In-use. If you have performed operations such as expanding, attaching, detaching, or deleting a disk, refresh the page first to ensure that the operation is complete and then determine whether to back up the disk.

Procedure

  1. Log in to CBR Console.

    1. Log in to the management console.
    2. Click in the upper left corner and select your region and project.
    3. Click and choose Storage > Cloud Backup and Recovery. Select a backup type from the left navigation pane.

  2. On the Cloud Disk Backups page, click the Vaults tab and find the vault to which the disk is associated.
  3. Perform backup in either of the following ways:

    • Click Perform Backup in the Operation column. In the disk list, select the disk you want to back up. After a disk is selected, it is added to the list of selected disks. See Figure 1.

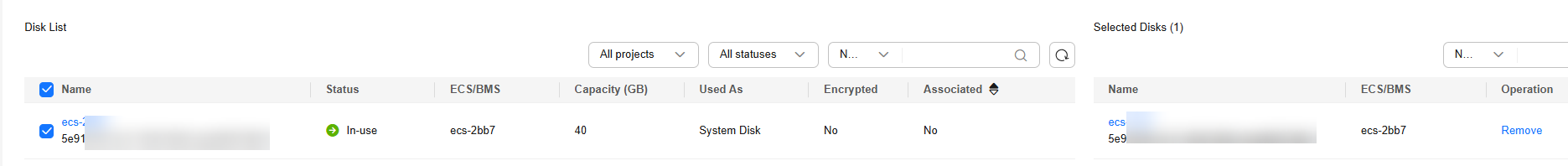

      Figure 1 Selecting the disk to be backed up

    • Click the vault name to go to the vault details page. On the Associated Disks tab page, locate the target disk and click Perform Backup in the Operation column. See Figure 2.
      Figure 2 Perform Backup

    CBR will identify whether the selected disk is encrypted. If it is encrypted, the backups will be automatically encrypted.

  4. Set Name and Description for the backup. Table 1 describes the parameters.

    Table 1 Parameter description

    Parameter

    Description

    Remarks

    Name

    Name of the backup you are creating.

    A name must contain 1 to 64 characters including digits, letters, underscores (_), or hyphens (-).

    NOTE:

    You can also use the default name manualbk_xxxx.

    If multiple disks are to be backed up, the system automatically adds suffixes to their backup names, for example, backup-0001 and backup-0002.

    manualbk_d819

    Description

    Description of the backup.

    It cannot exceed 255 characters.

    --

  5. Choose whether to enable full backup. If full backup is enabled, CBR performs a full backup on every associated disk, which requires a larger capacity compared to an incremental backup. See Figure 3.

    Figure 3 Full Backup

  6. Click OK. CBR automatically creates a backup for the disk.

    On the Backups tab page, if the status of the backup is Available, the backup task is successful.

    If you delete data from the disk during the backup, the deleted data may fail to be backed up. Therefore, to ensure data integrity, delete the target data after the backup is complete, and then perform the backup.

    After the backup is complete, you can use the backup to restore disk data. For details, see Restoring Data Using a Cloud Disk Backup.
