Purchasing a Server Backup Vault

This section describes how to purchase a server backup vault.

Procedure

  1. Log in to CBR Console.

    1. Log in to the management console.
    2. Click in the upper left corner and select your region and project.
    3. Click and choose Storage > Cloud Backup and Recovery. Select a backup type from the left navigation pane.

  2. In the upper right corner of the page, click Buy Server Backup Vault.
  3. Select a protection type.

    • Backup: A server backup vault stores server backups.

  4. (Optional) In the server list, select the servers or disks you want to back up. After the servers or disks are selected, they are added to the list of selected servers. See Figure 1. You can also select specific disks on a server and associate them with the vault.

    To avoid data inconsistency after restoration, you are advised to back up the entire server.

    If you want to back up only some of the disks to reduce costs, ensure that the data on the backed up disks does not depend on the disks that are not backed up. Or, data inconsistency may occur.

    For example, the data of an Oracle database is scattered across different disks. If only some of the disks are backed up, restoration restores only the data of the disks that have been backed up, with data on the rest of the disks unchanged. As a result, the data may be inconsistent and the Oracle database may fail to start.

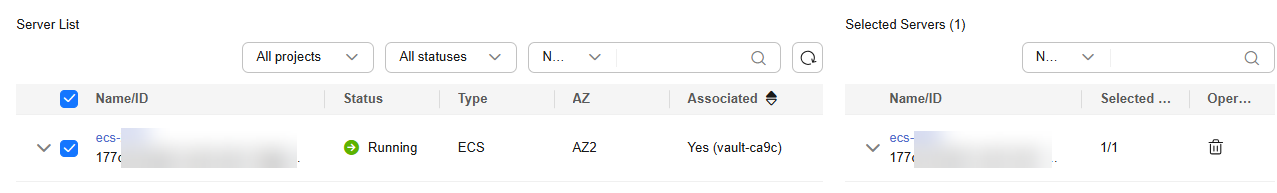

    Figure 1 Selecting servers

    • The selected servers must have not been associated with any vault and must be in the Running or Stopped state.
    • You can also associate servers with the vault you are creating later if you skip this step.

  5. Specify a vault capacity ranging from 10 GB to 10,485,760 GB. Properly plan the vault capacity, which must be at least the same as the size of the servers you want to back up. Also, if a backup policy is applied to the vault, more capacity is required.

    As the vault's used space grows, you can expand the vault capacity if it becomes insufficient.

  6. Configure auto backup.

    • If you select Configure, you must then select an existing backup policy or create a new policy. After the vault is created, CBR will apply the policy to this vault, and all servers associated with this vault will be automatically backed up based on this policy.
    • If you select Skip, servers associated with this vault will not be automatically backed up until you apply a backup policy to the vault.
    Figure 2 Configuring auto backup

  7. If you have subscribed to the Enterprise Project Management Service (EPS), add the vault to an existing enterprise project.

    EPS provides a unified method to manage cloud resources by project, allowing you to manage resources, users, and user groups in your projects. The default enterprise project is default.

    If the CBR FullAccess permissions have been assigned to IAM users, enterprise projects will not be displayed for you to choose from when you create a vault. Go to the Enterprise Project Management console and assign the CBR FullAccess permissions to the target user group.

  8. (Optional) Add tags to the vault.

    Tags are key-value pairs, which are used to identify, classify, and search for vaults. You can add a maximum of 10 tags for a vault, and vault tags are only used for vault search and management.

    Table 1 describes the parameters of a tag.
    Table 1 Tag parameter description

    Parameter

    Description

    Example Value

    Key

    Each tag has a unique key. You can customize a key or select the key of an existing tag created in TMS.

    A tag key:

    • Can contain 1 to 36 Unicode characters.
    • Can contain only letters, digits, hyphens (-), and underscores (_).

    Key_0001

    Value

    A tag value can be repetitive or left blank.

    A tag value:

    • Can contain 0 to 43 Unicode characters.
    • Can contain only letters, digits, hyphens (-), and underscores (_).

    Value_0001

  9. Specify a name for the vault.

    The name must contain 1 to 64 characters including digits, letters, underscores (_), or hyphens (-), for example, vault-f61e.

    You can also use the default name vault_xxxx.

  10. Complete the payment as prompted.
  11. Go back to the Cloud Server Backups page. You can see the created vault in the vault list.

    You can associate servers with the vault and perform backup for the servers. For details, see Vault Management.
