Accessing Huawei Cloud Through a VPC (Same Region and Same VPC)

Figure 1 shows how to use DRS to migrate data from an ECS database to a Huawei Cloud database in the same region and VPC on Huawei Cloud.

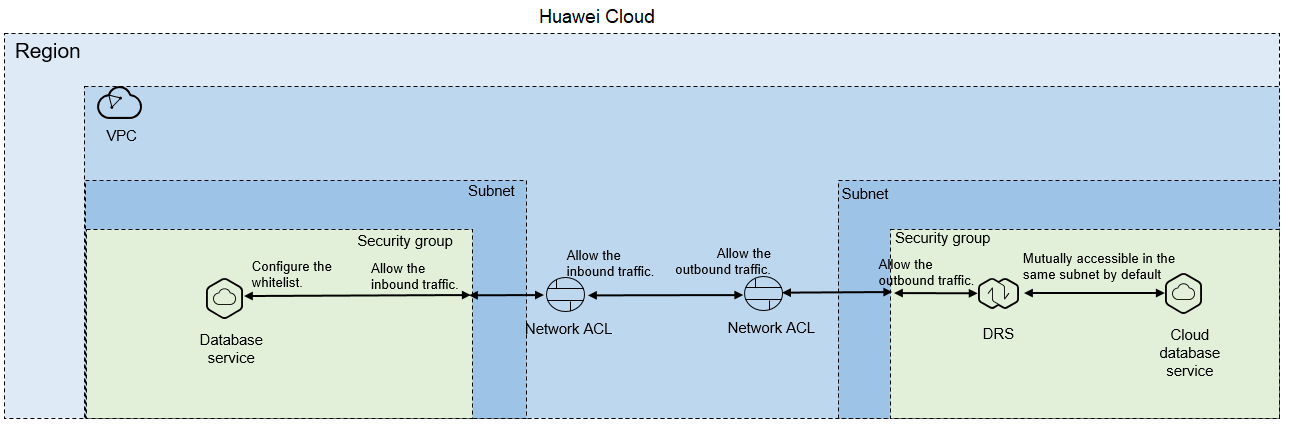

Figure 1 Network diagram

You can use an ECS database as the source. If the source and destination databases are in the same VPC and region and DRS uses the VPC network, ensure that the network ACL and security group associated with the source database allow inbound traffic from the DRS replication instance. In addition, add the IP address of the replication instance to the whitelist of the source database, and ensure that the network ACL and security group associated with the DRS replication instance allow outbound traffic. Figure 2 shows the process.

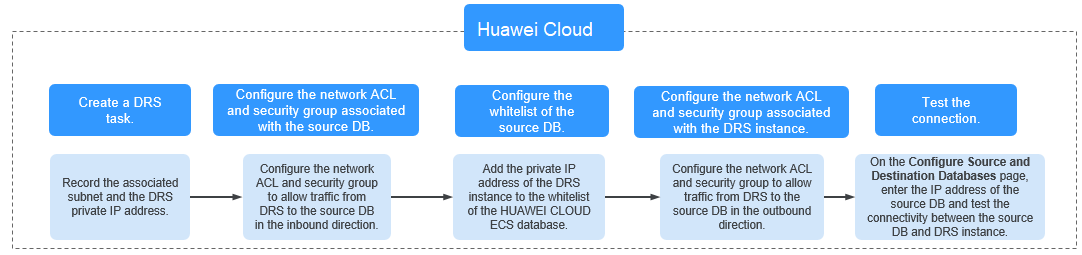

Figure 2 Flowchart

Network Configurations

  1. Create a DRS instance and obtain the private IP address of the DRS instance.

    After the DRS replication instance is created, the private IP address of the replication instance is displayed.

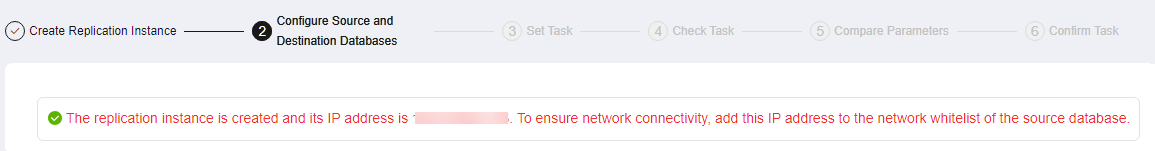

    Figure 3 Private IP address of the DRS instance

  2. Configure the network ACL associated with the security group and subnet of the source database.

    Security group: Add an inbound rule to allow traffic from the private IP address of the DRS replication instance to the database listening port.

    Network ACL: By default, a VPC does not have a network ACL. If you have a network ACL, add an inbound rule to allow traffic from the private IP address and random port of the DRS replication instance to the IP address and listening port of the source database.

  3. Configure the IP address whitelist for the ECS database.

    Add the private IP address of the DRS instance to the whitelist of the ECS database. The method for configuring the whitelist depends on the cloud database type. For details, see the official documents of the corresponding database.

  4. Configure the network ACL associated with the security group and subnet of the DRS replication instance.

    By default, a VPC does not have a network ACL, and the default security group rules allow all outbound traffic. The replication instance and destination RDS database in the same security group can communicate with each other by default, so you do not need to configure a network ACL.

    If you have configured a network ACL or security group, log in to the VPC management console and check the settings:

    Security group: Ensure that the outbound traffic from the DRS private network IP address to the IP address and listening port of the source database is allowed.

    Network ACL: Ensure that the outbound traffic from the DRS private network IP address and random port to the IP address and listening port of the source database is allowed.

  5. Test the connection.

    Log in to the DRS console, locate the created DRS task, and click Edit in the Operation column. On the Configure Source and Destination Databases page, enter the IP address, port, username, and password of the source database and then click Test Connection to check whether the connection is successful.
