Accessing Huawei Cloud Through a VPC (Same Region and Different VPCs)

Figure 1 shows how to use DRS to migrate data across databases in the same region but different VPCs on Huawei Cloud.

Figure 1 Network diagram

If you use DRS to access Huawei Cloud databases in a different VPC in the same region, create a VPC peering connection between the two VPCs. Ensure that the network ACL and security group associated with the source database allow inbound traffic, and the network ACL and security group associated with the replication instance allow the outbound traffic. If the source and destination databases are not in the same VPC, the CIDR blocks of the source and destination databases must be different. Figure 2 shows the process.

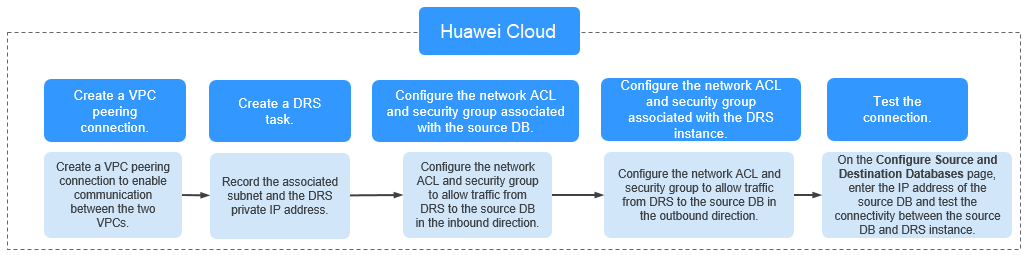

Figure 2 Flowchart

Network Configurations

Create a VPC peering connection.
For details, see Virtual Private Cloud User Guide.
Create a DRS instance and obtain the private IP address of the DRS instance.
After the DRS replication instance is created, the private IP address of the replication instance is displayed.

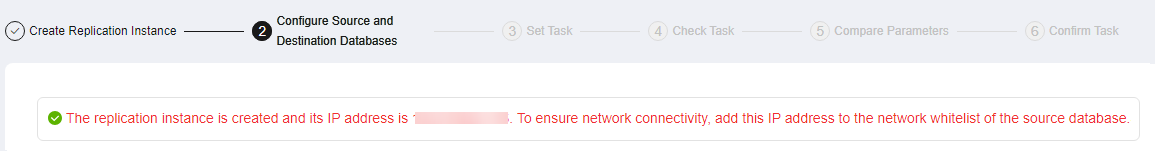

Figure 3 Private IP address of the DRS instance
Configure the network ACL associated with the security group and subnet of the source database.
Security group: Add an inbound rule to allow traffic from the private IP address of the DRS replication instance to the database listening port.

Network ACL: By default, a VPC does not have a network ACL. If you have a network ACL, add an inbound rule to allow traffic from the private IP address and random port of the DRS replication instance to the IP address and listening port of the source database.
Configure the network ACL associated with the security group and subnet of the DRS replication instance.
By default, a VPC does not have a network ACL, and the default security group rules allow all outbound traffic. The replication instance and destination RDS database in the same security group can communicate with each other by default, so you do not need to configure a network ACL.

If you have configured a network ACL or security group, log in to the VPC management console and check the settings:

Security group: Ensure that the outbound traffic from the DRS private network IP address to the IP address and listening port of the source database is allowed.

Network ACL: Ensure that the outbound traffic from the DRS private network IP address and random port to the IP address and listening port of the source database is allowed.
Test the connection.
Log in to the DRS console, locate the created DRS task, and click Edit in the Operation column. On the Configure Source and Destination Databases page, enter the IP address, port, username, and password of the source database and then click Test Connection to check whether the connection is successful.
