Overview of the DLI Permission System

DLI features two sets of permission systems. These two permission control mechanisms are used in conjunction, with their permissions overlapping and complementing each other to provide a more comprehensive level of access control.

**Table 1** DLI permission system types and descriptions
Type	Description	Reference
DLI permission management	DLI provides the capability to control resource permissions and resource operation permissions for IAM users, allowing different resources and operation permissions to be granted to various IAM users. For example, a specific IAM user can be granted permission only to query tables, while an administrator user may have multiple operational permissions such as querying tables, deleting tables, and accessing table metadata. Resource permission control: Various resources within DLI (such as elastic resource pools, queues, databases, and tables) can be configured with different access permissions. These permissions can be finely tuned down to specific read/write operations. For example, an IAM user can be granted the permission to display a table but not the permission to query it. Resource operation permission control: DLI also controls the operations that users are permitted to perform. For example, an IAM user might be allowed to query a table but not to add columns to it.	Overview
IAM permission management	IAM offers the capability for fine-grained permission management, allowing you to create and manage detailed permission policies. These policies can precisely define the operation permissions of users or user groups within DLI. For example, you can create a permission that allows the creation of DLI elastic resource pools, then bind this permission to a specific user group. As a result, all users added to that user group will have the permission to create elastic resource pools.	Overview

DLI permission management focuses on the fine-grained control over internal resources and operations within DLI, while IAM permission management emphasizes control from the perspective of identity authentication and global permission policies. By combining both, comprehensive permission management can be achieved, spanning from user identities to specific resource operations.

For example, if user A in group A is granted the permission to delete database resources, but other users in group A do not have this permission, then when granting permissions to group A through IAM, the dli:database:dropDatabase permission for deleting databases would not be included. However, using the table permission management provided by the DLI management console, you can precisely grant only user A the permission to delete databases.

This example illustrates that the scope of the DLI permission system and the IAM authorization system are clearly distinguished, ensuring that these two permission control mechanisms operate independently without interfering with each other.

DLI Permission Management in IAM Projects and IAM Permission Management in Enterprise Projects

This section introduces the role of DLI permission management in IAM projects, as well as IAM permission management in enterprise projects.

First, understand the differences between IAM projects and enterprise projects.

IAM project

IAM projects group and physically isolate resources in a region.

Huawei Cloud regions are default projects. Projects created in a region are subprojects of the region.

Figure 1 IAM project

DLI is a region- and project-level service. Therefore, DLI authorization is based on the region and project level.

DLI databases, tables, and enhanced datasource connections support both DLI project-level authorization and cross-tenant project authorization. Here, all projects refer to sub-projects under the current region.

Enterprise project

Enterprise projects group, manage, and logically isolate resources across different projects within an enterprise. Enterprise projects can include resources from multiple regions, and you can easily add and remove resources to and from these projects. They enable specific cloud resource authorizations.

Figure 2 IAM enterprise project

For example, adding an elastic resource pool to an enterprise project allows you to control user access so they can only use that particular elastic resource pool after granting permissions to the enterprise project.

If you have enabled Enterprise Management, you will no longer be able to create IAM projects.

Basic Principles for Permission Management

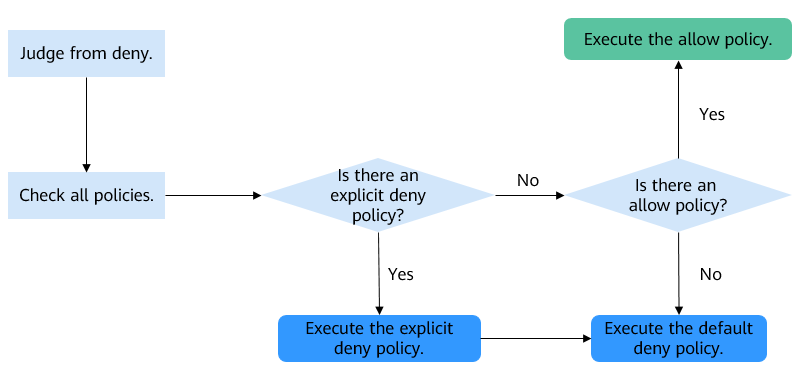

Priority principle: If there is an explicit denial (Deny) permission, the authorization result should be denied regardless of other permissions.
Default deny: If there is no explicit allowance (Allow) permission, the authorization result should still be denied even if there is no denial permission.
Explicit allowance: The authorization result is only allowed when there is an explicit allowance permission.

How Does the Access Mechanism Work When There Is a Conflict Between Two Permissions?

When no policy grants the Allow permission, the default condition is to have the Deny permission. The Allow permission can take effect only when there is a policy that grants the Allow permission and no other policies deny this permission.
For example, if an Allow permission for creating tables already exists in an IAM authentication policy for a specific database DB1, adding another Allow permission for creating views will stack upon the existing permissions, thereby expanding the user's privileges.

If a new policy is added with a Deny permission for adding or deleting databases, the user permissions will be adjusted according to the Deny precedence rule. Even if the operation permission to delete the database is granted through the DLI console, it will ultimately be overridden by the Deny precedence rule, denying the user the permission to delete the database.
Based on the principle of least privilege, Deny always takes precedence over Allow.
For example, if an IAM user is granted permission to create tables in database DB1 on the DLI console, but the dli:database:createTable Deny permission is added in the IAM authentication policy, meaning the user is prohibited from creating data tables, then the user will ultimately be unable to access those data tables.

Figure 3 Two permission mechanisms of DLI

Permission Management Methods Supported by Different DLI Resource Types

DLI SQL resources are resources that can be created using SQL statements, such as databases and tables. To use SQL resources, you need to have both SQL operation permissions and SQL resource permissions. The SQL operation permissions grant the relevant permissions for using the DLI APIs associated with this type of resource.

SQL resources: Metadata, databases, tables (including views), and columns.
Before submitting a DLI job, you must pre-grant IAM users the necessary permissions to access DLI metadata, databases, tables, and columns. This ensures that the job can smoothly access the required data and resources during execution.

Other DLI resources: Queues, elastic resource pools, jobs, global variables, packages, enhanced datasource connections, and datasource authentication.

**Table 2** Permission management methods supported by different DLI resource types
Resource Type	Authorization Type	Spark 2.x	Spark 3.3.x	HetuEngine 2.x
SQL resource	IAM fine-grained authorization (role or policy-based authorization)	Supported	Supported	Not supported
SQL resource	DLI resource authorization	Supported	Supported	DLI SQL resource authorization Authorization can be performed only on the DLI console or through APIs.
Other DLI resource	IAM fine-grained authorization (role or policy-based authorization)	Supported	Supported	Supported
Other DLI resource	DLI resource authorization	Supported	Supported	Supported
