Overview

As enterprise data is migrated to the cloud, data security and privacy protection are facing increasingly severe challenges. The encrypted database will solve the privacy protection issues in the entire data lifecycle, covering network transmission, data storage, and data running status. Furthermore, the encrypted database can implement data privacy permission separation in a cloud scenario, that is, separate data owners from data administrators in terms of the read permission. The encrypted equality query is used to solve equality query issues of ciphertext data.

Encryption Model

A fully-encrypted database uses a multi-level encryption model. The encryption model involves three objects: data, column key, and master key, which are described as follows:

  • Data, including:
    1. Data contained in the SQL syntax. For example, the INSERT...VALUES ('data') syntax contains 'data'.
    2. Query result returned from the database server, for example, the query result returned after the SELECT... syntax is executed.

    An encrypted database encrypts data of encrypted columns in the SQL syntax in the driver and decrypts the query result of the encrypted columns returned from the database server.

  • Column key: Data is encrypted by using column keys. The column keys are generated by the database driver or manually imported by users. The column key ciphertext is stored on the database server.
  • Master key: Column keys are encrypted by using master keys. The master keys are generated and stored by an external key manager. The database driver automatically accesses the external key manager to encrypt and decrypt column keys.

Overall Process

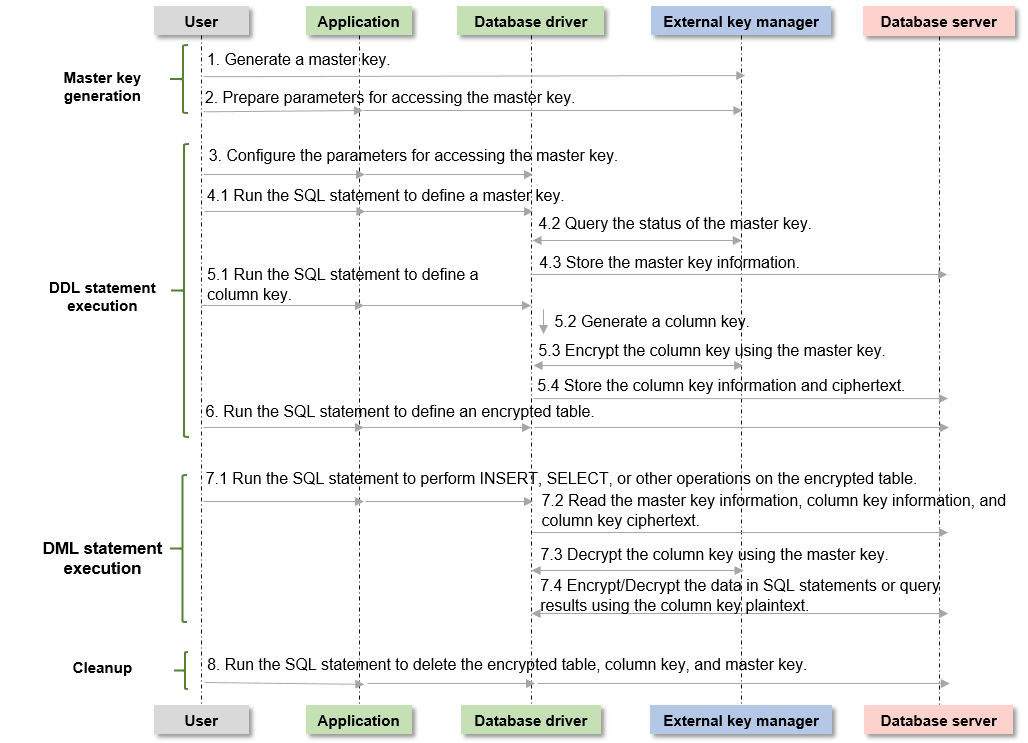

The process of using a fully-encrypted database consists of the following four phases. This section describes the overall process. Using gsql to Operate an Encrypted Database, Using JDBC to Operate an Encrypted Database, and Using Go Driver to Operate an Encrypted Database describe the detailed process.

1. Master key generation phase: First, you need to generate a master key in Huawei Cloud key management service. After the master key is generated, you need to prepare the parameters for accessing the master key.

2. DDL statement execution phase: In this phase, you can use the key syntax of the encrypted database to define the master key and column key in sequence, define the table, and specify a column in the table as an encrypted column. When defining the master key and column key, you need to access the master key generated in the previous phase.

3. DML statement execution phase: After an encrypted table is created, you can directly execute syntax including but not limited to INSERT, SELECT, UPDATE, and DELETE. The database driver automatically encrypts and decrypts data of the encrypted column based on the encryption definition in the previous phase.

4. Cleanup phase: Delete the encrypted table, column key, and master key in sequence.

Master Key Generation Phase

When you use an encrypted database for the first time, you need to use an external key manager to generate at least one master key. The operation procedure is as follows:
