Verifying Log Collection

Scenarios

This topic describes how to verify that non-Huawei Cloud logs can be forwarded to SecMaster.

Table 1 Verification scenario description

Scenario

Verification Method

Enabling SecMaster to collect logs on Huawei Cloud

Go to the Log Audit > Security Data page on the SecMaster console and check whether there are logs of cloud services with log access enabled.

Transferring logs from SecMaster to a third-party system or product

Go to the third-party system or product and check whether forwarded logs have been received successfully.

Ingesting third-party (non-Huawei Cloud) logs into SecMaster

Verify the log access by referring to this section.

Verifying Log Collection

  1. View data in the collection channel on the SecMaster console.

    1. Log in to the SecMaster console.
    2. Click in the upper left corner of the management console and select a region or project.
    3. Click in the upper left corner of the page and choose Security & Compliance > SecMaster.
    4. In the navigation pane on the left, choose Workspaces > Management. In the workspace list, click the name of the target workspace.
      Figure 1 Workspace management page
    5. In the navigation pane on the left, choose Log Audit > Collections. Then, select the Collection Channels tab.
      Figure 2 Accessing the Collection Channels tab
    6. On the Collection Channels tab, click the setting button in the upper right corner of the table and select Received and Sent.

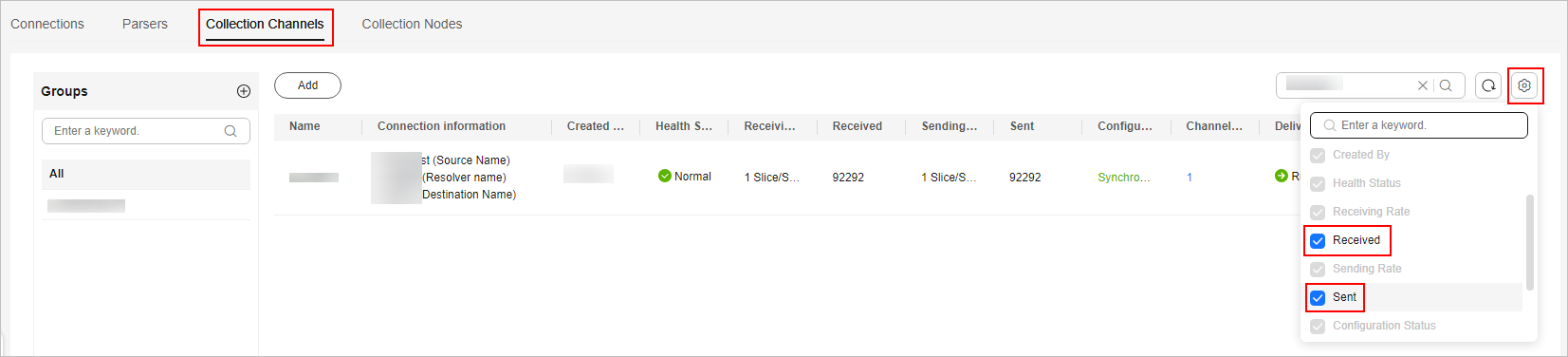

      Figure 3 Table parameters
    7. In the table, view the monitoring information of the corresponding collection channel. If there is data in the Received and Sent columns, the log access is successful.
      Figure 4 Viewing the log access status

  2. Check data in the security analysis log pipeline on the SecMaster console.

    1. In the navigation pane on the left, choose Log Audit > Security Data.
      Figure 5 Accessing the Security Analysis tab
    2. In the data space navigation tree on the left, click a data space name to show the pipeline list. Click the name of the target pipeline. The pipeline data search page is displayed on the right.

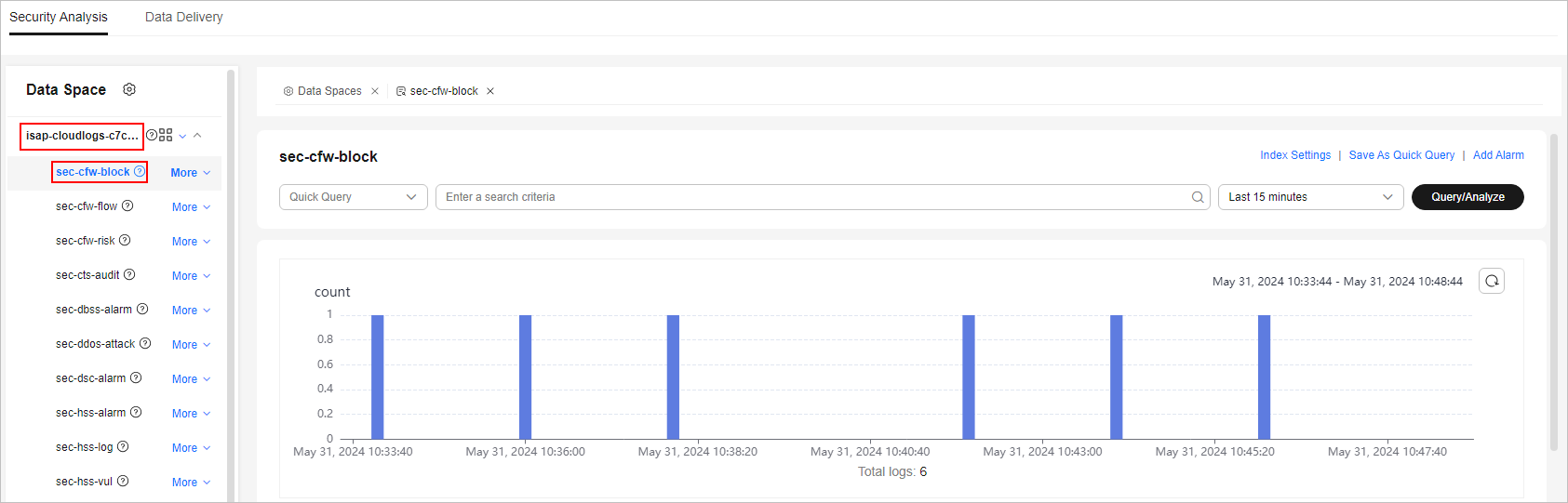

      Figure 6 Pipeline data page
    3. If data is displayed in the log pipeline, the log access is successful.

  3. View data in the security data table on the SecMaster console.

    1. In the navigation pane on the left, choose Log Audit > Security Data.
      Figure 7 Data Tables
    2. On the Tables page, click the name of the target index data table to go to the query and analysis page.
    3. If data is displayed on the data table query and analysis page, the log access is successful.

Parent topic: Log Data Collection
