USB Key Management

USB keys can only be issued to user accounts with USB key authentication enabled in multifactor verification.

Before using a USB key for second authentication, prepare USB keys and install the USB key driver on the local computer. A USB key from a vendor cannot be identified by other vendors for login authentication. So, the vendor must be specified for each USB key. For details, see Configuring USB Keys.

Prerequisites

You have obtained a USB key.
You have the management permissions for the User module.
You have the management permissions for the USBKey module.

Procedure

One USB key can be issued to one user only.

Log in to your bastion host.
Choose User > USBKey in the navigation pane.
Click Issue to issue a USB key.

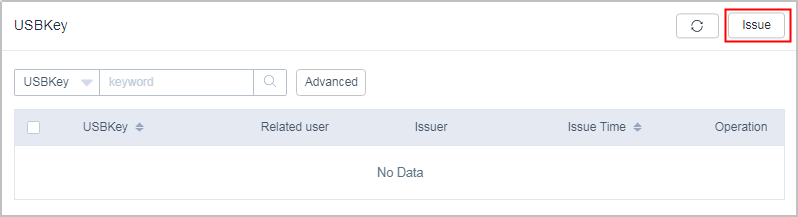

Figure 1 USBKey

Select a user with the USB key multifactor verification enabled as the related user.

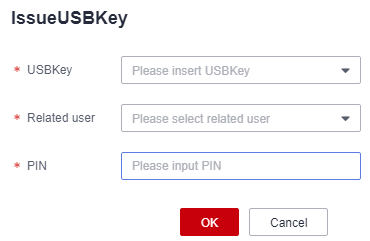

Figure 2 Issuing a USB key

**Table 1** Parameters for issuing a USB key
Parameter	Description
USBKey	Specifies the USB key ID.
Relate User	Specifies the user to which the USB key is related. USB key in multifactor verification must be enabled for such users.
PIN	Specifies the personal identification number (PIN) uniquely corresponding to the USB key. It is provided by the USB key vendor.

Click OK. You can then view the newly issued USB key in the USB key list.

When you log in to a bastion host as a related user, insert the issued USB key to the local host. The bastion host automatically identifies the USB key. So you can select the corresponding USB key on the login page and enter the PIN number to finish the authentication.

Revoking a USB Key

Log in to your bastion host.
Choose User > USBKey in the navigation pane.
In the Operation column of the row containing the USB key to be revoked, click Revoke.
To revoke multiple USB keys at a time, select the ones you want and click Revoke at the bottom of the USB key list to revoke the selected USB keys together.
