Cypher查询

操作场景

Cypher是一种声明式图查询语言,使用Cypher语句可以查询和修改GES中的数据,并返回结果。

操作步骤

  1. 进入图引擎编辑器页面,详细操作请参见访问图引擎编辑器
  2. Cypher查询编译过程中使用了基于label的点边索引。第一次使用Cypher查询,您需要单击结果展示区右上角的“建索引”(后续使用不用进行此操作)。

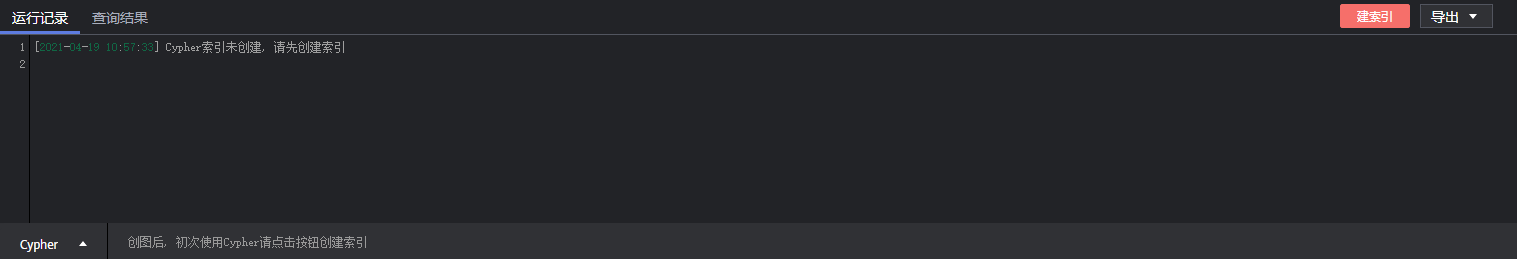

    图1 建索引

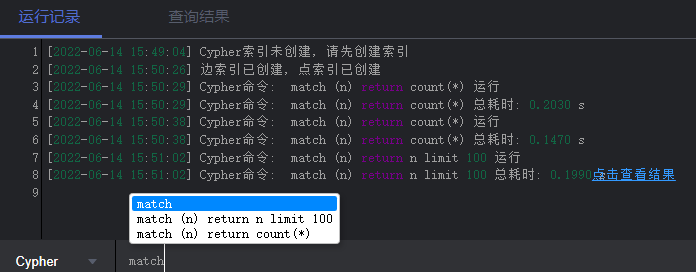

  3. 在图数据查询区,输入查询语句,按“回车”键执行操作。

    常用的查询语句如下表所示:

    • 点查询

      match (n:movie) return n :查询label为movie的点。

      match (n{Occupation:'artist'}) return id(n), n.Gender limit 100 :查询前100个属性Occupation为artist的点,返回其id以及属性值Gender。

      match (n) where id(n)='Vivian' return n :查询id为Vivian的点。

      match (n) return n skip 50 limit 100 :查询全图所有的点,跳过前50个,而后返回100个。

    • 边查询

      match (n)-[r]->(m) return r, n, m :查询所有的边,并返回边和边两端的点。

      match (n)-[r:rate]->(m) return r, n, m : 查询label为Rate的边。

      match (n)-[r:rate|:friends]-(m) where id(n)='Vivian' return n,r,m :查询起点为Vivian,边label为rate或friends的所有边。

    • 路径查询

      match p=(n:user)--(m1:user)--(m2:movie) return p limit 100:查询起点label为user,一跳终点为user,二跳终点为movie的路径,并返回前100条。

    • 分组聚集、去重

      match (n) return count(*) :查询全图点的数目。

      match (n:user) return n.Gender, count(n) :对label为user的点,统计不同Gender下各有多少点。

      match (n:user) return distinct n.Occupation :对label为user的点,拿到属性值Occupation,并去重。

    • 排序

      match (n:user) return id(n) as name order by name :查询label为user的点的id,命名为name,按照name排序。

    • 创建点

      create (n:movie{_ID_:'中国机长',ChineseTitle: '中国机长', Year:2019}) return n : 创建一个ID为“中国机长”, label为movie,属性值ChineseTitle为“中国机长”, Year为2019的点并返回。

      create (n:movie{_ID_:'中国机长',ChineseTitle: '中国机长', Year:2019})-[r:rate]-> (m:movie{_ID_:'攀登者',ChineseTitle: '攀登者', Year:2019}) return r :创建两个点,以及其关联的边。

    • 创建边

      match (n),(m) where id(n)= '中国机长' and id(m)= 'Lethal Weapon' create (n)-[r:rate]->(m) return r :给定两个id,创建一条label为rate的边(建议2.2.21及以上版本使用此查询)。

    • 更改属性

      match (n) where id(n)= '中国机长' set n.ChineseTitle= '《中国机长》' return n :查找id为“中国机长”的点,修改点的属性值ChineseTitle为“《中国机长》”。

    • 删除点

      match (n) where id(n)= '中国机长' delete n :查找id为“中国机长”的点,并删除。

      match (n) where id(n)= '中国机长' detach delete n :查找id为“中国机长”的点,删除点以及其关联的边。
