Tag-based Fine-Grained Authorization

Scenarios

After creating a custom policy for the SWR Enterprise Edition on the IAM console, you can add tags for namespaces and repositories. Use policies and tags together can implement fine-grained authorization on resources of the SWR Enterprise Edition, ensuring controllable and secure resource permissions.

Prerequisites

You have created namespace tags.

Procedure

Create one or more policies on the IAM console.

For example, you can create a policy named policy77r463. Table 1 describes the parameters.

**Table 1** Example policy configuration
Parameter	Description	Example Value
Policy type	You can select Allow or Deny.	Allow
Cloud services	Cloud services that the current policy will be applied to	SWR
Action	Actions that the current policy will be applied to. You can select one or more actions.	swr:repository:downloadArtifact
Resource type	You can select Specific or All. For details about specific resources, see Resource Type.	If you select Specific, click Specify resource path and configure the resource path *SWR:::repository:/{namespace-name}**.
Request condition	Tag of the current policy. A tag is a key-value pair. For details about request conditions, see Request Conditions.	This policy is created for SWR, so select Service-level condition keys for Condition Key. Configure the parameters as follows: TagKey: test Operator: StringEquals Value: aaa

The following policy is in JSON format:

{
    "Version": "1.1",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "swr:repository:downloadArtifact"
            ],
            "Resource": [
                "SWR:*:*:repository:*/{namespace-name}"
            ],
            "Condition": {
                "StringEquals": {
                    "g:ResourceTag/test": [
                        "aaa"
                    ]
                }
            }
        }
    ]
}

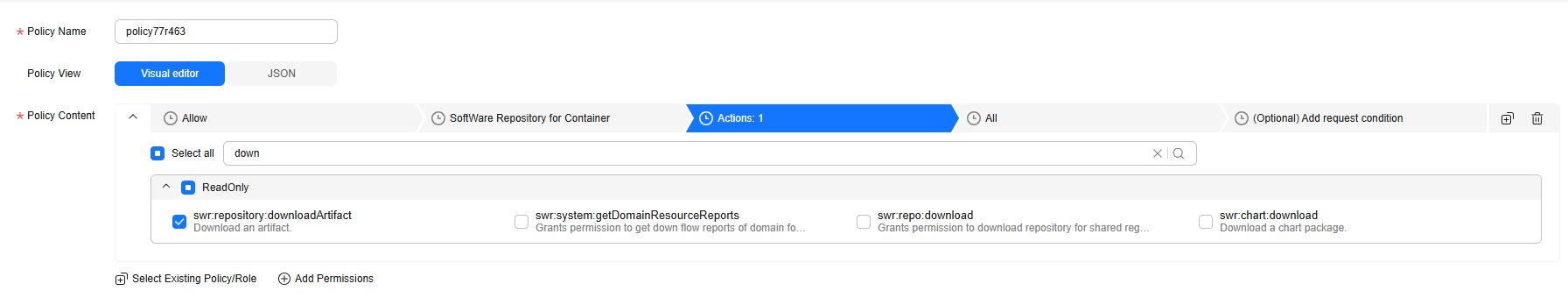

Figure 1 Creating a policy

This policy applies to SWR. You can attach this policy to a user or user group of this service. After the policy is applied, the user or user group can download the artifacts from a repository in the namespace-name namespace with the test=aaa tag.

If a user or user group wants to download an image from the image repository, SWR Enterprise Edition will extract the tag of the user or user group and verifies it with test=aaa. If the tag matches, the user or user group is allowed to perform the operation. Otherwise, the operation will fail.

Attach policy77r463 generated in 1 to a user or user group. For details, see Creating a User Group and Granting Permissions. Add the test=aaa tag to a namespace, for example, the {namespace-name} namespace. For details, see Adding a Tag to a Namespace.
Verify that the user or user group in 2 can download artifacts in the {namespace-name} namespace.
