Viewing Vulnerability Details
Scenario
This section describes how to view vulnerability details, including the vulnerability type distribution, vulnerability list, top assets affected by vulnerabilities, and vulnerability details.
Prerequisites
- You have installed HSS agent. For details, see the Host Security Service User Guide.
- HSS logs have been connected to SecMaster and the function of automatically converting logs into alerts has been enabled. For details, see Data Integration. If access to HSS vulnerability scan results has been enabled during data integration but the automatic alert conversion is disabled, the vulnerability scan results will not be displayed on the Vulnerabilities page in SecMaster.
Viewing Vulnerability Details
- Log in to the management console.
- Click
in the upper part of the page and choose Security > SecMaster.
- In the navigation pane on the left, choose Workspaces > Management. In the workspace list, click the name of the target workspace.
- In the navigation pane on the left, choose Risk Prevention > Vulnerabilities.

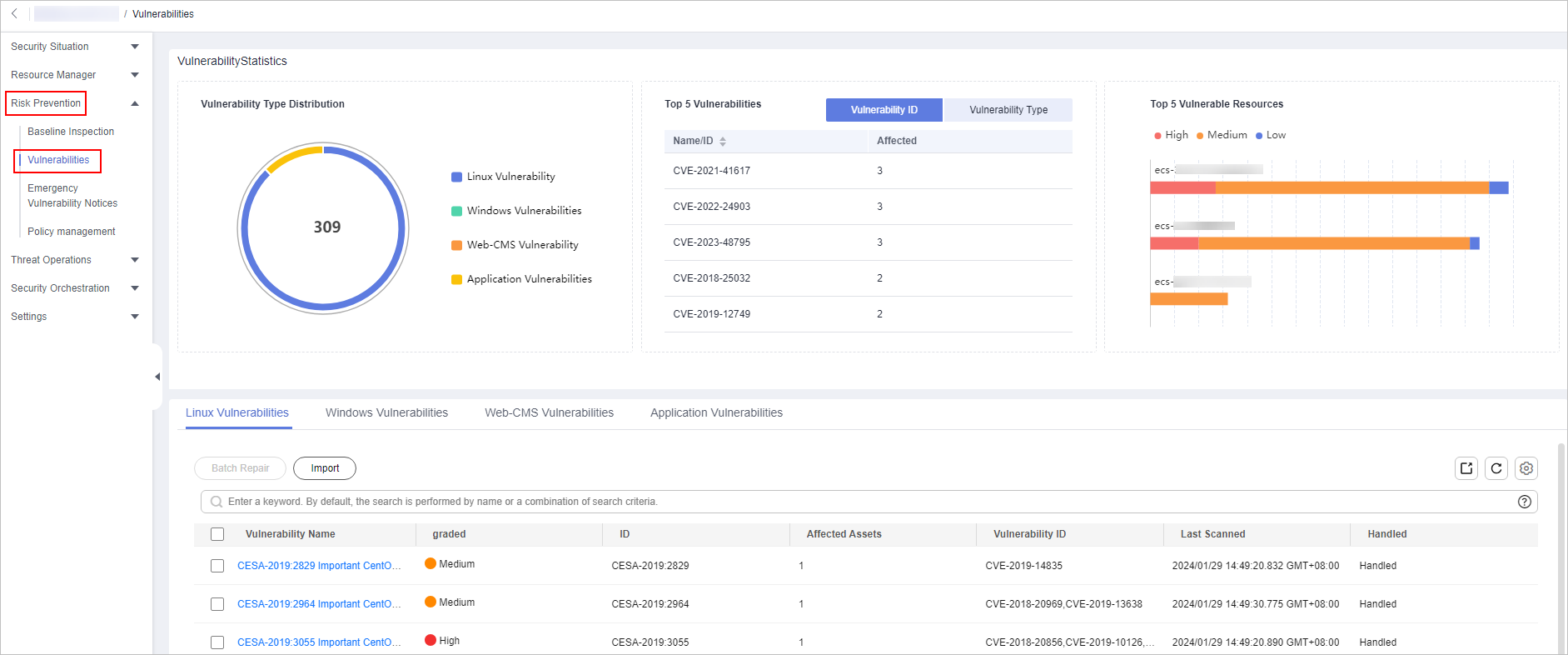

Figure 1 Accessing the Vulnerabilities page
- View vulnerability information on the Vulnerabilities page.
Table 1 Viewing vulnerability information Parameter
Description
Vulnerability Type Distribution
This graph displays the total number of vulnerabilities and the distribution of vulnerabilities by type.
By default, the system displays the distribution of five types of vulnerabilities: Linux, Windows, Web-CMS, application, and website vulnerabilities. For more details about vulnerabilities, see Overview.
Top 5 Vulnerabilities
The Top 5 Vulnerabilities area lists the five vulnerabilities with the most affected assets. The more affected assets, the higher the vulnerability ranking is.
- The Vulnerability ID tab displays the IDs and the affected asset quantity for the top 5 vulnerabilities.
- The Vulnerability Type tab displays the names, severity levels, and affected asset quantity for the top 5 vulnerabilities.
Top 5 Vulnerable Resources
This metric displays the five assets affected most by vulnerabilities. You can view the proportion of vulnerabilities of each severity for each risky asset in a bar chart.
Vulnerability List
- In the vulnerability list, click the tab of a vulnerability type (for example, Linux Vulnerabilities) to go to the corresponding page. For details about the vulnerability parameters, see Table 2.
- To view details about a vulnerability, click the vulnerability name and view the details on the page displayed on the right.
- You can view the total number of vulnerabilities below the vulnerability list. You can view a maximum of 10,000 vulnerability records page by page. To view more than 10,000 records, optimize the filter criteria.
Table 2 Vulnerability parameters Parameter
Description
Vulnerability Name
Name of the scanned vulnerability.
Click a vulnerability name to view vulnerability description and vulnerability library information.
Severity
Severity level of the vulnerability. There are four risk severity levels: high, medium, low, and informational.
Affected Assets
Total number of assets affected by a vulnerability.
Vulnerability ID
ID of a vulnerability.
Last Scanned
Time of the last scan
Handled
The status of the vulnerability. The value can be Handled or Unhandled.
