Creating Multi-Architecture Images
Scenarios
When images are required in the x86 and Arm architectures, and different image tags need to be set, you can create multi-architecture images and manage these images of the same tag using the docker manifest command.
Preparations
- Check the Docker version.
Ensure that you use Docker 19.03 or later that supports the manifest extension. Run the following command to view the version:
docker --version
- If your Docker version is earlier than 19.03, set the experimental environment variable.
Open the Docker daemon configuration file /etc/docker/daemon.json.
vim /etc/docker/daemon.json
Change the value of experimental to true. If this field does not exist, add it.
"experimental": true
Save the file and restart Docker to apply the modification.
sudo systemctl restart docker
- Check whether experimental Docker CLI features are enabled.
echo $DOCKER_CLI_EXPERIMENTAL
- If enabled is returned, experimental Docker CLI features are enabled.
- If disabled or no information is returned, experimental Docker CLI features are not enabled.
Procedure
- Build and push two images to the image repository by following the instructions in Creating a JDK8 Base Image and Pushing It to SWR.
docker push ${repository_url}/${organization}/${image_name}:${image_tag}-amd64
docker push ${repository_url}/${organization}/${image_name}:${image_tag}-arm64
- Build a manifest for the multi-architecture images.
- Create a manifest.
docker manifest create --amend --insecure ${repository_url}/${organization}/${image_name}:${image_tag} ${repository_url}/${organization}/${image_name}:${image_tag}-amd64 ${repository_url}/${organization}/${image_name}:${image_tag}-arm64
- Modify the manifest to add arch information.
docker manifest annotate ${repository_url}/${organization}/${image_name}:${image_tag} ${repository_url}/${organization}/${image_name}:${image_tag}-amd64 --arch amd64
docker manifest annotate ${repository_url}/${organization}/${image_name}:${image_tag} ${repository_url}/${organization}/${image_name}:${image_tag}-arm64 --arch arm64
- Create a manifest.
- Push the manifest.
docker manifest push ${repository_url}/${organization}/${image_name}:${image_tag}
Downloading an Image Across CPU Architectures

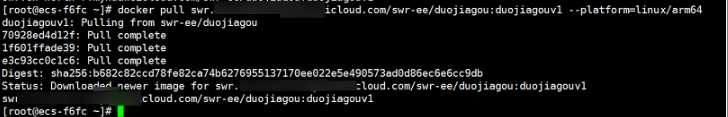

Use the --platform parameter to specify the architecture of the image to be pulled.
docker pull ${repository_url}/${organization}/${image_name}:${image_tag} --platform=linux/amd64
--platform parameter description:
- --platform=linux/amd64: Linux system of the x86_64 architecture
- --platform=linux/arm64: Linux system of the ARM64 architecture
