Conexão a uma instância de HTAP para consultas OLAP complexas

1. Log in to the management console.
2. Click in the upper left corner and select a region and project.
3. Click in the upper left corner of the page and choose Databases > TaurusDB.
4. On the Instances page, locate a TaurusDB instance and click its name to access the Basic Information page.
5. In the navigation pane, choose HTAP Analysis. On the displayed page, click Create HTAP Instance.
6. In the DB Instance Information area, check the current TaurusDB instance information.
   Figura 1 Checking TaurusDB instance information


7. Set parameters for the HTAP instance.

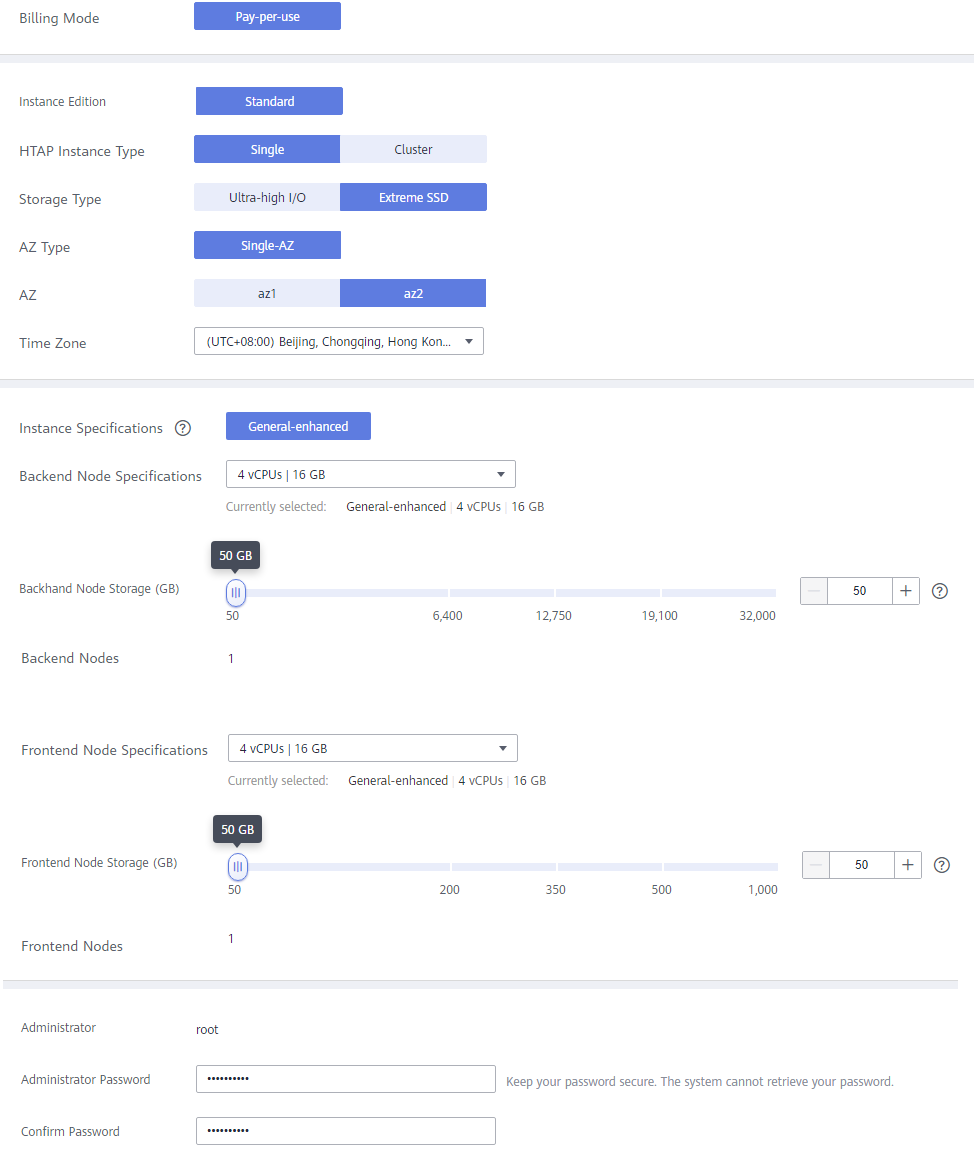

   Figura 2 Creating a standard HTAP instance


   Tabela 2 Parameter description

   Parameter	Description
   Billing Mode	Select Pay-per-use.
   HTAP Instance Type	Select Single or Cluster. Single: There is only one FE node and one BE node. It is used only for function experience and testing and does not ensure SLA. Cluster: There are at least three FE or BE nodes and at most 10 FE or BE nodes.
   Storage Type	Select Extreme SSD or Ultra-high I/O. Extreme SSD: uses a 25GE network and RDMA to provide you with up to 1 million random read/write performance per disk and low latency per channel. Ultra-high I/O: uses multi-disk striping to balance I/O loads among multiple disks, improving read/write bandwidth. The maximum throughput is 1.7 GB/s.
   AZ Type	Only single-AZ is available.
   AZ	Select an AZ as needed.
   Time Zone	Select a time zone for your instance based on the region hosting your instance. The time zone is selected during instance creation and cannot be changed after the instance is created.
   Instance Specifications	Only general-enhanced is available.
   Backend Node Specifications	Select the BE node specifications. The BE nodes are for data storage and SQL computing.
   Backend Node Storage (GB)	Select the storage for BE nodes. The default storage is 50 GB and can be expanded to up to 32,000 GB.
   Backend Nodes	A single-node instance has only one BE node. A cluster instance has 3 to 10 BE nodes. You can apply for a maximum of 10 nodes at a time.
   Frontend Node Specifications	Select the FE node specifications. The FE nodes manage metadata, manage client connections, and plan and schedule queries.
   Frontend Node Storage (GB)	Select the storage for FE nodes. The default storage is 50 GB and can be expanded to up to 1,000 GB.
   Frontend Nodes	A single-node instance has only one FE node. A cluster instance has 3 to 10 FE nodes. You can apply for a maximum of 10 nodes at a time.
   Administrator	The default username is root.
   Administrator Password	The password must consist of 8 to 32 characters and contain at least three types of the following characters: uppercase letters, lowercase letters, digits, and special characters (~!@#%^*-_=+?,()&$|.). Enter a strong password and periodically change it to improve security and defend against threats such as brute force cracking attempts.
   Confirm Password	Enter the administrator password again.

8. After configuration, click Next.
9. Confirm the configuration and click Submit.
10. On the HTAP instance list page, view and manage the HTAP instance.

1. On the Instances page, locate a TaurusDB instance and click its name to access the Basic Information page.
2. In the navigation pane, choose HTAP Analysis.
3. Click the name of an HTAP instance to access the Basic Information page.
4. In the navigation pane, choose Data Synchronization. On the displayed page, click Create Synchronization Task.
5. Configure required parameters.

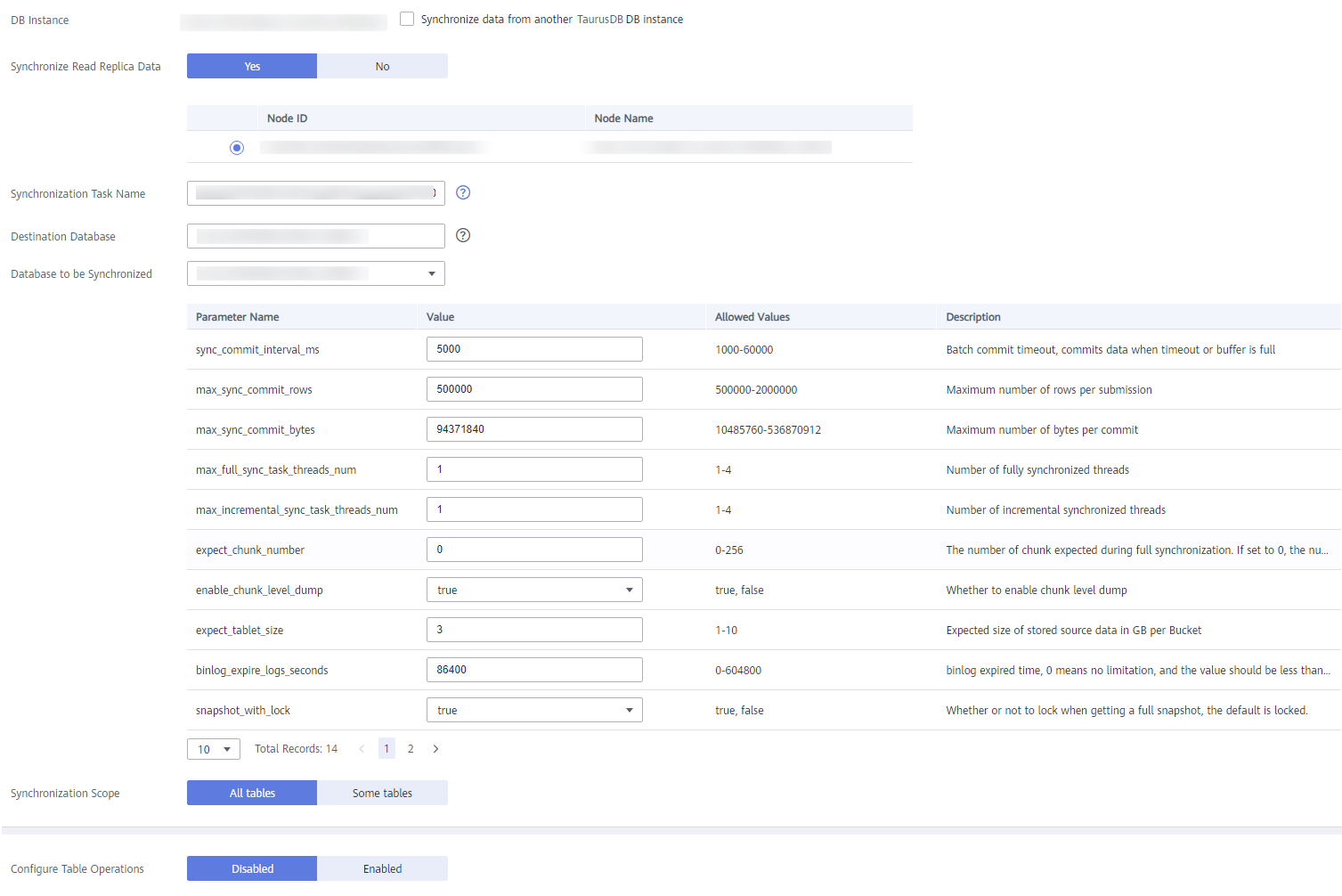

   Figura 3 Creating a synchronization task

   • Currently, the databases whose name is Chinese cannot be synchronized. The destination database and task name cannot contain Chinese characters, and the destination database name must contain at least three characters.
   • Synchronize Read Replica Data: Select Yes. You need to select a read replica. Full data is synchronized from the selected read replica, preventing query load on the primary node during a full synchronization. If there is only one read replica, this node is selected by default. During a full synchronization, ensure that the read replica is available, or the synchronization will fail and you will need to perform the synchronization again.
   • Synchronization Task Name: The name can contain 3 to 128 characters. Only letters, digits, underscores (_) are allowed.
   • Destination Database: The name can contain 3 to 128 characters. Only letters, digits, underscores (_) are allowed.
   • Database to be Synchronized: Select a database that the data will be synchronized to from the drop-down list. You can modify the database parameters as required.

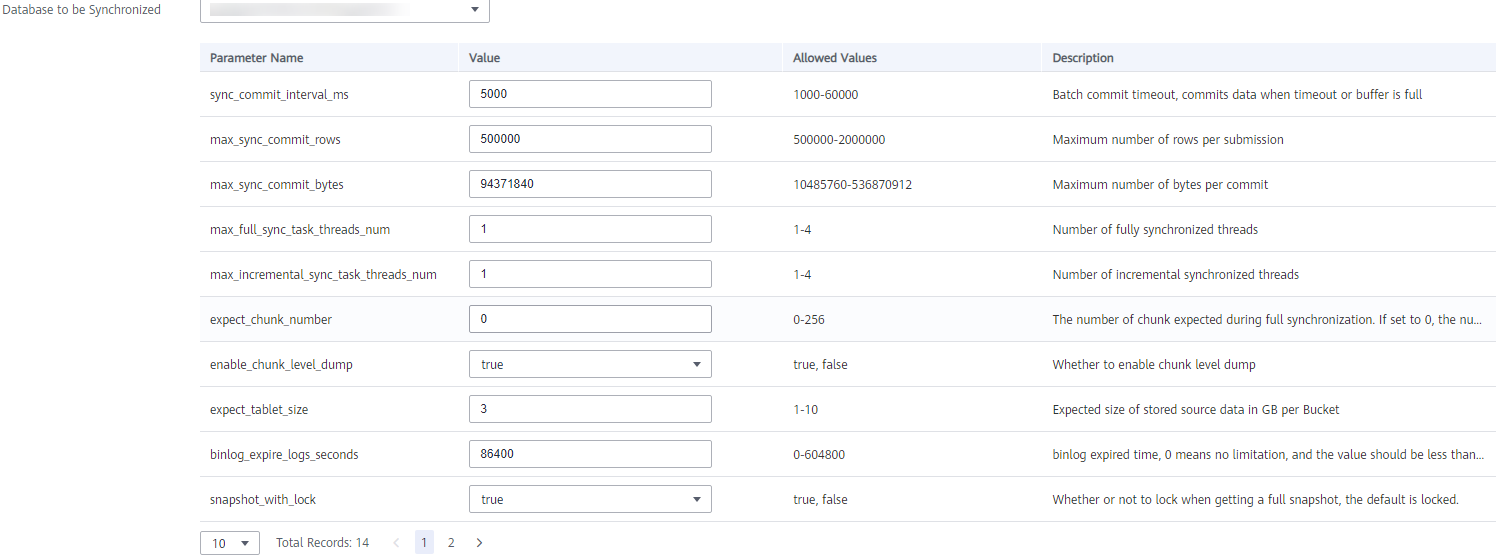

     Figura 4 Setting databases to be synchronized


   • Synchronization Scope: Select All Tables or Some Tables.

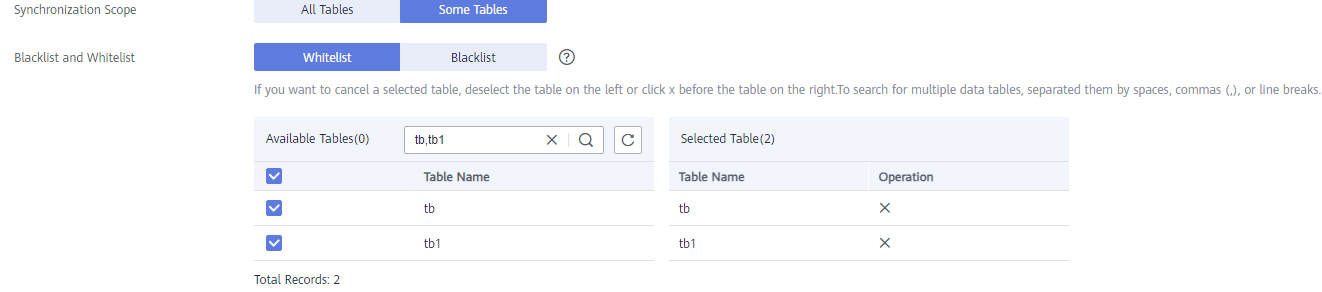

   • Blacklist and Whitelist: If Synchronization Scope is set to Some Tables, you need to configure tables for the blacklist or whitelist. Set the blacklist and whitelist for the selected tables.


     • You can set either a blacklist or a whitelist. If you select the whitelist, only the tables in the whitelist are synchronized.
     • The tables to be synchronized must contain primary keys or a non-empty unique key, or they cannot be synchronized to the HTAP instance.
     • Extra disk space may be used during backend data combination and query. You are advised to reserve 50% of the disk space for the system.
     • When setting the table blacklist or whitelist, you can enter multiple tables in the search box at a time. The tables can be separated by commas (,), spaces, or line breaks. After entering multiple tables, you need to click . These tables will be selected by default and displayed in the Selected Table area.



   • Configure Table Operations: Enable or disable it as required.
     • If you select Enabled:
       1. Select a synchronized table on the left and perform operations on its columns. The operations include order by, key columns, distributed by, partition by, data_model, buckets, replication_num, and enable_persistent_index. Multiple operations are separated by semicolons (;).
          For details about the syntax, see Tabela 3.

          Tabela 3 Operation syntax

          Operation Type	Syntax
          order by	order by (column1, column2) or order by column1,column2
          key columns	key columns (column1, column2) or key columns column1,column2
          distributed by	distributed by (column1, column2) buckets 3 NOTA: buckets is optional. If it is not set, the default value is used.
          partition by	There are expression partitions and list partitions. For details, see the partition syntax example.
          data_model	Specifies the table type. The value can be primary key, duplicate key, or unique key. Syntax: data_model=primary key, data_model=duplicate key, or data_model=unique key
          replication_num	replication_num=3 NOTA: The value cannot exceed the number of BE nodes, or the verification fails.
          enable_persistent_index	Specifies whether to make the index persistent. Syntax: enable_persistent_index=true or enable_persistent_index=false
          Combined scenario	data_model=duplicate key;key columns column1, column2;

          Partition syntax example:

          You only need to set a partition expression (time function expression or lis expression) when creating a table. During data import, an HTAP instance automatically creates partitions based on the data and the rule defined in the partition expression.

          Partitioning based on a time function expression: If data is often queried and managed based on a continuous date range, you only need to specify a partition column of the date type (DATE or DATETIME) and a partition granularity (year, month, day, or hour) in the time function expression. An HTAP instance automatically creates partitions and sets the start time and end time of the partitions based on the imported data and partition expression.

          Syntax:

          PARTITION BY expression
          ...
          [ PROPERTIES( 'partition_live_number' = 'xxx' ) ]

          expression ::=
              { date_trunc ( <time_unit> , <partition_column> ) |
                time_slice ( <partition_column> , INTERVAL <N> <time_unit> [ , boundary ] ) }

          Tabela 4 Parameter description

          Parameter	Mandatory	Description
          expression	Yes	Currently, only the date_trunc and time_slice functions are supported. If you use time_slice, you do not need to configure the boundary parameter because this parameter can only be set to floor by default.
          time_unit	Yes	Partition granularity. Currently, the value can only be hour, day, month, or year. If the partition granularity is hour, the partition columns can only be of the DATETIME type.
          partition_column	Yes	Partition column. Only the date type (DATE or DATETIME) is supported. If date_trunc is used, the partition column can be of the DATE or DATETIME type. If time_slice is used, the partition column can only be of the DATETIME type. The value of the partition column can be NULL. If the partition column is of the DATE type, the value range is from 0000-01-01 to 9999-12-31. If the partition column is of the DATETIME type, the value range is from 0000-01-01 01:01:01 to 9999-12-31 23:59:59. Currently, only one partition column can be specified.

          Example: If you often query data by day, you can use the partition expression date_trunc (), set the partition column to event_day, and set the partition granularity to day during table creation. In this way, data is automatically partitioned based on dates when being imported. Data of the same day is stored in the same partition. Partition pruning can significantly improve queries.

          CREATE TABLE site_access1 (
              event_day DATETIME NOT NULL,
              site_id INT DEFAULT '10',
              city_code VARCHAR(100),
              user_name VARCHAR(32) DEFAULT '',
              pv BIGINT DEFAULT '0'
          )
          DUPLICATE KEY(event_day, site_id, city_code, user_name)
          PARTITION BY date_trunc('day', event_day)
          DISTRIBUTED BY HASH(event_day, site_id);


          Partitioning based on the column expression: If you often query and manage data based on enumerated values, you only need to specify the column representing the type as the partition column. An HTAP instance automatically divides and creates partitions based on the partition column value of the imported data.

          Syntax:

          PARTITION BY expression
          ...
          [ PROPERTIES( 'partition_live_number' = 'xxx' ) ]

          expression ::=
              ( <partition_columns> )

          partition_columns ::=
              <column>, [ <column> [,...] ]

          Tabela 5 Parameter description

          Parameter	Mandatory	Description
          partition_columns	Yes	Partition columns. The value can be a Character (BINARY is not supported), Date, Integer, or Boolean value. The value cannot be NULL. After the import, a partition automatically created can contain only one value of each partition column. If multiple values of each partition column need to be contained, use list partitioning.

          Example: If you often query the equipment room billing details by date range and city, you can use a partition expression to specify the date and city as the partition columns when creating a table. In this way, data of the same date and city is grouped into the same partition, and partition pruning can be used to significantly accelerate queries.

          CREATE TABLE t_recharge_detail1 (
              id bigint,
              user_id bigint,
              recharge_money decimal(32,2),
              city varchar(20) not null,
              dt varchar(20) not null
          )
          DUPLICATE KEY(id)
          PARTITION BY (dt,city)
          DISTRIBUTED BY HASH(`id`);

          List partitioning

          Data is partitioned based on a list of enumerated values that you explicitly define. You need to explicitly list the enumerated values contained in each list partition, and the values do not need to be consecutive.

          List partitioning is suitable for storing columns where there are a small number of enumerated values and querying and managing data based on the enumerated values. For example, a column indicates a geographical location, status, or category. Each value of a column represents an independent category. Data is partitioned based on the enumerated values of columns to improve query performance and data management. List partitioning is especially suitable for scenarios where a partition needs to contain multiple values of each partition column. For example, the city column in a table indicates the city that an individual is from, and you often query and manage data by state and city. You can use the city column as the partition column for list partitioning when creating a table, and specify that data of multiple cities in the same state is stored in the same partition PARTITION pCalifornia VALUES IN ("Los Angeles","San Francisco","San Diego"), this feature accelerates queries and data management.



          Partitions must be created during table creation. Partitions cannot be automatically created during data import. If the table does not contain the partitions corresponding to the data, an error is reported.

          Syntax:

          PARTITION BY LIST (partition_columns)(
              PARTITION <partition_name> VALUES IN (value_list)
              [, ...]
          )

          partition_columns::=
              <column> [,<column> [, ...] ]

          value_list ::=
              value_item [, value_item [, ...] ]

          value_item ::=
              { <value> | ( <value> [, <value>, [, ...] ] ) }

          Tabela 6 Parameter description

          Parameter	Mandatory	Description
          partition_columns	Yes	Partition columns. The value can be a Character (except BINARY), Date (DATE and DATETIME), Integer, or Boolean value. The value cannot be NULL.
          partition_name	Yes	Partition name. You are advised to set proper partition names to distinguish data categories in different partitions.
          value_list	Yes	List of enumerated values of partition columns in a partition.

          Example 1: If you often query the equipment room billing details by state or city, you can specify the city column as the partition column and specify that the cities in each partition belong to the same state. In this way, you can quickly query data of a specific state or city and manage data by state or city.

          CREATE TABLE t_recharge_detail2 (
              id bigint,
              user_id bigint,
              recharge_money decimal(32,2),
              city varchar(20) not null,
              dt varchar(20) not null
          )
          DUPLICATE KEY(id)
          PARTITION BY LIST (city) (
          PARTITION pCalifornia VALUES IN ("Los Angeles","San Francisco","San Diego"), --: These cities belong to the same state.
             PARTITION pTexas VALUES IN ("Houston","Dallas","Austin")
          )
          DISTRIBUTED BY HASH(`id`);

          Example 2: If you often query the equipment room billing details by date range and state or city, you can specify the date and city as the partition columns when creating a table. In this way, data of a specific date and a specific state or city is grouped into the same partition, to accelerate queries and data management.

          CREATE TABLE t_recharge_detail4 (
              id bigint,
              user_id bigint,
              recharge_money decimal(32,2),
              city varchar(20) not null,
              dt varchar(20) not null
          ) ENGINE=OLAP
          DUPLICATE KEY(id)
          PARTITION BY LIST (dt,city) (
             PARTITION p202204_California VALUES IN (
                 ("2022-04-01", "Los Angeles"),
                 ("2022-04-01", "San Francisco"),
                 ("2022-04-02", "Los Angeles"),
                 ("2022-04-02", "San Francisco")
              ),
             PARTITION p202204_Texas VALUES IN (
                 ("2022-04-01", "Houston"),
                 ("2022-04-01", "Dallas"),
                 ("2022-04-02", "Houston"),
                 ("2022-04-02", "Dallas")
             )
          )
          DISTRIBUTED BY HASH(`id`);

       2. After entering the statement for performing column operations on the table, click Verify on the right of the area.
     • If you select Disabled, go to 6.
6. After the settings are complete, click Create Synchronization Task.
7. Confirm the settings and click Sync Now.


   If you click Previous on the page or click in the upper left corner of the page to return to the data synchronization page, a synchronization task will be generated. The status of the task is Synchronization Stage: Waiting for synchronization. To start the task, click Synchronize in the Operation column.

8. Click Back to Synchronization List to return to the data synchronization page. View details about the task name, source database, destination database, status, and operations.
   Figura 5 Viewing task status



   To synchronize data from a TaurusDB instance to a standard HTAP instance, you need to go through two stages: full synchronization and incremental synchronization.

   During full synchronization, there are certain constraints on the TaurusDB instance:

   • Before full synchronization, estimate the time required for data synchronization and adjust the retention period of TaurusDB binlogs accordingly. This prevents task failures caused by binlog position deletion during incremental synchronization. You are advised to set the binlog retention period to at least one day.
   • During full synchronization, do not perform DDL operations, especially time-consuming ones, on the source database. Otherwise, the task may be abnormal.
   • Keep the primary node and read replicas of the TaurusDB instance stable and avoid operations such as primary/standby switchovers and reboots. Otherwise, the task may be abnormal, or OLTP workloads may be affected due to heavy query load on the new primary node.
   • During full synchronization, keep OLAP instances stable and do not reboot them. Otherwise, the full synchronization task may restart.

   If the task status is Synchronization Stage: Incremental synchronization in progress, the full synchronization is complete and the incremental synchronization begins.

Para obter detalhes sobre como se conectar a uma instância de HTAP padrão e realizar consultas OLAP, consulte Conexão a uma instância padrão de HTAP por meio de JDBC.
