Recycle Bin Overview
What Is Recycle Bin?

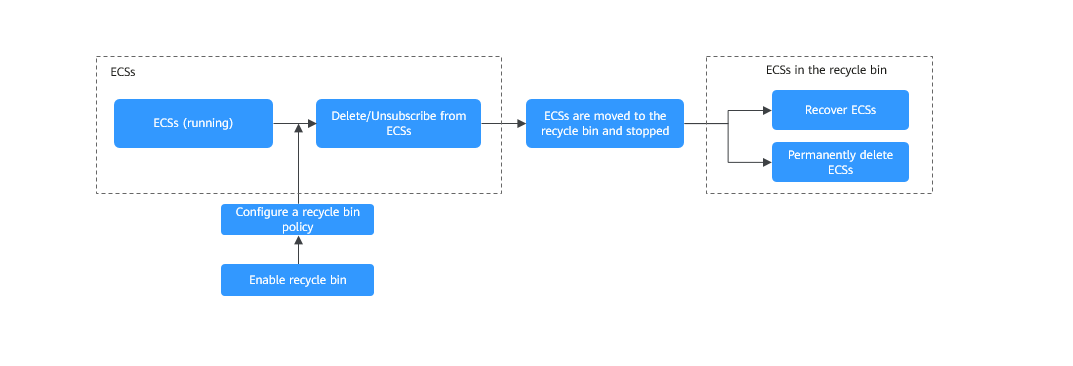

Recycle bin is a resource recovery feature that enables you to restore ECSs that have been deleted. When using recycle bin, if you delete pay-per-use ECSs or unsubscribe from unexpired yearly/monthly ECSs, they are retained in the recycle bin for a time period that you specify before being permanently deleted. This can help protect your ECSs from accidental deletions.
Constraints
- If an IAM user wants to use recycle bin, the user must have the following permissions:
- ecs:recycleBin:get: Query the recycle bin.
- ecs:recycleBin:update: Update (enable or disable) the recycle bin.
- ecs:recycleBin:updatePolicy: Update the recycle bin policy.
You can assign these permissions to the IAM user by referring to ECS Custom Policies.
- A deleted or unsubscribed ECS cannot be moved to the recycle bin if:
- Your account is in arrears, restricted, or frozen.
- The ECS is faulty.
- The number of days that has passed since the ECS was created is less than that specified in the recycle bin policy.
- The ECS is in the retention period.
- The ECS was deleted after the ECS retention period ends.
- A scheduled deletion time has been set for the ECS.
- The ECS is a spot ECS.
- Quota considerations:
- ECSs in the recycle bin still occupy the ECS resource quotas.
- If ECSs deployed on a DeH are moved to the recycle bin, they still occupy the DeH resource quotas.
If ECS quotas are insufficient, delete the ECSs from the recycle bin in a timely manner.
- When ECSs are used as compute resources for gPaaS & AI DaaS services, the ECSs that meet the recycle bin policy will be moved to the recycle bin. This may lead to the failure of clearing resources of gPaaS & AI DaaS services. In this case, you need to delete the ECSs from the recycle bin first.
Pricing
- After ECSs are moved to the recycle bin, they will be stopped and billed on a pay-per-use basis based on the billing rules in Table 1. (For more details, see Billing Mode Overview.)
Table 1 Billing for a stopped ECS Instance Type
Description
Billing Item
Billed or Not
Action on Resources
Common instances
Common instances include:- Non-bare-metal instance
- Instances without local disks
- Instances without FPGA cards
ECS (compute resources including vCPUs and memory)
No
- If ECSs are created from public resource pools, basic resources (vCPUs and memory) are no longer retained.
The ECS may fail to be started due to insufficient resources. Wait patiently and try again later.
- If ECSs are created on a DeH or in an edge AZ, basic resources (vCPUs and memory) will be retained.
No
Resources are retained but are not billed.
GPU
No
After GPU-accelerated ECSs without local disks attached are stopped, GPU resources are no longer retained.
EVS disks (system and data disks)
Yes
The resources are still billed based on the billing rules.
EIP bandwidth
Yes
The resources are still billed based on the billing rules.
- EIP bandwidth price: pay-per-use EIPs (by bandwidth)
- Shared bandwidth price
For details, see EIP Billing.
Special instances
ECS (compute resources including vCPUs and memory)
Yes
The ECS resources are still billed based on the billing rules.
To stop the billing, you need to delete the instance and its associated resources.
Yes
GPU
Yes
EVS disks (system and data disks)
Yes
EIP bandwidth
Yes
- If your account is in arrears, the ECSs kept in the recycle bin will enter a grace period and then a retention period. These ECSs may not be kept as long as the duration you specify in the recycle bin policy and may be deleted earlier.
- ECSs recovered from the recycle bin are billed on a pay-per-use basis. If you want to change the billing mode to yearly/monthly, see From Pay-per-Use to Yearly/Monthly.
Recycle Bin Policy Configuration Suggestions
When using ECS recycle bin, you need to configure a recycle bin policy. For details, see Configuring a Recycle Bin Policy.
A recycle bin policy includes:
- The minimum number of days that must have passed after an ECS was created (the minimum ECS age) before it can be moved to the recycle bin upon deletion or unsubscription
- A duration that deleted or unsubscribed ECSs can be kept in the recycle bin
This rule only applies to the ECSs that are moved to the recycle bin after the rule is set.
Both ECS and EVS support recycle bins. Their recycle bin policies are configured separately. If you enable recycle bin for both ECS and EVS, you are advised to configure the same minimum number of days for moving ECSs and EVS disks to the recycle bin upon deletion to avoid issues caused by different lifecycles.
In special cases, you may need to configure different recycle bin policies for ECS and EVS. For details, see Table 2.
Assume that an ECS (including system and data disks) was created 8 days ago. If you delete or unsubscribe from the ECS, the resources would be handled as follows.
Scenario |
Recycling Rule |
ECS |
EVS Disk |
---|---|---|---|
The minimum ECS age for moving to the recycle bin is less than that of EVS disks, for example:
|
Both ECSs and EVS disks comply with the ECS recycle bin policy. |
Moved to the recycle bin |
Moved to the recycle bin |
The minimum ECS age for moving to the recycle bin is greater than that of EVS disks, for example:
|
ECSs comply with the ECS recycle bin policy. EVS disks comply with the EVS recycle bin policy. |
Deleted or unsubscribed |
Moved to the recycle bin |
Associated Resource Recycling
After an ECS is moved to the recycle bin, its associated resources are handled as follows:
- Table 3 describes how EIPs bound to ECSs are handled.
Table 3 Handling of bound EIPs ECS Billing Mode
Operation
Moved to the Recycle Bin
After ECS Is Recovered
After ECS Is Permanently Deleted
Pay-per-use
Select Release the EIPs bound to the ECSs when deleting an ECS.
No
The EIP has been deleted and cannot be recovered.
The EIP has already been deleted.
Deselect Release the EIPs bound to the ECSs when deleting an ECS.
No
The EIP has been unbound from the ECS and will not be recovered.
The EIP has been unbound from the ECS and will not be deleted.
Yearly/Monthly
Unsubscribe from the EIP when unsubscribing from an ECS.
No
The EIP has been deleted and cannot be recovered.
The EIP has already been deleted.
Do not unsubscribe from the EIP when unsubscribing from an ECS.
No
The EIP has been unbound from the ECS and will not be recovered.
The EIP has been unbound from the ECS and will not be deleted.
- Table 4 describes how EVS disks attached to ECSs are handled.
Table 4 Handling of attached EVS disks ECS Billing Mode
Disk Type
Operation
Moved to the Recycle Bin
After ECS Is Recovered
After ECS Is Permanently Deleted
Pay-per-use
System disk
Select Delete all data disks attached to the ECSs when deleting an ECS.
Yes
The disk will also be recovered.
The disk will also be permanently deleted.
Deselect Delete all data disks attached to the ECSs when deleting an ECS.
Yes
The disk will also be recovered.
The disk will also be permanently deleted.
Exclusive data disk
Select Delete all data disks attached to the ECSs when deleting an ECS.
Yes
The disk will also be recovered.
The disk will also be permanently deleted.
Deselect Delete all data disks attached to the ECSs when deleting an ECS.
No
The disk will still be attached to the ECS, unless it is manually detached.
The disk has been detached from the ECS and will not be deleted.
Shared data disk
Select Delete all data disks attached to the ECSs when deleting an ECS.
No (when the shared disk is attached to multiple ECSs)
The disk will still be attached to the ECS, unless it is manually detached.
The disk has been detached from the ECS and will not be deleted.
Yes (when the shared disk is attached to only one ECS)
The disk will also be recovered.
The disk will also be permanently deleted.
Deselect Delete all data disks attached to the ECSs when deleting an ECS.
No
The disk will still be attached to the ECS, unless it is manually detached.
The disk has been detached from the ECS and will not be deleted.
Yearly/Monthly
System disk
Unsubscribe from an ECS.
Yes
The disk will also be recovered.
The disk will also be permanently deleted.
Exclusive data disk
Unsubscribe from an ECS with an exclusive data disk attached in the same order.
Yes
The disk will also be recovered.
The disk will also be permanently deleted.
Unsubscribe from an ECS with an exclusive data disk attached in another order.
No
The disk will still be attached to the ECS, unless it is manually detached.
The disk has been detached from the ECS and will not be deleted.
Shared data disk
Unsubscribe from an ECS with a shared data disk attached.
No
The disk will still be attached to the ECS, unless it is manually detached.
The disk has been detached from the ECS and will not be deleted.
- Table 5 describes how network interfaces attached to ECSs are handled.
Table 5 Handling of attached network interfaces Network Interface Type
Operation
Moved to the Recycle Bin
After ECS Is Recovered
After ECS Is Permanently Deleted
Primary network interface
Delete or unsubscribe from an ECS.
No
The network interface will still be attached to the ECS.
The network interface will also be permanently deleted.
Extension network interface
Delete or unsubscribe from an ECS.
No
The network interface will still be attached to the ECS, unless it is manually detached.
- The network interface will not be deleted if it is manually detached from the ECS.
- The network interface will also be permanently deleted if it is not manually detached from the ECS.
