How Do I Fix an Abnormal Container or Node Due to No Thin Pool Disk Space?

Problem Description

When the disk space of a thin pool on a node is about to be used up, the following exceptions occasionally occur:

Files or directories fail to be created in the container, the file system in the container is read-only, the node is tainted disk-pressure, or the node is unavailable.

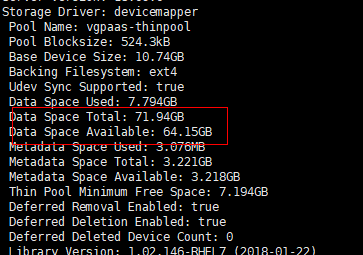

You can run the docker info command on the node to view the used and remaining thin pool space to locate the fault. The following figure is an example.

Possible Cause

When Docker device mapper is used, although you can configure the basesize parameter to limit the size of the /home directory of a single container (to 10 GB by default), all containers on the node still share the thin pool of the node for storage. They are not completely isolated. When the sum of the thin pool space used by certain containers reaches the upper limit, other containers cannot run properly.

In addition, after a file is deleted in the /home directory of the container, the thin pool space occupied by the file is not released immediately. Therefore, even if basesize is set to 10 GB, the thin pool space occupied by files keeps increasing until 10 GB when files are created in the container. The space released after file deletion will be reused only after a while. If the number of service containers on the node multiplied by basesize is greater than the thin pool space size of the node, there is a possibility that the thin pool space has been used up.

Solution

When the thin pool space of a node is used up, some services can be migrated to other nodes to quickly recover services. But you are advised to use the following solutions to resolve the root cause:

Solution 1:

Properly plan the service distribution and data plane disk space to avoid the scenario where the number of service containers multiplied by basesize is greater than the thin pool size of the node. To expand the thin pool size, perform the following steps:

1. Expand the capacity of a data disk on the EVS console. For details, see Expanding EVS Disk Capacity.

   Only the storage capacity of the EVS disk is expanded. You also need to perform the following steps to expand the capacity of the logical volume and file system.

2. Log in to the CCE console and click the cluster. In the navigation pane, choose Nodes. Click More > Sync Server Data in the row containing the target node.
3. Log in to the target node.
4. Run the lsblk command to check the block device information of the node.

   A data disk is divided depending on the container storage Rootfs:

   Overlayfs: No independent thin pool is allocated. Image data is stored in dockersys.

   1. Check the disk and partition sizes of the device.

      # lsblk
      NAME                MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
      vda                   8:0    0   50G  0 disk
      └─vda1                8:1    0   50G  0 part /
      vdb                   8:16   0  200G  0 disk      # Data disk has been expanded but not allocated
      ├─vgpaas-dockersys  253:0    0   90G  0 lvm  /var/lib/containerd          # Space used by the container engine
      └─vgpaas-kubernetes 253:1    0   10G  0 lvm  /mnt/paas/kubernetes/kubelet  # Space used by Kubernetes

   2. Expand the disk capacity.

      Add the new disk capacity to the dockersys logical volume used by the container engine.

      1. Expand the PV capacity so that LVM can identify the new EVS capacity. /dev/vdb specifies the physical volume where dockersys is located.

         pvresize /dev/vdb

         Information similar to the following is displayed:

         Physical volume "/dev/vdb" changed
         1 physical volume(s) resized or updated / 0 physical volume(s) not resized

      2. Expand 100% of the free capacity to the logical volume. vgpaas/dockersys specifies the logical volume used by the container engine.

         lvextend -l+100%FREE -n vgpaas/dockersys

         Information similar to the following is displayed:

         Size of logical volume vgpaas/dockersys changed from <90.00 GiB (23039 extents) to <190.00 GiB (48639 extents).
         Logical volume vgpaas/dockersys successfully resized.

      3. Adjust the size of the file system. /dev/vgpaas/dockersys specifies the file system path of the container engine.

         resize2fs /dev/vgpaas/dockersys

         Information similar to the following is displayed:

         Filesystem at /dev/vgpaas/dockersys is mounted on /var/lib/containerd; on-line resizing required
         old_desc_blocks = 12, new_desc_blocks = 24
         The filesystem on /dev/vgpaas/dockersys is now 49807360 (4k) blocks long.

   Devicemapper: A thin pool is allocated to store image data.

   1. Check the disk and partition sizes of the device.

      # lsblk
      NAME                                MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
      vda                                   8:0    0   50G  0 disk
      └─vda1                                8:1    0   50G  0 part /
      vdb                                   8:16   0  200G  0 disk
      ├─vgpaas-dockersys                  253:0    0   18G  0 lvm  /var/lib/docker
      ├─vgpaas-thinpool_tmeta             253:1    0    3G  0 lvm
      │ └─vgpaas-thinpool                 253:3    0   67G  0 lvm                   # Space used by thinpool
      │   ...
      ├─vgpaas-thinpool_tdata             253:2    0   67G  0 lvm
      │ └─vgpaas-thinpool                 253:3    0   67G  0 lvm
      │   ...
      └─vgpaas-kubernetes                 253:4    0   10G  0 lvm  /mnt/paas/kubernetes/kubelet

   2. Expand the disk capacity.

      Option 1: Add the new disk capacity to the thin pool disk.

      1. Expand the PV capacity so that LVM can identify the new EVS capacity. /dev/vdb specifies the physical volume where thinpool is located.

         pvresize /dev/vdb

         Information similar to the following is displayed:

         Physical volume "/dev/vdb" changed
         1 physical volume(s) resized or updated / 0 physical volume(s) not resized

      2. Expand 100% of the free capacity to the logical volume. vgpaas/thinpool specifies the logical volume used by the container engine.

         lvextend -l+100%FREE -n vgpaas/thinpool

         Information similar to the following is displayed:

         Size of logical volume vgpaas/thinpool changed from <67.00 GiB (23039 extents) to <167.00 GiB (48639 extents).
         Logical volume vgpaas/thinpool successfully resized.

      3. Do not need to adjust the size of the file system, because the thin pool is not mounted to any devices.

      Option 2: Add the new disk capacity to the dockersys disk.

      1. Expand the PV capacity so that LVM can identify the new EVS capacity. /dev/vdb specifies the physical volume where dockersys is located.

         pvresize /dev/vdb

         Information similar to the following is displayed:

         Physical volume "/dev/vdb" changed
         1 physical volume(s) resized or updated / 0 physical volume(s) not resized

      2. Expand 100% of the free capacity to the logical volume. vgpaas/dockersys specifies the logical volume used by the container engine.

         lvextend -l+100%FREE -n vgpaas/dockersys

         Information similar to the following is displayed:

         Size of logical volume vgpaas/dockersys changed from <18.00 GiB (7679 extents) to <118.00 GiB (33279 extents).
         Logical volume vgpaas/dockersys successfully resized.

      3. Adjust the size of the file system. /dev/vgpaas/dockersys specifies the file system path of the container engine.

         resize2fs /dev/vgpaas/dockersys

         Information similar to the following is displayed:

         Filesystem at /dev/vgpaas/dockersys is mounted on /var/lib/docker; on-line resizing required
         old_desc_blocks = 4, new_desc_blocks = 16
         The filesystem on /dev/vgpaas/dockersys is now 49807360 (4k) blocks long.

Solution 2:

Create and delete files in service containers in the local storage (such as emptyDir and hostPath) or cloud storage directory mounted to the container. Such files do not occupy the thin pool space.

Solution 3:

If the OS uses OverlayFS, services can be deployed on such nodes to prevent the problem that the disk space occupied by files created or deleted in the container is not released immediately.
