Updated on 2025-07-25 GMT+08:00

Batch Querying Instances

Function

This API is used to batch query instances.

Calling Method

For details, see Calling APIs.

URI

GET /v1/{project_id}/instances

Table 1 URI parameters

Parameter

Mandatory

Type

Description

project_id

Yes

String

Definition

The project ID.

Constraints

N/A

Range

The project ID of the account

Default Value

N/A

Table 2 Query parameters

Parameter

Mandatory

Type

Description

limit

No

String

Definition

Number of records on each page for pagination query.

Constraints

N/A

Range

The value range is from 10 to 1000. If this parameter is not set or is set to a value less than 10, the default value 10 is used. If the value is greater than 1000, the default value 1000 is used.

Default Value

1000

marker

No

String

Definition

Query address of the next page.

Constraints

N/A

Range

N/A

Default Value

N/A

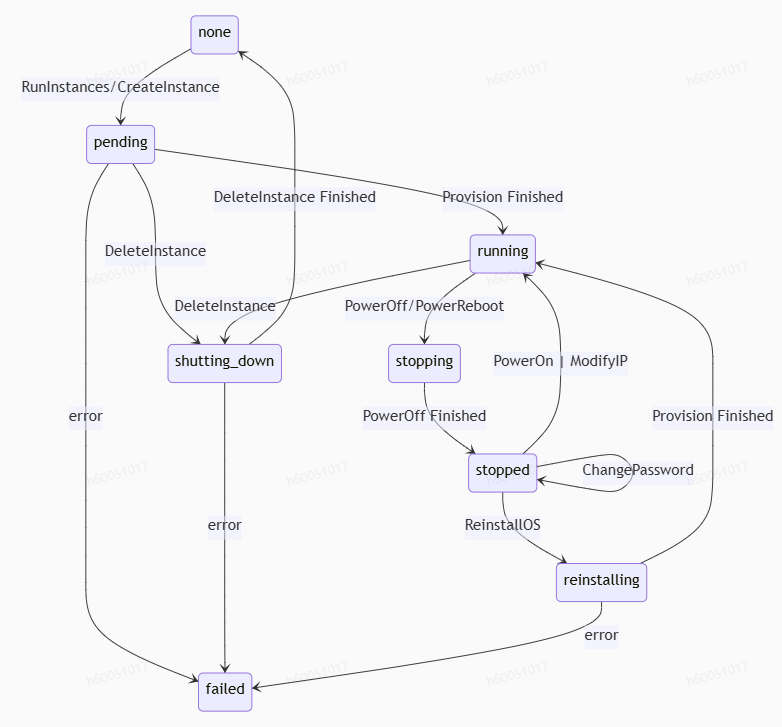

instance_state

No

String

Definition

Instance status.

Constraints

N/A

Range

  • pending: The instance is being started (resources are being allocated or the OS is being started).

  • running: The instance is running properly (can be connected through SSH or RDP).

  • stopping: The instance is being stopped (transiting to the stopped or hibernated state).

  • stopped: The instance is completely stopped (storage volumes are retained).

  • reinstalling: The OS is being reinstalled.

  • shutting-down: The instance is being terminated (being deleted).

  • terminated: The instance has been terminated (all resources are deleted and cannot be restored).

  • failed: The instance is in the failed state. You can only try to reinstall the OS. Other operations are not supported and related resources are cleared.

Default Value

N/A

instance_id

No

String

Definition

Instance IDs. The value can be an array consisting of multiple instance IDs.

Constraints

N/A

Range

A maximum of 100 IDs are supported. The IDs are separated by commas (,), for example, uuid1,uuid2,uuid3.

Default Value

N/A

server_id

No

String

Definition

Server IDs. The value can be an array consisting of multiple server IDs.

Constraints

This parameter is mutually exclusive with instance_id_set.

Range

A maximum of 100 IDs are supported. The IDs are separated by commas (,), for example, uuid1,uuid2,uuid3.

Default Value

N/A

Request Parameters

Table 3 Request header parameter

Parameter

Mandatory

Type

Description

X-Auth-Token

Yes

String

Definition

Requests for calling an API can be authenticated using a token. If token-based authentication is used, this parameter is mandatory and must be set to a user token.

Constraints

N/A

Range

N/A

Default Value

N/A

Response Parameters

Status code: 200

Table 4 Response body parameters

Parameter

Type

Description

instances

Array of QueryInstanceResponseBody objects

Instance list.

page_info

PageInfo object

Definition

Pagination information.

Constraints

N/A

count

Integer

The total number of instances.

Table 5 QueryInstanceResponseBody

Parameter

Type

Description

id

String

Definition

Instance ID.

Constraints

N/A

Range

N/A

Default Value

N/A

name

String

Definition

Instance name.

Constraints

N/A

Range

N/A

Default Value

N/A

vpc_id

String

Definition

ID of the VPC which the network interface to be created belongs to. You can query the ID using the VPC API: https://support.huaweicloud.com/intl/en-us/api-vpc/vpc_api01_0003.html

Constraints

N/A

Range

VPC ID

Default Value

N/A

network_interfaces

Array of NetworkInterface objects

Definition

Network interface information about an iMetal server.

Constraints

An iMetal server can contain a maximum of two network interfaces, and the first one serves as the primary network interface. If multiple network interfaces are specified, ensure that all network interfaces belong to the same VPC.

tags

Array of Tag objects

Definition

Tag.

Constraints

N/A


Image object

Definition

Server image information.

Constraints

N/A

description

String

Definition

Description of the cloud server.

Constraints

N/A

Range

N/A

Default Value

Empty string

state

String

Definition

Instance status.

Constraints

N/A

Range

  • pending: The instance is being started (resources are being allocated or the OS is being started).

  • running: The instance is running properly (can be connected through SSH or RDP).

  • stopping: The instance is being stopped (transiting to the stopped or hibernated state).

  • stopped: The instance is completely stopped (storage volumes are retained).

  • reinstalling: The OS is being reinstalled.

  • shutting-down: The instance is being terminated (being deleted).

  • terminated: The instance has been terminated (all resources are deleted and cannot be restored).

  • failed: The instance is in the failed state. You can only try to reinstall the OS. Other operations are not supported and related resources are cleared.

Default Value

N/A

metadata

Table 9 object

-

user_data

String

Definition

Custom user data to be injected into the instance during instance creation.

Constraints

N/A

Range

The content of user_data must be encoded with base64.

The maximum size of the content to be injected (before encoding) is 32 KB.

Default Value

N/A

server_id

String

Definition

Server ID.

Constraints

N/A

Range

Its value is in UUID format.

Default Value

N/A

created_at

String

Definition

Creation time.

Constraints

N/A

Range

The value is in RFC 3339 format, for example, 2025-04-22T12:03:18.50083+08:00.

Default Value

N/A

updated_at

String

Definition

Update time.

Constraints

N/A

Range

The value is in RFC 3339 format, for example, 2025-04-22T12:03:18.50083+08:00.

Default Value

N/A

launched_at

String

Definition

Start time.

Constraints

N/A

Range

The value is in RFC 3339 format, for example, 2025-04-22T12:03:18.50083+08:00.

Default Value

N/A

error

ErrorStatus object

Definition

Error object returned upon a failure.

Constraints

N/A

Table 6 NetworkInterface

Parameter

Type

Description

subnet_id

String

Definition

subnet id

Constraints

N/A

Range

N/A

Default Value

N/A

ipv4_address

String

Definition

Private IPv4 address of an elastic network interface.

Constraints

N/A

Range

N/A

Default Value

N/A

Table 7 Tag

Parameter

Type

Description

key

String

Definition

Tag key.

Constraints

N/A

Range

  • The value cannot be empty and cannot start or end with spaces. A maximum of 128 characters are supported.

  • The value can contain letters, digits, and spaces in UTF-8 format.

  • The value can contain the following special characters: _.:=+-@

  • The value cannot start with sys.

Default Value

N/A

value

String

Definition

Tag value.

Constraints

N/A

Range

  • The value can contain a maximum of 255 characters. It can be empty but cannot be the default.

  • The value can be letters, digits, and spaces in UTF-8 format.

  • The value can contain the following special characters: _.:/=+-@

Default Value

N/A

Table 8 Image

Parameter

Type

Description

id

String

Definition

Image ID.

Constraints

N/A

Range

The value is in UUID format.

Default Value

N/A

name

String

Definition

Image name.

Constraints

N/A

Range

N/A

Default Value

N/A

os_type

String

Definition

Image OS type.

Constraints

N/A

Range

  • Linux

  • Windows

  • Other

Default Value

N/A

Table 9 metadata

Parameter

Type

Description

{Custom key}

Map<String,String>

Definition

Metadata for creating an iMetal instance. You can use metadata to customize key-value pairs.

If the metadata contains sensitive data, take appropriate measures to protect the sensitive data, for example, controlling access permissions and encrypting the data.

Constraints

N/A

Range

A maximum of 10 key-value pairs can be injected.

A metadata key consists of 1 to 255 characters and contains only uppercase letters, lowercase letters, spaces, digits, hyphens (-), underscores (_), colons (:), and decimal points (.).

A metadata value consists of a maximum of 255 characters.

Default Value

N/A

Table 10 ErrorStatus

Parameter

Type

Description

error_code

String

Definition

Error code.

Constraints

N/A

Range

N/A

Default Value

N/A

error_msg

String

Definition

Error message.

Constraints

N/A

Range

N/A

Default Value

N/A

error_type

String

Definition

Error type.

Constraints

N/A

Range

  • create_instance_error: Instance creation error

  • delete_instance_error: Instance deletion error

  • reinstall_error: OS reinstallation error

  • modify_ip_error: IP address change error

  • verify_server_error: Server verification error

  • delete_server_error: Server deletion exception

Default Value

N/A

Table 11 PageInfo

Parameter

Type

Description

next_marker

String

Definition

Query address of the next page.

Constraints

N/A

Range

N/A

Default Value

N/A

previous_marker

String

Definition

Query address of the previous page.

Constraints

N/A

Range

N/A

Default Value

N/A

current_count

Integer

Definition

The number of items returned on this page.

Constraints

N/A

Range

N/A

Default Value

N/A

Status code: 400

Table 12 Response body parameters

Parameter

Type

Description

error_code

String

Definition

Error code.

Constraints

N/A

Range

N/A

Default Value

N/A

error_msg

String

Definition

Error message.

Constraints

N/A

Range

N/A

Default Value

N/A

Status code: 401

Table 13 Response body parameters

Parameter

Type

Description

error_code

String

Definition

Error code.

Constraints

N/A

Range

N/A

Default Value

N/A

error_msg

String

Definition

Error message.

Constraints

N/A

Range

N/A

Default Value

N/A

Status code: 429

Table 14 Response body parameter

Parameter

Type

Description

-

String

-

Status code: 500

Table 15 Response body parameters

Parameter

Type

Description

error_code

String

Definition

Error code.

Constraints

N/A

Range

N/A

Default Value

N/A

error_msg

String

Definition

Error message.

Constraints

N/A

Range

N/A

Default Value

N/A

Example Requests

Request for batch querying instances

GET https://{endpoint}/v1/{project_id}/instances

Example Responses

Status code: 200

The instance list is displayed by page.

{
  "instances" : [ {
    "id" : "0195f996-79c5-7d34-a98e-3a96f7926d96",
    "name" : "host-0403-199",
    "vpc_id" : "31434907-0817-4acc-9a59-c44cf157303b",
    "network_interfaces" : [ {
      "subnet_id" : "",
      "ipv4_address" : "192.168.27.57"
    } ],
    "image" : {
      "id" : "e66a19b0-8c94-4b03-9f4d-4fbd676bcbf0",
      "name" : "test-lsy\nUbuntu 22.04 server 64bit",
      "os_type" : "Linux"
    },
    "description" : "",
    "state" : "terminated",
    "user_data" : "",
    "server_id" : "0195f996-79c5-7d34-a98e-3a96f7926d96",
    "created_at" : "",
    "updated_at" : "2025-07-11T17:07:05+08:00",
    "launched_at" : "2025-04-03T10:59:03+08:00",
    "error" : {
      "error_code" : "iMetal.0099",
      "error_msg" : "failed to reinstall os, create reinstall job on Jarvis failed",
      "error_type" : "reinstall_error"
    }
  } ],
  "page_info" : {
    "next_marker" : "01981672-2e82-7d8a-a315-3f686155a815",
    "previous_marker" : "",
    "current_count" : 92
  },
  "count" : 92
}

Status Codes

Status Code

Description

200

The instance list is displayed by page.

400

Invalid request parameter.

401

The request is not authenticated.

429

The request is overloaded.

500

Internal server error.

Error Codes

For details, see Error Codes.
