Operation Guide

Scenario

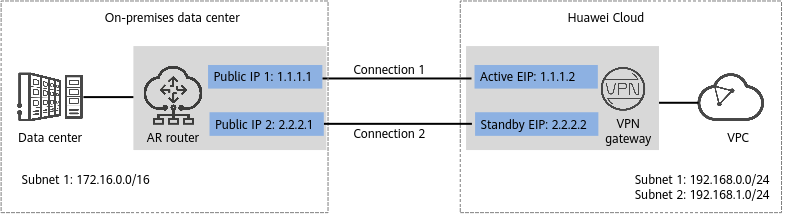

Figure 1 shows the typical networking where a Huawei Cloud VPN gateway connects to a Huawei access router (AR) in an on-premises data center in static routing mode.

Figure 1 Typical networking diagram
Click to enlarge

In this scenario, the AR router has two IP addresses, and the Huawei Cloud VPN gateway uses the active/standby mode. A total of two VPN connections need to be created between the active and standby EIPs of the VPN gateway and the two IP addresses of the AR router.

Limitations and Constraints

Huawei Cloud VPN and the AR router support different authentication and encryption algorithms. When creating connections, ensure that the policy settings at both ends are the same.

Data Plan

**Table 1** Data plan
Category	Item	Example Value for the AR Router	Example Value for the Huawei Cloud Side
VPC	Subnet	172.16.0.0/16	192.168.0.0/24 192.168.1.0/24
VPN gateway	Gateway IP address	Public IP address 1: 1.1.1.1 Public IP address 2: 2.2.2.1	Active EIP: 1.1.1.2 Standby EIP: 2.2.2.2
VPN gateway	Interconnection subnet	-	192.168.2.0/24
VPN connection	Tunnel interface addresses under Connection 1's Configuration	Local tunnel interface address: 169.254.70.1/30 Customer tunnel interface address: 169.254.70.2/30
	Tunnel interface addresses under Connection 2's Configuration	Local tunnel interface address: 169.254.71.1/30 Customer tunnel interface address: 169.254.71.2/30
	IKE policy	IKE version: IKEv2 Authentication algorithm: SHA2-256 Encryption algorithm: AES-128 DH algorithm: group 14 Lifetime (s): 86400 Local ID: IP address Peer ID: IP address
	IPsec policy	Authentication algorithm: SHA2-256 Encryption algorithm: AES-128 PFS: DH group 14 Transfer protocol: ESP Lifetime (s): 3600

Operation Process

Figure 2 shows the process of using the VPN service to enable communication between the data center and VPC.

Figure 2 Operation process
Click to enlarge

**Table 2** Operation process description
No.	Configuration Interface	Step	Description
1	Huawei Cloud console	Create a VPN gateway.	Bind two EIPs to the VPN gateway. If you have purchased EIPs, you can directly bind them to the VPN gateway.
2		Create customer gateways.	Create two customer gateways with their IP addresses set to the public IP addresses of the AR router.
3		Create VPN connections.	Create a total of two VPN connections between the active and standby EIPs of the VPN gateway and the customer gateways. It is recommended that the routing mode, PSK, IKE policy, and IPsec policy settings of the two connections be the same.
5	Command-line interface (CLI) of the AR router	Configure the AR router.	The local and remote interface addresses configured on the AR router must be the same as the customer and local interface addresses configured on the VPN console, respectively. The routing mode, PSK, IKE policy, and IPsec policy settings on the AR router must be same as those of VPN connections.
6	-	Verify network connectivity.	Run the ping command to verify network connectivity.
