Viewing a Trace

Scenarios

Once enabled, CTS starts recording operations on CCI resources. Operation records of the last seven days can be viewed on the CTS console.

Procedure

  1. Log in to the management console.
  2. Click in the upper left corner to select the desired region.
  3. Click Service List and choose Management & Governance > Cloud Trace Service.
  4. In the navigation pane, choose Trace List.
  5. Specify the filters used for querying traces. You can query traces using a combination of the following filters:

    • Trace Type, Trace Source, Resource Type, and Search By

      Select the desired filters from the drop-down lists. Select CCI from the Trace Source drop-down list.

      If you select Trace name for Search By, you need to select a trace name.

      If you select Resource ID for Search By, you need to select or enter a resource ID.

      If you select Resource name, you need to select a resource name.

    • Operator: Select an operator (a user not a tenant).
    • Trace Status: Available options include All trace statuses, Normal, Warning, and Incident. You can select only one of them.
    • Start time and end time: You can specify the time period in which to query traces.

  6. Click on the left of a trace to expand its details.

    Figure 1 Expanding trace details

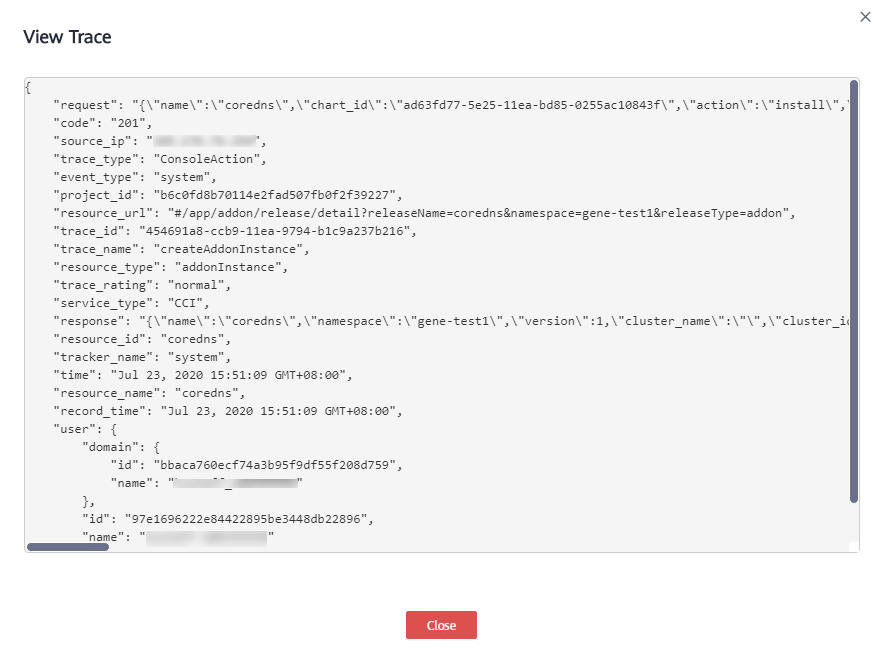

  7. Click View Trace in the Operation column. In the displayed dialog box shown in Figure 2, the trace structure details are displayed.

    Figure 2 Viewing a trace
