Viewing a VPC Topology

Scenarios

This section describes how to view the topology of a VPC. The topology displays the subnets in a VPC and the ECSs in the subnets.

Procedure

1. Log in to the management console.

2. Click in the upper left corner and select the desired region and project.
3. En la página principal de la consola, en Networking, haga clic en Virtual Private Cloud.
4. In the VPC list, click the name of the VPC for which the topology is to be viewed.

   The VPC details page is displayed.

5. Click the Topology tab to view the VPC topology.

   The topology displays the subnets in the VPC and the ECSs in the subnets.

   You can also perform the following operations on subnets and ECSs in the topology:

   • Modify or delete a subnet.
   • Add an ECS to a subnet, bind an EIP to the ECS, and change the security group of the ECS.

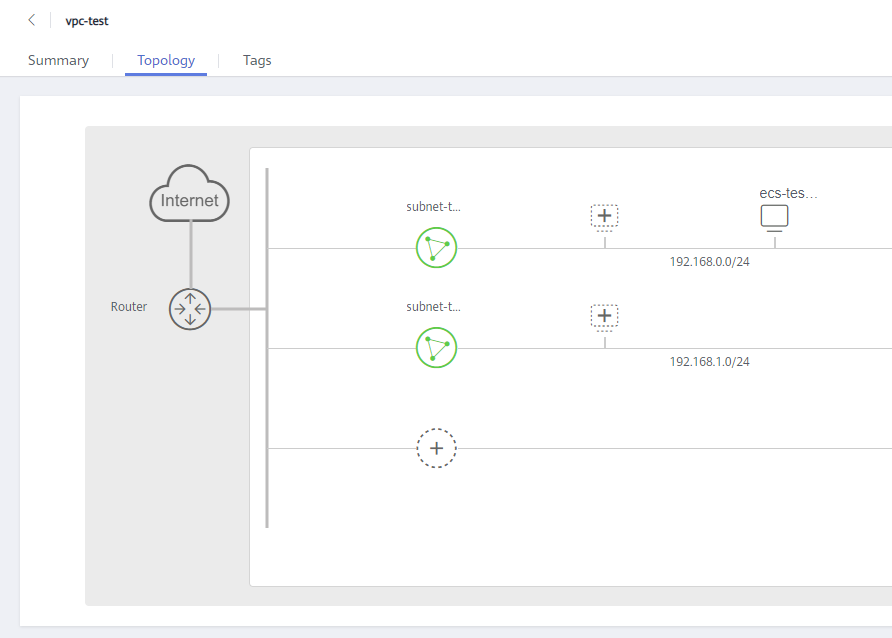

   Figura 1 VPC topology
