Service Mesh Proxies

sidecar-proxy
A proxy will be installed on the sidecar of each pod in the service mesh. iptables rules are configured for the network namespace of each pod to redirect the ingress traffic to and egress traffic from application services to the Envoy on the node for traffic routing.

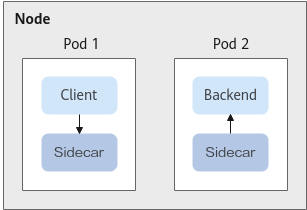

Figure 1 sidecar-proxy
node-proxy
A proxy will be installed on each node of a cluster added to the service mesh. iptables rules are configured on each node to redirect the ingress traffic to and egress traffic from application services to the Envoy on the node for traffic routing.

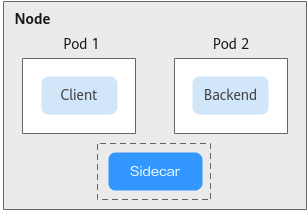

Figure 2 node-proxy

**Table 1** Proxy mode comparison
Proxy Mode	Features
sidecar-proxy	iptables rules used for independent network namespaces do not affect each other. High resource usage
node-proxy	Low resource usage Improved CPU utilization Optimized network connection and improved performance High availability (coming soon)
