Logging In to an OpenSearch Cluster Through OpenSearch Dashboards

Constraints Concerning the Use of OpenSearch Dashboards

You can customize the username, role name, and tenant name in OpenSearch Dashboards. Chinese characters are not allowed.

Logging In to an OpenSearch Cluster by Accessing OpenSearch Dashboards Through the Console

1. Log in to the CSS management console.
2. In the navigation pane on the left, choose Clusters > OpenSearch.
3. In the cluster list, find the target cluster, and click Dashboards in the Operation column to log in to OpenSearch Dashboards.
   • Non-security mode cluster: The OpenSearch Dashboards console is displayed.
   • Security-mode cluster: Enter the username and password on the login page and click Log In to go to the OpenSearch Dashboards console. The default username is admin and the password is the one specified during cluster creation.
4. After logging in, you can use OpenSearch Dashboards to manage the cluster.

Logging In to an OpenSearch Cluster by Accessing OpenSearch Dashboards Using a Public IP Address

• Only clusters in security mode support OpenSearch Dashboards access through a public IP address.

• The whitelist that controls OpenSearch Dashboards public network access depends on whitelist support by the ELB service. After you update the whitelist, the new settings take effect immediately for new connections. For existing persistent connections using the IP addresses that have been removed from the whitelist, the new settings take effect in approximately 1 minute after these connections are disconnected.
• If you disable OpenSearch Dashboards public network access and then re-enable it, the public IP address for accessing OpenSearch Dashboards may change. Exercise caution.

1. Log in to the CSS management console.
2. In the navigation pane on the left, choose Clusters > OpenSearch.
3. In the cluster list, click the name of the target cluster. The cluster information page is displayed.
4. Choose Cluster Access > Dashboards Public Network Access to check whether OpenSearch Dashboards public network access is enabled for the cluster.
   • Yes: Go to 6.
   • No: Go to the next step.
5. Enable OpenSearch Dashboards public network access for the OpenSearch cluster.
   1. On the Dashboards Public Network Access page, toggle on the Dashboards Public Network Access button.
   2. In the displayed dialog box, set the parameters.

      Table 2 Configuring public network access for OpenSearch Dashboards

      Parameter	Description
      Bandwidth	Bandwidth for accessing OpenSearch Dashboards from the public network. Value range: 1 Mbit/s to 200 Mbit/s
      Configure Whitelist	Control OpenSearch Dashboards public network access using a whitelist. If a whitelist is configured, only IP addresses that are on this whitelist can access the cluster's OpenSearch Dashboards over the public network. Click + Add. In the displayed text box, enter IP addresses or CIDR blocks that are allowed to access the cluster's OpenSearch Dashboards console from the public network. Separate them using commas (,). Each value must be unique. An example of valid values: 192.168.1.1,10.0.0.0/24. Examples of invalid values: 0.0.0.0, xx.xx.xx.x0, 172.16.0.0-172.16.255.255, non-standard formats (e.g., 192.168.1), and duplicate values. If no whitelist is configured, all public IP addresses can access the cluster's OpenSearch Dashboards console. However, this can be a security risk and should be avoided.

   3. Click OK to confirm the settings.

   If OpenSearch Dashboards public network access is already enabled, you can modify relevant settings.

6. After OpenSearch Dashboards public network access is enabled, obtain Dashboards Public IP Address on the Dashboards Public Network Access page.
   Figure 1 Obtaining the OpenSearch Dashboards public IP address

7. Enter the OpenSearch Dashboards public IP address in the browser address box to go to the OpenSearch Dashboards login page.

   Enter the username and password on the login page and click Log In to log in to the OpenSearch Dashboards console. The default username is admin and the password is the one specified during cluster creation.

8. After the login is successful, you can access the OpenSearch cluster through OpenSearch Dashboards.

Logging In to an OpenSearch Cluster by Accessing OpenSearch Dashboards Using a Private Network Address

The client that accesses OpenSearch Dashboards must be able to reach the private IP address of OpenSearch Dashboards.

1. Log in to the CSS management console.
2. In the navigation pane on the left, choose Clusters > OpenSearch.
3. In the cluster list, click the name of the target cluster. The cluster information page is displayed.

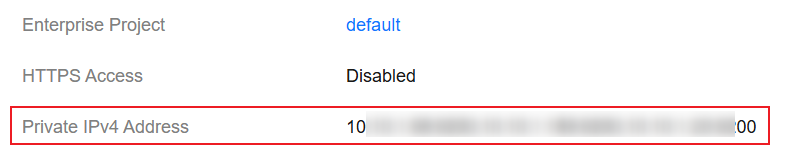

4. Click the Overview tab. In the Configuration area, record Private IPv4 Address.
   Figure 2 Obtaining the private IP address

5. Obtain the private IP address of OpenSearch Dashboards.

   By changing the port number in the cluster's private IP address from 9200 to 5601, you get the private IP address of OpenSearch Dashboards. For example, if the cluster's private IPv4 address is 192.168.0.***:9200, the private IP address of OpenSearch Dashboards is 192.168.0.***:5601.

6. (Optional) Configure a return route. To enable a client to access the cluster's OpenSearch Dashboards console across different networks, configure a route for the OpenSearch cluster.
   1. Connect the client and OpenSearch Dashboards through a Direct Connect or VPC peering connection.
   2. Configure the route connecting the OpenSearch cluster and the client.

      On the Cluster Information page, find Cluster Route, and click Add Route on the right. In the displayed dialog box, set IP Address and Subnet Mask.

   For details, see Configuring Routes for an OpenSearch Cluster.

7. On the client, enter the private network address of OpenSearch Dashboards (for example, https://192.168.0.xx:5601) to go to the OpenSearch Dashboards login page.
   • Non-security mode cluster: The OpenSearch Dashboards console is displayed.
   • Security-mode cluster: Enter the username and password on the login page and click Log In to go to the OpenSearch Dashboards console. The default username is admin and the password is the one specified during cluster creation.
8. After the login is successful, you can access the OpenSearch cluster through OpenSearch Dashboards.

Related Documents

• For how to use in-house developed OpenSearch Dashboards to access OpenSearch clusters in CSS, see How Do I Connect In-house Developed OpenSearch Dashboards to an OpenSearch Cluster in CSS?.
• For routine O&M tasks (such as shard adjustment, index management, and performance monitoring), you are advised to use Cerebro for cluster login. For details, see Logging In to an OpenSearch Cluster Through Cerebro.
