Overview

Resource Monitoring

Resource Monitoring displays real-time alarms of each resource group and cloud service. You can view resource alarms in different dimensions to efficiently manage resources.

The following describes how you can use Resource Monitoring.

• On the left of Resource Monitoring, you can view the health score of all resources, total number of resources, and total number of resources with alarms are displayed. You can also view the number of resources of different alarm severities.


  Health score = Number of resources that have no alarms generated/Total resources

• You can select a resource group to view resources added to it. You can click a service name to view the name, dimension, and alarms of each resource.
  Figure 1 Viewing service resource details

• When there are alarms generated, you can click on the left of the resource name to expand the alarm policies.
  Figure 2 Expanding an alarm policy

• To view details, click View Details.
  Figure 3 Viewing details

• In the lower part of Resource Monitoring, you can view monitoring details of key metrics recommended by different services. In the selection box in the upper right corner, you can select a resource dimension to display resource details or select another resource to view its monitoring details.
  Figure 4 Viewing key metric data

• You can customize key metrics, rollup method, and chart type to display by clicking in the upper right corner.

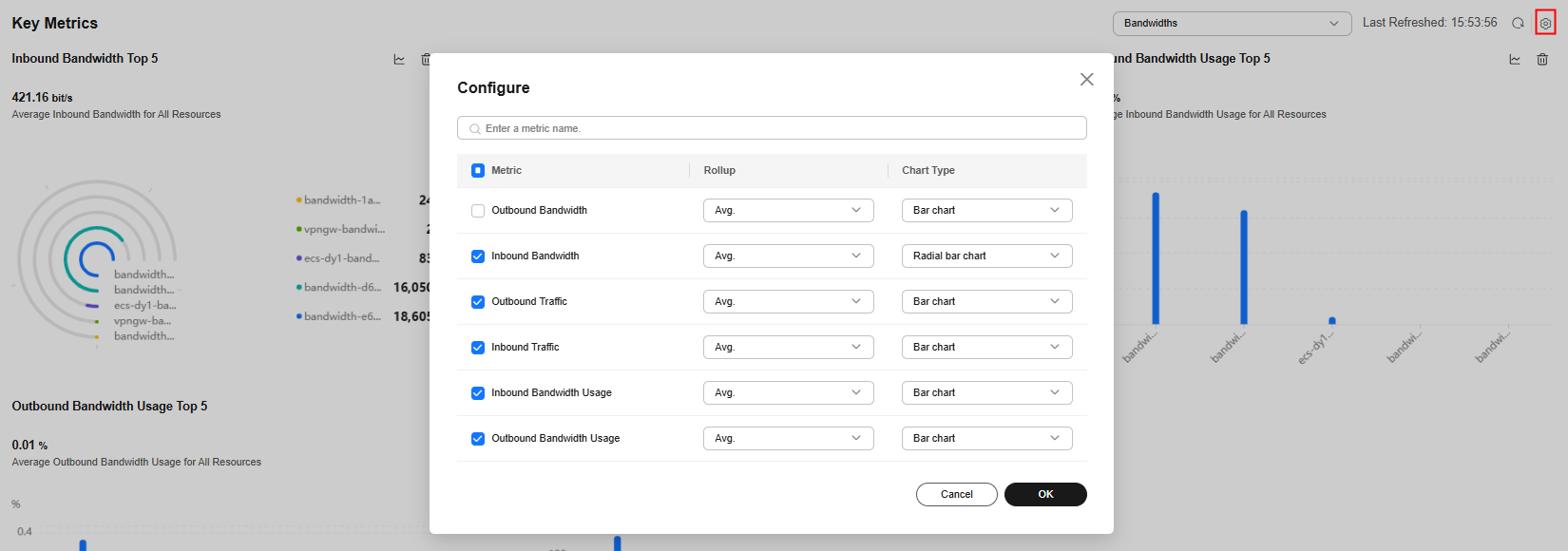

  Figure 5 Editing key metrics
