Creating an Alarm Template

Procedure

1. Log in to the management console.
2. Click on the left and choose Application > Application Performance Management.
3. In the navigation pane, choose Application Monitoring > Metrics.
4. In the tree on the left, click an application. The metric details page of the application is displayed.

5. Click the Alarm Templates tab.
   Figure 1 Creating an alarm template


6. Click Add Template to add an alarm template as prompted.
   1. Enter basic information.

      Template Name: Enter up to 64 characters. Only letters, digits, underscores (_), and hyphens (-) are allowed.

      Remarks: Enter up to 512 characters. Only letters, digits, underscores (_), and hyphens (-) are allowed.

   2. Click Add Alarm Policy to add an alarm policy.
      1. Basic information

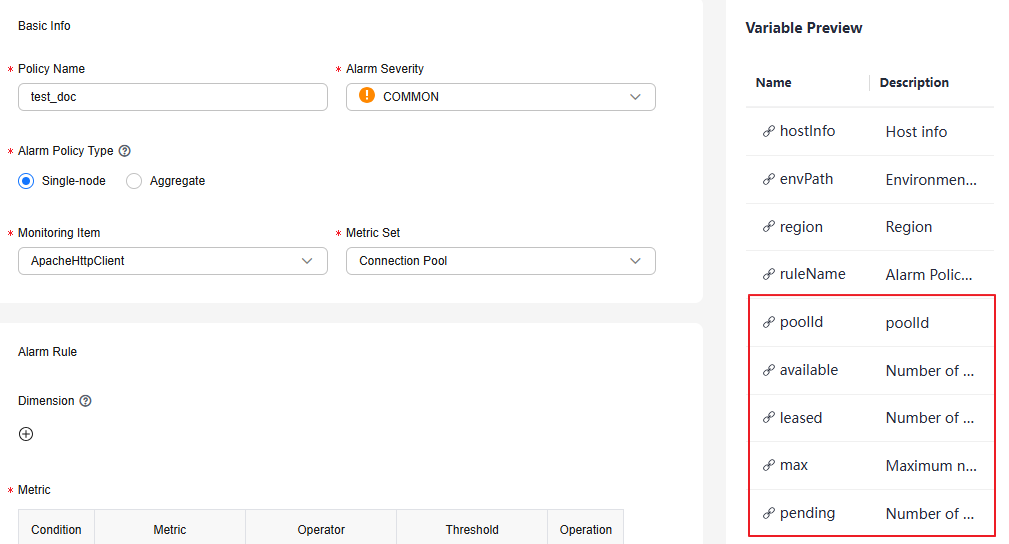

         Figure 2 Basic information


         Table 1 Basic information about an alarm policy

         Parameter	Description
         Policy Name	Custom name, which cannot be left blank. Only letters, digits, underscores (_), and hyphens (-) are allowed. Enter up to 512 characters.
         Alarm Severity	Severity of an alarm. Options: COMMON and CRITICAL.
         Alarm Policy Type	Options: Single-node and Aggregate. Single-node indicates single-instance metric alarms, and Aggregate indicates aggregated metric alarms of all instances under a component.
         Monitoring Item	Select a target monitoring item. The information about the selected item is displayed on the right.
         Metric Set	Select a target metric set. The information about the selected metric set is displayed on the right.

      2. Alarm rule
         Figure 3 Alarm rule


         Table 2 Alarm rule parameters

         Parameter	Description
         Dimension	(Optional) A category of metrics.
         Metric	Metric for which you want to define one or more alarm rules.
         Alarm Condition	Condition for triggering an alarm. A: 1–10 B: 1–10; not greater than A C: ≥ 10
         Recovery Policy	Condition for clearing an alarm.
         Notification upon Recovery	Whether to notify recipients of alarm clearance.
         Multi-Line Matching	(Optional) Whether to define data in the alarm notification content line by line.
         Notification Content	Alarm details, which contain up to 500 characters. If Multi-Line Matching is enabled, the alarm notification content supports both Variable and Loop. If Multi-Line Matching is disabled, only Variable can be selected. Alarm notification content. You can customize the content or select metrics as required. Alarm details, which contain up to 500 characters. Select required metrics. Specifically, on the right of the page, click next to the target metric. The metric will then be displayed in the notification content.

      3. Notification object
      Figure 4 Notification object


      Table 3 Alarm notification parameters

      Parameter	Description
      Notification Object	Select a notification object from the drop-down list. The alarm will only be sent to the selected notification object.

   3. Click Yes.
   4. Bind nodes based on the environment, environment tag, or region.
      Figure 5 Binding nodes


      Table 4 Node parameters

      Parameter	Description
      All	All nodes (including those added subsequently) in all regions will be bound.
      Environment	All nodes in the selected environment will be bound.
      Environment Tag	All nodes with the same tag will be bound.
      Region	All nodes in the selected region will be bound.

7. Click Yes. The alarm template is created.

More Operations

After the alarm template is created, perform the operations listed in Table 5 if needed.
