Configuring Metric Collection Rules for CCE Clusters

Prerequisite

Both your service and CCE cluster have been connected to a Prometheus instance for CCE. For details, see Using Prometheus Monitoring to Monitor CCE Cluster Metrics.

Constraints

Only when kube-prometheus-stack installed on the Add-ons page of CCE is later than 3.9.0 and is still running, can you enable or disable collection rules.

To view the kube-prometheus-stack status, log in to the CCE console and access the cluster page, choose Add-ons in the navigation pane, and locate that add-on on the right.

Adding ServiceMonitor

1. Log in to the AOM 2.0 console.
2. In the navigation pane on the left, choose Prometheus Monitoring > Instances.
3. In the instance list, click a desired Prometheus instance for CCE. The Metric Management page is displayed.
4. On the Settings tab page, select a cluster from the Cluster drop-down list and select ServiceMonitor from the Monitoring drop-down list.
5. Click Add ServiceMonitor. In the displayed dialog box, set related parameters and click OK.

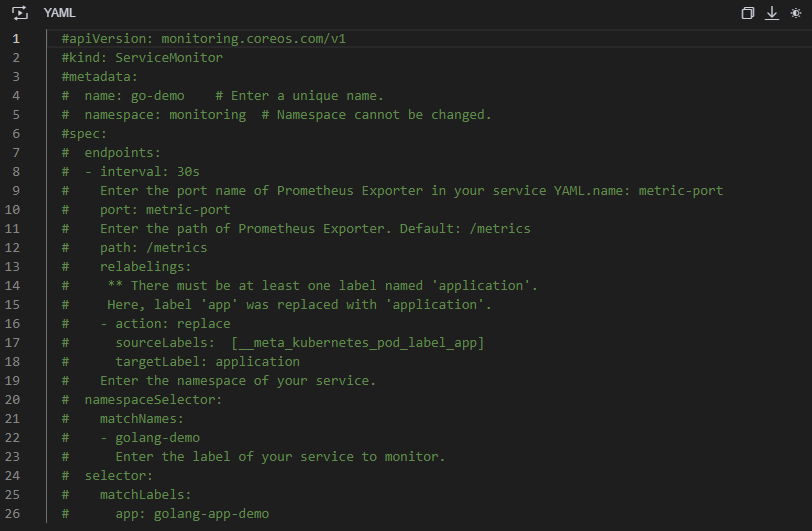

   Figure 1 Adding ServiceMonitor


   After the configuration is complete, the new collection rule is displayed in the collection rule list.

   Figure 2 Collection rule list


Adding PodMonitor

1. Log in to the AOM 2.0 console.
2. In the navigation pane on the left, choose Prometheus Monitoring > Instances.
3. In the instance list, click a desired Prometheus instance for CCE. The Metric Management page is displayed.
4. On the Settings tab page, select a cluster from the Cluster drop-down list and select PodMonitor from the Monitoring drop-down list.
5. Click Add PodMonitor. In the displayed dialog box, set related parameters and click OK.

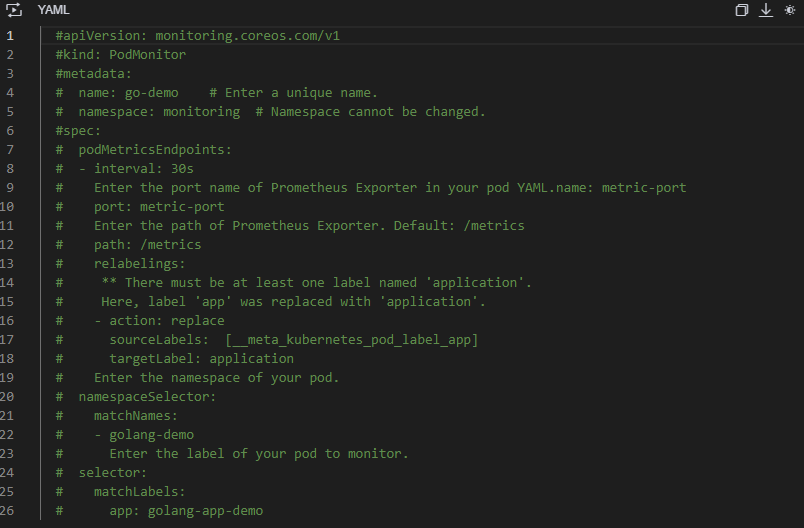

   Figure 3 Adding PodMonitor


   After the configuration is complete, the new collection rule is displayed in the collection rule list.

   Figure 4 Collection rule list


Other Operations

Perform the operations listed in Table 1 if needed.
