Limiting Traffic of a Specified Protocol

After protocol blocking is enabled, the system limits the rate of traffic destined for Anti-DDoS Service objects based on the protocol type. This feature supports protocols such as UDP, TCP, and ICMP.

For details about the rate limit thresholds for different protocols, see Table 1.

**Table 1** Rate Limit (pps)
Protocol Type	Rate Limit (pps)
UDP	10 Mbit/s
TCP	10 Mbit/s
ICMP	100pps
Other (other protocols)	10 Mbit/s

Enabling Protocol Blocking

Log in to the AAD console.
In the navigation pane on the left, choose Cloud Native Anti-DDoS Advanced > Protection Policies. The Protection Policies page is displayed.
Click Create Protection Policy.
In the displayed dialog box, set the policy name, select an instance, and click OK.

Figure 1 Creating a policy
In the row containing the target policy, click Set Protection Policy in the Operation column.
In the Protocol-based Traffic Control configuration box, click Set, as shown in Figure 2.

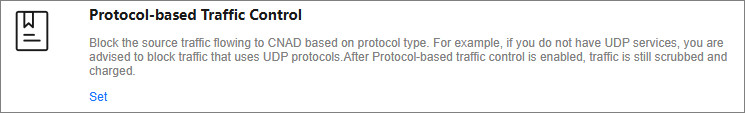

Figure 2 Protocol-based Traffic Control

In the Protocol Rate Limiting Settings dialog box, configure the protocol policy and click OK.

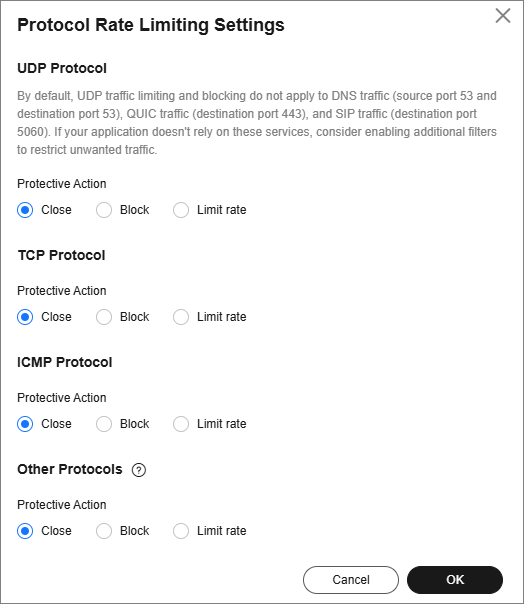

Figure 3 Setting protocol blocking

**Table 2** Parameter description
Protective Action	Description
Close	After the Protective Action is set to Close, the rate limit saved in the database is used for protection.
Block	After the Protective Action is set to Block, the default rate limit is used for traffic control.
Limit rate	After the Protective Action is set to Limit rate, traffic is limited based on the user-defined policy. Rate Limiting (Kbit/s): Traffic is limited based on the user-defined rate limit. Fragment Rate Limiting (Kbit/s): Traffic is limited based on the user-defined fragment rate limit.
