Elastic Network Interface

An elastic network interface (referred to as a network interface in this documentation) is a virtual network card. You can create and configure network interfaces and attach them to your cloud servers (such as ECSs and BMSs) to obtain flexible and highly available network configurations.

Network Interface Types

A primary network interface is created together with an instance by default, and cannot be detached from the instance.
An extended network interface can be created on the Network Interfaces tab, and can be attached to or detached from an instance.

Application Scenarios

Elastic network interfaces help you flexibly migrate and separate services.

Flexible migration: You can detach an extended network interface from a cloud server and attach it to another one. The private IP address, EIP, and security group rules of the original cloud server can be migrated together, so you do not need to reconfigure them. This allows the service traffic on the faulty cloud server to be quickly switched to the standby one, achieving quick service recovery.
Service separation: You can configure multiple network interfaces for a cloud server. These network interfaces can be in different subnets of the same VPC and process the internal, external, and management traffic of the cloud server respectively. You can configure access control policies and routes for each subnet, and define security group rules for each network interface to isolate networks and service traffic.

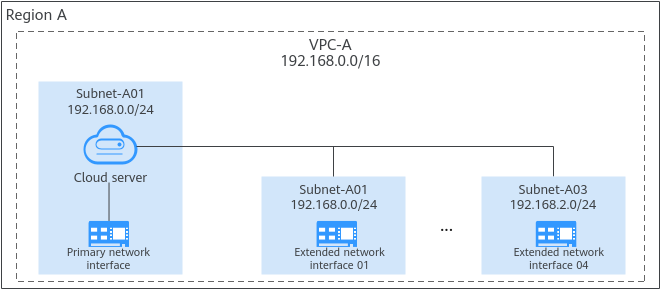

In Figure 1, the cloud server has one primary network interface and four extended network interfaces. These network interfaces can be in different subnets. In this example, extended network interface 01 and the primary network interface are in Subnet-A01, and extended network interface 04 is in Subnet-A03.

Figure 1 Cloud server network interfaces

The number of elastic network interfaces that can be attached to a cloud server is limited. If the cloud server specifications support supplementary network interfaces, you can attach supplementary network interfaces to the elastic network interfaces as needed. For details, see Supplementary Network Interface.
