Interconnecting Hive with External Self-Built Relational Databases

This section applies to MRS 3.x or later.
This section describes how to connect Hive with built-in relational databases open-source MySQL and Postgres.
After an external metadata database is deployed in a cluster with Hive data, the original metadata tables will not be automatically synchronized. Before installing Hive, determine whether to store metadata in an external database or DBService. For the former, deploy an external database when installing Hive or when there is no Hive data. After Hive installation, the metadata storage location cannot be changed. Otherwise, the original metadata will be lost.
After external metadata is imported to the MySQL database, Hive supports only table names, field names, and table description in Chinese.

Hive supports access to open source MySQL and Postgres metabases.

Install the open source MySQL or Postgres database.

The node where the database is installed must be in the same network segment as the cluster, so that they can access each other.
Upload the driver package.
- PostgreSQL:
  Use the open source driver package to replace the cluster's existing one. Download the open source PostgreSQL driver package postgresql-42.2.5.jar at https://repo1.maven.org/maven2/org/postgresql/postgresql/42.2.5/ and upload it to the ${BIGDATA_HOME}/third_lib/Hive directory on all MetaStore nodes.

  Run the following commands on all MetaStore nodes to modify the permission on the driver package:

  cd ${BIGDATA_HOME}/third_lib/Hive

  chown omm:wheel postgresql-42.2.5.jar

  chmod 600 postgresql-42.2.5.jar
- MySQL:
  Visit the MySQL official website at https://www.mysql.com/, choose DOWNLOADS > MySQL Community(GPL) DownLoads > Connector/J, and download the driver package of the required version.
  - For versions earlier than MRS 8.2.0, upload the MySQL driver package of the required version to the /opt/Bigdata/FusionInsight_HD_*/install/FusionInsight-Hive-*/hive-*/lib/ directory on all Metastore nodes.
  - For MRS 8.2.0 and later versions, upload the MySQL driver package of the required version to the ${BIGDATA_HOME}/third_lib/Hive directory on all Metastore nodes.
  Run the following commands on all MetaStore nodes to modify the permission on the driver package:

  cd /opt/Bigdata/FusionInsight_HD_*/install/FusionInsight-Hive-*/hive-*/lib/

  chown omm:wheel mysql-connector-java-*.jar

  chmod 600 mysql-connector-java-*.jar
Create a user and metadata database in the self-built database and assign all permissions on the database to the user. For example:
- Run the following commands as the database administrator in PostgreSQL to create database test and user testuser, and assign all permissions on test to testuser:
  create user testuser with password 'password';

  create database test owner testuser;

  grant all privileges on database test to testuser;
- Run the following commands as the database administrator in MySQL to create database test and user testuser, and assign all permissions on test to testuser:
  create database test;

  create user 'testuser'@'%' identified by 'password';

  grant all privileges on test.* to 'testuser';

  flush privileges;
Import the SQL statements for creating metadata tables.
- SQL script path in the PostgreSQL database: ${BIGDATA_HOME}/FusionInsight_HD_*/install/FusionInsight-Hive-*/hive-*/scripts/metastore/upgrade/postgres/hive-schema-3.1.0.postgres.sql
  Run the following command to import the SQL file to Postgres:

  ./bin/psql -U username -d databasename -f hive-schema-3.1.0.postgres.sql

  ./bin/psql is in the Postgres installation directory.

  username indicates the username for logging in to Postgres.

  databasename indicates the database name.
- SQL script path in the MySQL database: ${BIGDATA_HOME}/FusionInsight_HD_*/install/FusionInsight-Hive-*/hive-*/scripts/metastore/upgrade/mysql/hive-schema-3.1.0.mysql.sql
  Run the following command to import the SQL file to the MySQL database:

  ./bin/mysql -u username -p -D databasename<hive-schema-3.1.0.mysql.sql

  ./bin/mysql is in the MySQL installation directory.

  username indicates the user name for logging in to MySQL.

  databasename indicates the database name.

Log in to FusionInsight Manager, choose Cluster > Services, and click Hive. On the displayed page, click Configuration > All Configurations, and choose Hive (Service) > MetaDB. Modify the parameters described in Table1 Parameters, and save the modification so that the Hive configuration can be connected to the open-source database.

**Table 1** Parameters
Parameter	Default value	Description
javax.jdo.option.ConnectionDriverName	org.postgresql.Driver	Driver class for connecting metadata on MetaStore If an external MySQL database is used, the value is: com.mysql.jdbc.Driver If an external Postgres database is used, the value is: org.postgresql.Driver
javax.jdo.option.ConnectionURL	jdbc:postgresql://%{DBSERVICE_FLOAT_IP}%{DBServer}:%{DBSERVICE_CPORT}/hivemeta?socketTimeout=60	URL of the JDBC link of the MetaStore metadata If an external MySQL database is used, the value is: jdbc:mysql://IP address of the MySQL database:Port number of the MySQL database/test?characterEncoding=utf-8 If an external Postgres database is used, the value is: jdbc:postgresql://IP address of the PostgreSQL database:Port number of the PostgreSQL database/test NOTE: test is the name of the database created in MySQL or PostgreSQL in 3.
javax.jdo.option.ConnectionUserName	hive${SERVICE_INDEX}${SERVICE_INDEX}	Username for connecting to the metadata database on Metastore

Change the Postgres database password in MetaStore. Choose Cluster > Name of the desired cluster > Services > Hive. On the displayed page, click Configurations > All Configurations and choose MetaStore(Role) > MetaDB, modify the following parameters, and click Save.

**Table 2** Parameters
Parameter	Default value	Description
javax.jdo.option.extend.ConnectionPassword	******	User password for connecting to the external metadata database on Metastore. The password is encrypted in the background.

Log in to each MetaStore background node and check whether the local directory /opt/Bigdata/tmp exists.
- If it exists, go to 8.
- If it is not, run the following commands to create one:
  mkdir -p /opt/Bigdata/tmp

  chmod 755 /opt/Bigdata/tmp
Save the configuration. Choose Dashboard > More > Restart Service, and enter the password to restart the Hive service.
Log in to the MySQL or PostgreSQL database and view metadata tables generated in the metadata database created in 3.
Check whether the metadata database is successfully deployed.
1. Log in to the node where the Hive client is installed as the client installation user.
  cd Client installation directory

  source bigdata_env

  kinit Component service user (Skip this step for clusters with Kerberos authentication disabled.)
2. Run the following command to log in to the Hive client CLI:
  beeline
3. Run the following command to create the test table:
  create table test(id int,str1 string,str2 string);
4. Run the following command in the test database of the MySQL or PostgreSQL database to check whether there is any information about the test table:
  select * from TBLS;

  If information about the test table is displayed, the external database is successfully deployed. For example:

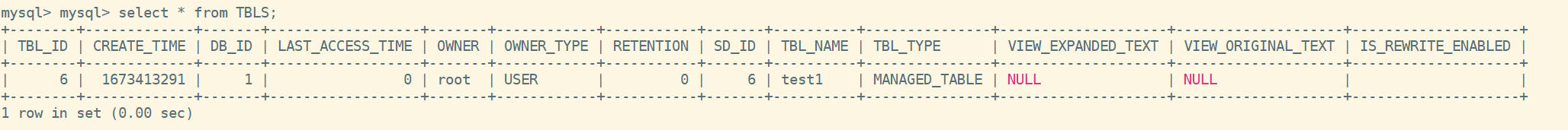

  - The result in the MySQL database is as follows:

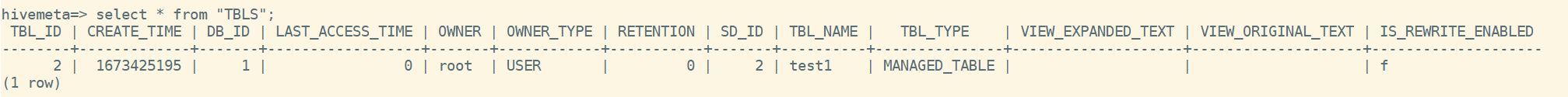

  - The result in the PostgreSQL database is as follows:
