Setting the Properties of the Amount Widget

This widget records amounts.

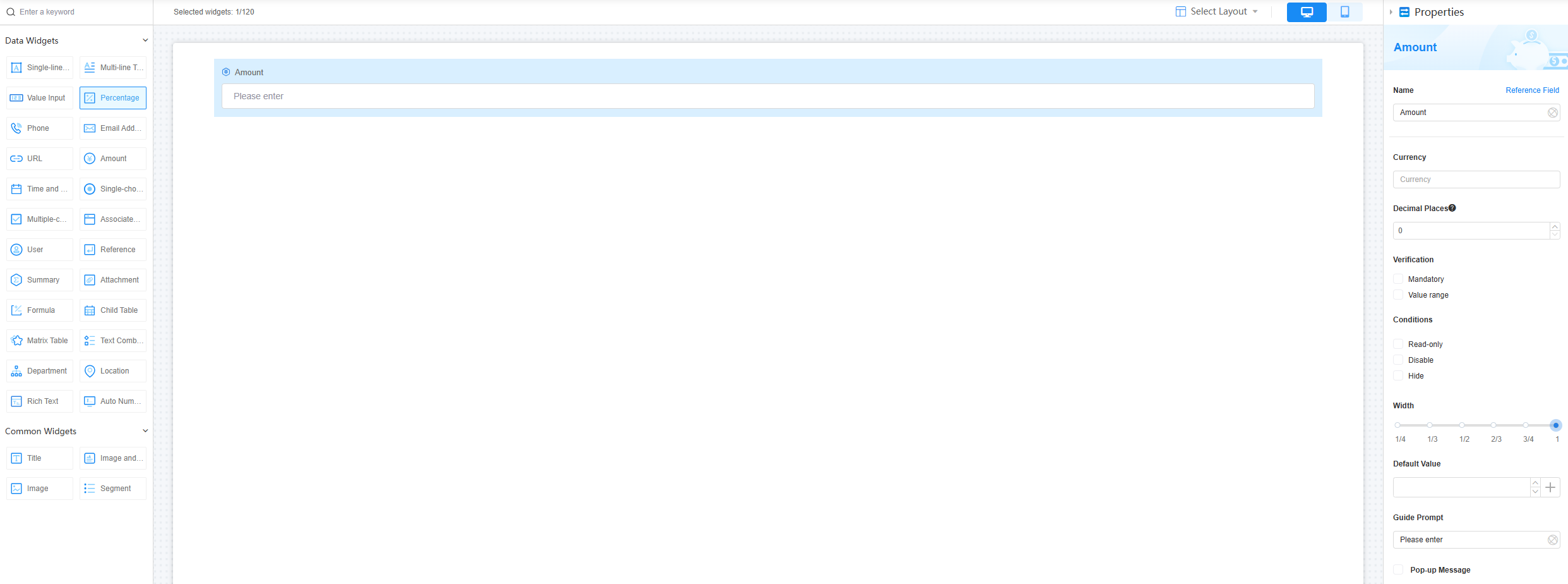

Figure 1 Amount widget

Name

Set the field name shown to users. Click to set Chinese and English names. Click Reference Field to copy another field's value to this field name.

Figure 2 Setting the field name (Chinese and English)

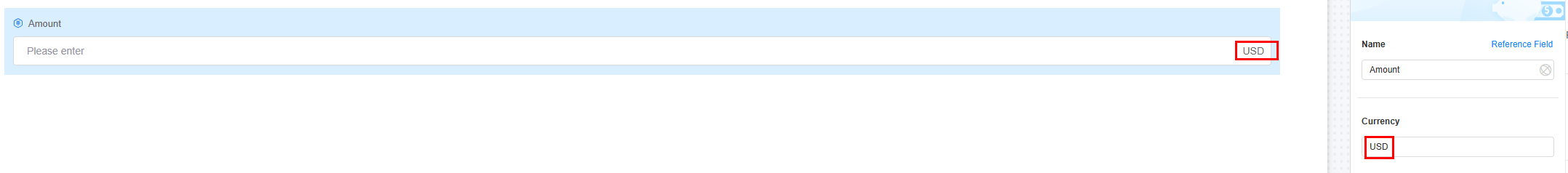

Currency

Set the unit for the amount, like dollars and cents.

Figure 3 Setting the currency unit

Decimal Places

Set how many decimal places to keep. It starts at 0 by default, which works well for entering amounts. After you save the form, you can only increase the number of decimal places.

If you choose 2 decimal places, it will keep just 2. If you type more than that, the platform will round the number automatically.

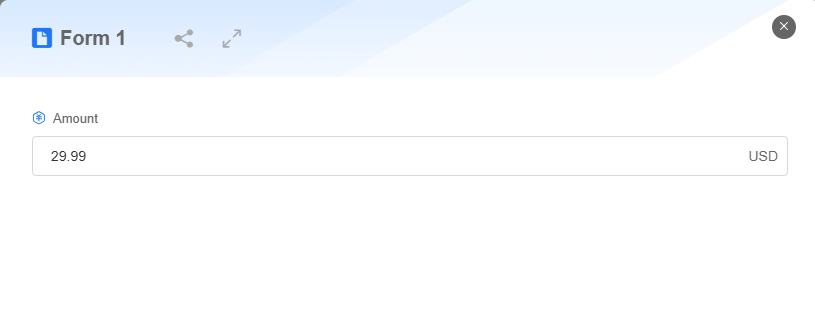

Figure 4 Effect

Verification

Limit the field's length and format to keep data accurate and valid.
  • Mandatory: If checked, the field is required and shows a * next to it.
  • Set the value range, like 10.01 to 1000.99, to keep the data accurate.

Conditions

Set field properties like Read-only, Disable, and Hide.
  • Read-only: If checked, the field is read-only.
  • Disable: If checked, the field shows but cannot be edited.
  • Hide: If checked, the field is hidden on the page.

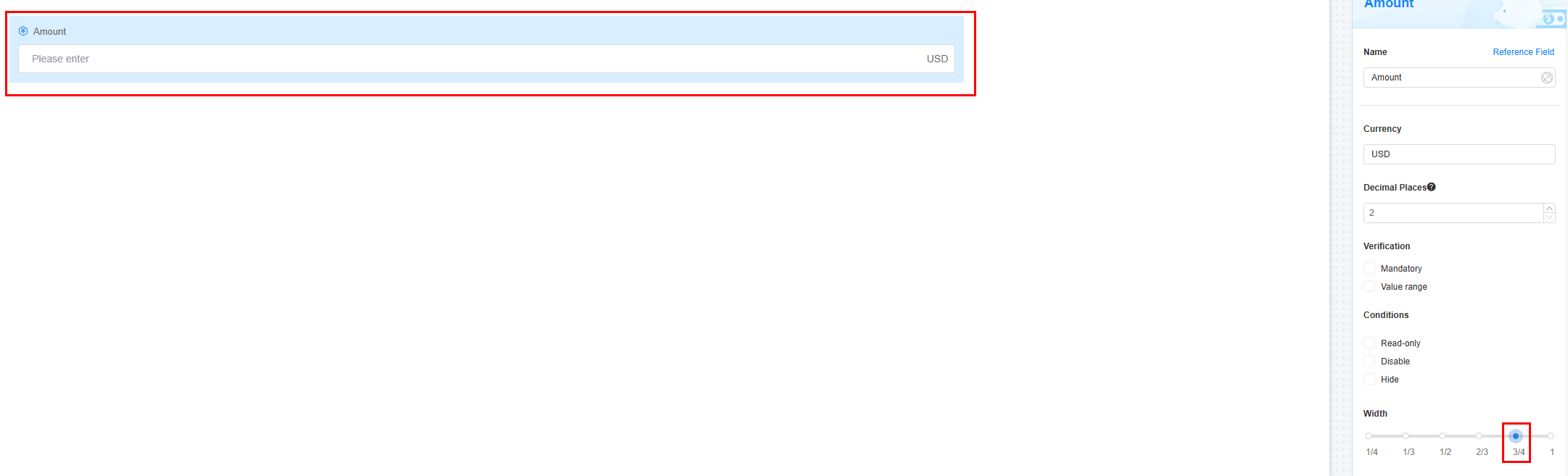

Width

Width: Widget width as a ratio of the page width. Set the widget width to make the page look better and more professional.

Figure 5 Setting the widget width

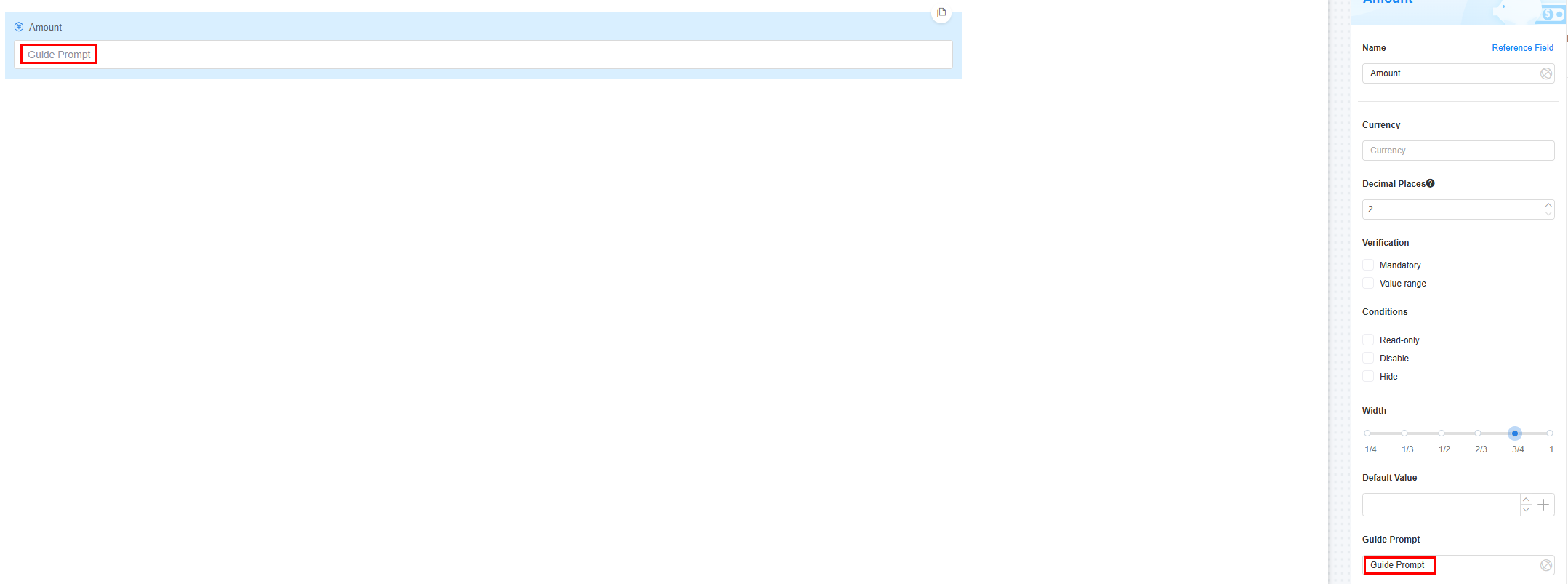

Guide Prompt

If a user does not set this parameter, the text displayed on the GUI guides the user to perform correct operations.

Figure 6 Setting the guide prompt

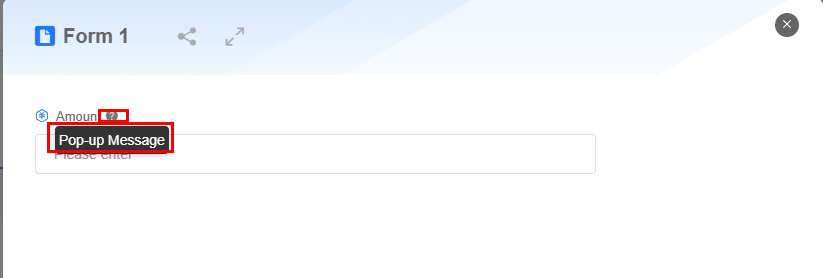

Pop-up Message

If a field is unclear, add a Pop-up Message to explain it. This helps users and makes things easier.

After setting, a question mark icon appears next to the field. When filling in the form, click the question mark icon to see the message.

Figure 7 Effect

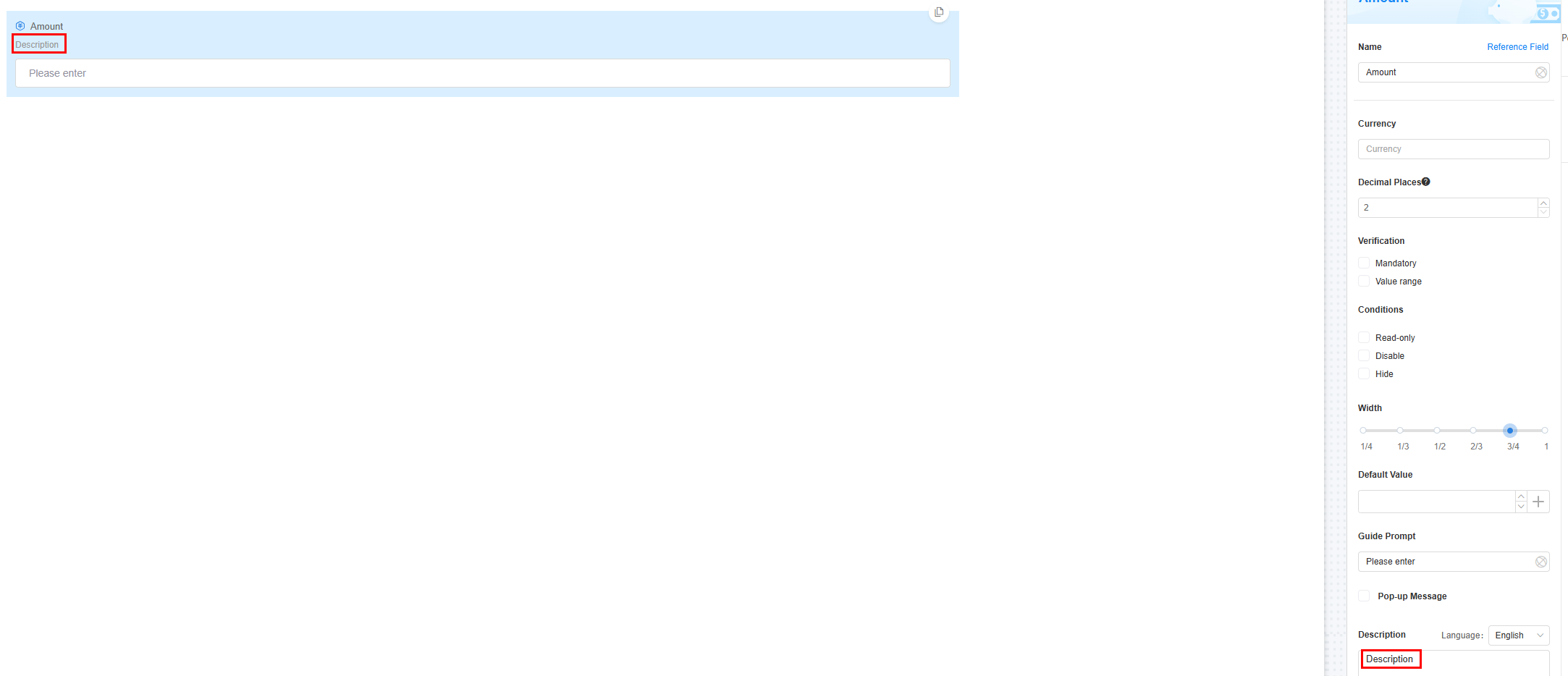

Description

Set the widget description. Include its functions, use cases, and tips. This helps users understand it better and makes the form clearer.

Figure 8 Effect
