Setting the Properties of the Value Input Widget

This widget records numbers, like quantity, age, inventory, or amounts. It can handle up to 15 digits. If the number is too long, the system will add separators.

For numbers over 15 digits, use the text widget.

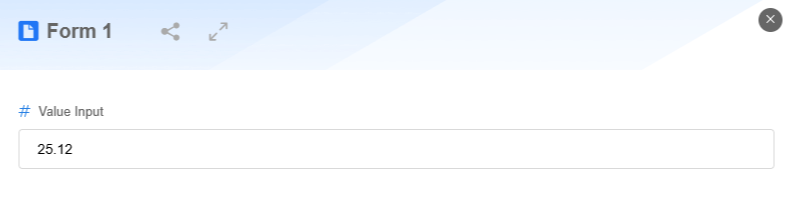

Figure 1 Value input widget

Name

Set the field name shown to users. Click to set Chinese and English names. Click Reference Field to copy another field's value to this field name.

Figure 2 Setting the field name (Chinese and English)
Figure 3 Field reference

Decimal Places

Set how many decimal places to keep. It starts at 0 by default, which works well for entering amounts. After you save the form, you can only increase the number of decimal places.

If you choose 2 decimal places, it will keep just 2. If you type more than that, the platform will round the number automatically.

Figure 4 Effect

Unit

Set this based on what you need. For example: dollars or pages.

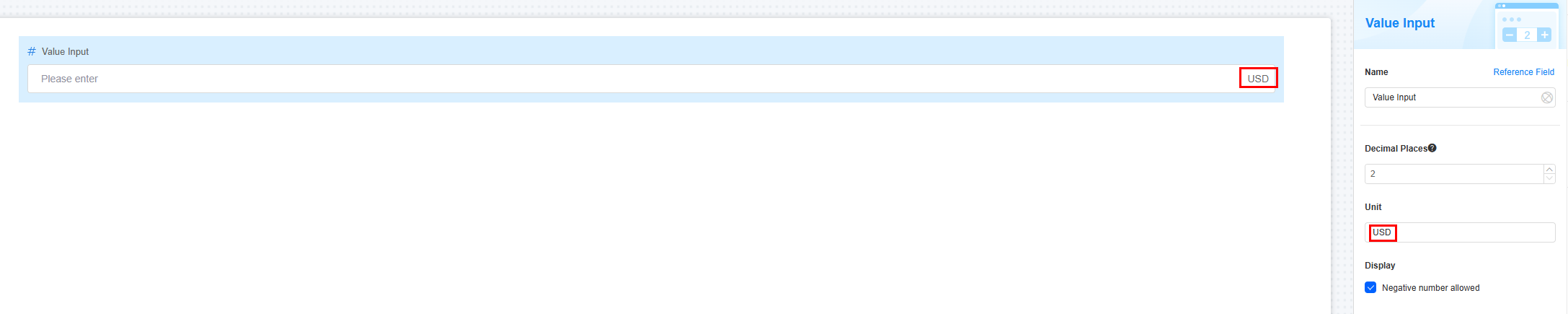

Figure 5 Setting the widget unit

Display

Negative numbers are allowed by default. For example, you can enter -123.

Figure 6 Entering negative numbers

Verification

Limit the field's length and format to keep data accurate and valid.
  • Mandatory: If checked, the field is required and shows a * next to it.
  • Set the value range, like 10.01 to 1000.99, to keep the data accurate.

Conditions

Set field properties like Read-only, Disable, and Hide.
  • Read-only: If checked, the field is read-only.
  • Disable: If checked, the field shows but cannot be edited.
  • Hide: If checked, the field is hidden on the page.

Width

Width: Widget width as a ratio of the page width. Set the widget width to make the page look better and more professional.

Figure 7 Setting the widget width
  • 1/4: Widget is 1/4 of the page width.
  • 1/3: Widget is 1/3 of the page width.
  • 1/2: Widget is 1/2 of the page width.
  • 2/3: Widget is 2/3 of the page width.
  • 3/4: Widget is 3/4 of the page width.
  • 1: Widget is full page width (default).

Default Value

Set a default value for the widget (defaults to "Please enter" if not set). This reduces user input, speeds up processes, and prevents invalid entries.

Figure 8 Setting the default value of a widget
  • Other field: Fields from other widgets.
  • Relate data: Link to existing data. The latest record is used as the default.
    Figure 9 Setting the default value
  • Formula editing: After you add a formula to a field, its value is calculated automatically when you fill in or change the form.
    Figure 10 Formula editing

Guide Prompt

If a user does not set this parameter, the text displayed on the GUI guides the user to perform correct operations.

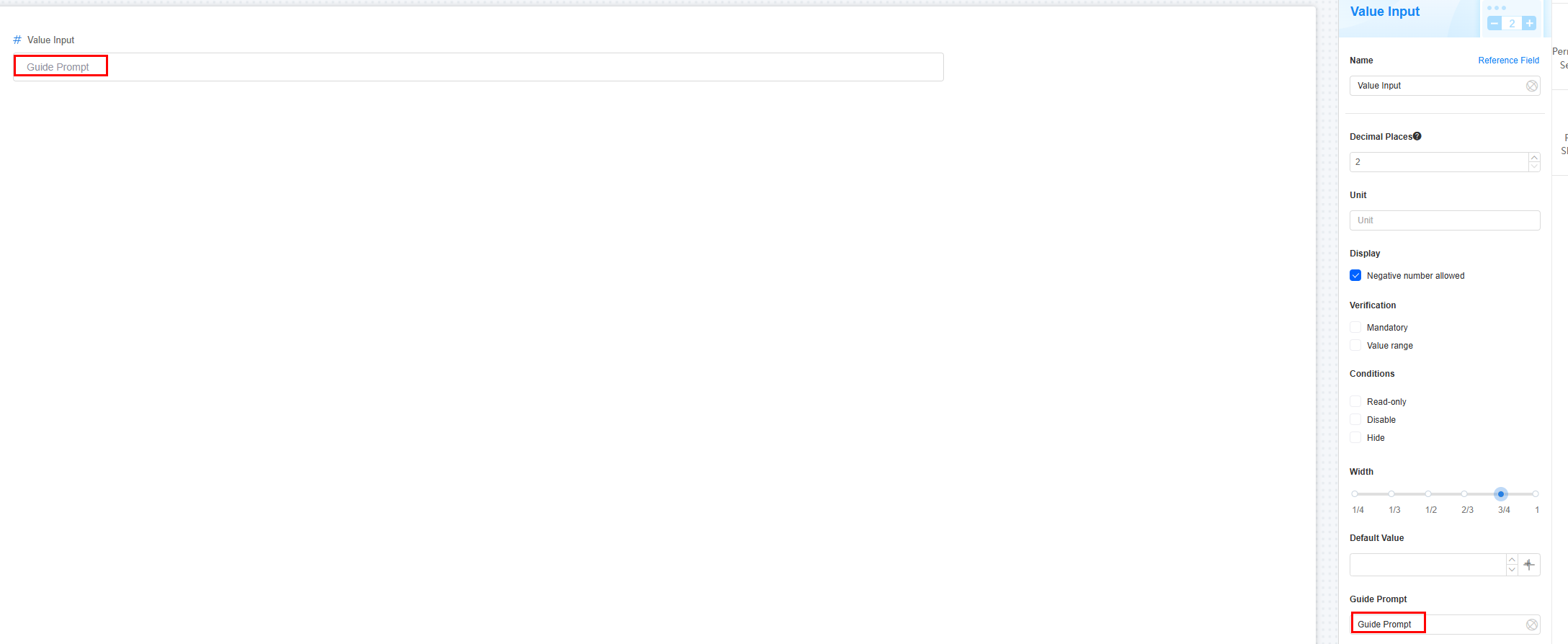

Figure 11 Setting the guide prompt

Pop-up Message

If a field is unclear, add a Pop-up Message to explain it. This helps users and makes things easier.

After setting, a question mark icon appears next to the field. When filling in the form, click the question mark icon to see the message.

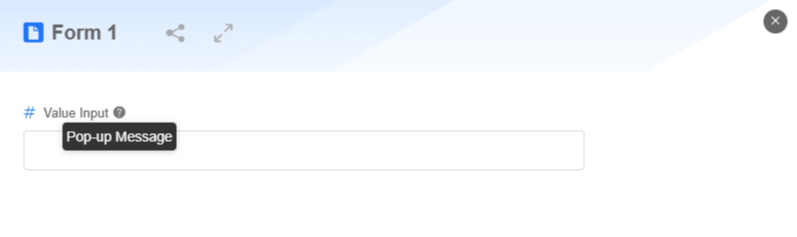

Figure 12 Effect

Description

Set the widget description. Include its functions, use cases, and tips. This helps users understand it better and makes the form clearer.

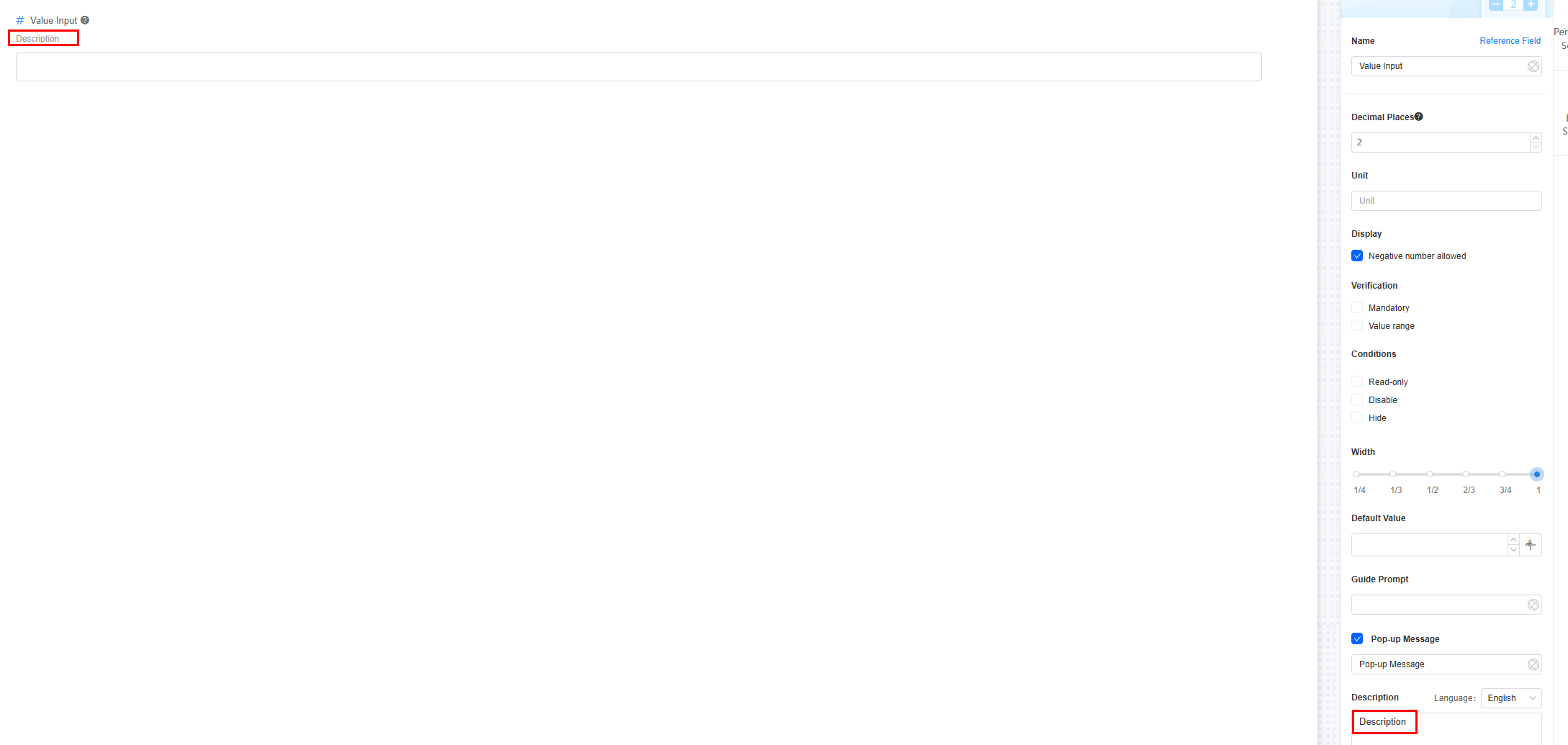

Figure 13 Effect
