URL Validation

Referer validation can filter visitors' identities. However, the referer content can be forged, which cannot completely protect your VOD resources. Therefore, VOD provides URL validation. You can configure the key and generate the corresponding playback URL. The URL has a certain validity period, which effectively prevents VOD resources from being illegally stolen.

Implementation

Referer validation works in a simple way. After a blacklist or whitelist is configured on the VOD console, VOD distributes the blacklist or whitelist to CDN. When receiving a request, CDN checks whether the request is valid based on the list. If the request is valid, CDN accesses the requested resource. If the request is invalid, CDN rejects the request and returns a status code 403.

URL validation is implemented by VOD edge nodes and origin server in VOD. It is a more secure and reliable anti-piracy solution than referer validation. Figure 1 shows how URL validation works.

Figure 1 URL validation working principles

The process is as follows:

  1. You enable URL validation on the VOD console and configure the allowed time difference and algorithm.
  2. VOD delivers the configured key value to CDN nodes.
  3. You obtain the authentication URL of a VOD media file.
  4. Viewers request CDN to play a video through the authentication playback URL.
  5. CDN verifies the request based on authentication information carried in the playback URL. Only requests that pass the verification are allowed.

Notes

  • This function is optional and is disabled by default.
  • After this function is enabled, the original URLs cannot be used. New signed URLs must be generated based on rules.
  • If the signed URL expires or the signature fails to be authenticated, the video fails to be played and the message "403 Forbidden" is returned.
  • Algorithms A, B, and C do not support HLS and DASH playback scenarios.
  • To disable URL validation, submit a service ticket.
  • When URL validation is enabled, playback with multiple audio tracks and multilingual subtitles is not supported.

Procedure

  1. Log in to the VOD console.
  2. In the navigation pane, choose Domain Name Management.
  3. Click Configure on the right of the domain name and choose the Hotlink Protection Settings tab.
  4. Click URL Validation. The URL Validation dialog box is displayed.
  5. Configure URL validation parameters. Table 1 describes the parameters.

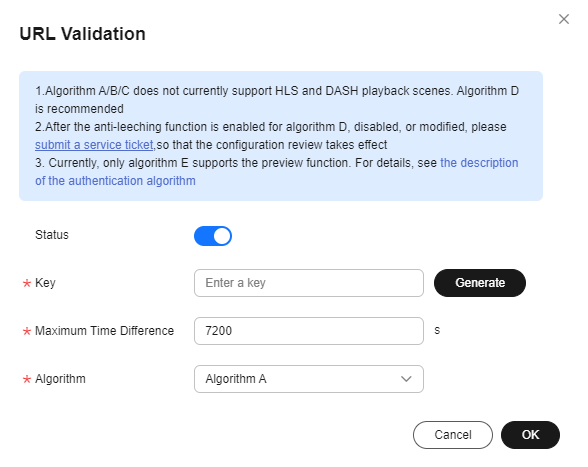

    Figure 2 Configuring URL validation
    Table 1 Parameters

    Parameter

    Description

    Key

    Click Generate to generate a key value.

    Maximum Time Difference

    How long a signed URL remains valid. The default value is 120 minutes.

    For example, if the signed URL generation time is 1573806090 (Nov. 15, 2019 16:21:30 GMT+08:00) and the allowed time difference is 120 minutes, the signed URL expires at Nov. 15, 2019 18:21:30 GMT+08:00.

    Expiration Time of the Old Key

    By default, the old key expires 60 minutes later since the new key takes effect.

    For example, if the new key takes effect on Nov. 15, 2019 16:21:30 GMT+08:00 and Expiration Time of the Old Key is 60 minutes, the old signed URL expires at Nov. 15, 2019 17:21:30 GMT+08:00.

    Algorithm

    Key encryption algorithm. The following algorithms are supported:

    Algorithms A, B, and C: The MD5 digest algorithm is used. For details, see Encryption Algorithm A, Encryption Algorithm B, and Encryption Algorithm C.

    Algorithm D: The symmetric encryption algorithm is used. For details, see Encryption Algorithm D.

    Algorithm E: The SHA-256 algorithm is used. For details, see Encryption Algorithm E (same as the Signing Method C2 of CDN). Algorithm E is now displayed on the GUI but not available for your use.

    NOTE:
    • Algorithms A, B, and C do not support HLS and DASH playback. Algorithm D or E is recommended.
    • Currently, algorithm E supports preview only for HLS and MP4 files. The preview function of MP4 files takes effect only when MOOV is in front of MDAT. After the preview function is enabled, the playback URL can be obtained from the VOD console. The default preview duration is 300s.

    Authentication Scope

    Specifies the files to be authenticated. Currently, you can authenticate all files, authenticate files with a specified file name extension, or choose not to authenticate files with a specified file name extension.

    Authentication Inherit Config

    Adds the authentication parameter to TS and MP4 files under M3U8/MPD index files, so that the files can be played after authentication succeeds.

    NOTE:
    • If there are multi-layer M3U8/MPD files, only the first-layer M3U8/MPD files are parsed, and the TS/MP4 streams of M3U8/MPD files at other layers are not expanded.
    • The standard M3U8 format is supported. M3U8 files are parsed by line. If the parsing fails, responses from the origin server are returned to users. URIs starting with the #EXT-X-MAP tag and URLs/URIs not starting with the pound key (#) are supported.
    • The standard MPD format is supported. MPD files are parsed by line. If the parsing fails, responses from the origin server are returned to users. The URI between tags <BaseURL> and </BaseURL> is identified. The SegmentTemplate tag is not supported.

    Preview

    Only HLS and MP4 files can be previewed.

  6. Click OK.
  7. If you select algorithm D, you need to submit a service ticket for approval after configuring the parameters. The submitted information must contain the configured domain name and information listed in Table 1.

    URL validation settings take effect once your request is approved. If you modify the URL validation settings, you also need to submit a service ticket for approval.

  8. Verify whether the URL validation settings have taken effect.

    Obtain the signed streaming URL and play the content via the URL. If the playback is successful, the URL validation settings have taken effect.

Generating a Signed URL

From the console

  1. Log in to the VOD console.
  2. In the navigation pane, choose Management > Audio and Video Management.
  3. Click Details in the row containing your media file and then choose the Playback tab.

    URL is the original streaming URL of the media file. Click to obtain the signed URL.

    Figure 3 Streaming URL

Encryption Algorithm A

Signed URL format

Original URL?auth_key={timestamp}-{rand}-{uid}-{auth_key}
Formula for calculating auth_key
auth_key = MD5(/asset/{assetId}/{file_name}-{timestamp}-{rand}-{uid}-{private_key})
Table 2 Authentication fields

Field

Description

timestamp

Time when a signed URL is generated. The value is a Unix timestamp, which is the number of seconds since January 1, 1970.

Example: 1564731935 (2019.08.02 15:45)

rand

Random number. The recommended value is a UUID, which cannot contain hyphens (-).

Example: f03cbe7c4a3849bc8d8769e3110e4533

uid

This parameter is not used now. Set it to 0.

private_key

Key value set on the console. For details, see Procedure.

Signed URL example
Original URL: http://1.cdn.myhuaweicloud.com/asset/6b2d740f10b8697d8ea6672868ecdb6f/test.mp4
private_key: myPrivateKey
timestamp: 1547123166
rand: 477b3bbc253f467b8def6711128c7bec
uid: 0
Obtain auth_key based on the calculation formula.
auth_key = md5(/asset/6b2d740f10b8697d8ea6672868ecdb6f/test.mp4-1547123166-477b3bbc253f467b8def6711128c7bec-0-myPrivateKey) = 584883719a3f722bf1a32a3b0a4d25dd

Signed URL based on algorithm A

http://1.cdn.myhuaweicloud.com/asset/6b2d740f10b8697d8ea6672868ecdb6f/test.mp4?auth_key=1547123166-477b3bbc253f467b8def6711128c7bec-0-584883719a3f722bf1a32a3b0a4d25dd

Encryption Algorithm B

Signed URL format
https://{cdn_domain}/{date_YYYYmmddHHMM}/{md5sum}/asset/{asset_id}/{file_name}
Formula for calculating md5sum
md5sum = md5({private_key}{date_yyyyMMddHHmm}/asset/{asset_id}/{file_name})
Table 3 Authentication fields

Field

Description

date_yyyyMMddHHmm

Time when a signed URL is generated. The format is yyyyMMddHHmm.

Example: 201908051445

file_name

Part starting behind the media asset ID of the original streaming URL to the end of the URL.

Example: play_video/test.mp4

private_key

Key value set on the console. For details, see Procedure.

Signed URL example
Original URL: http://1.cdn.myhuaweicloud.com/asset/6b2d740f10b8697d8ea6672868ecdb6f/test.mp4
private_key: myPrivateKey
date_yyyyMMddHHmm: 201901102026
file_name: test.mp4

Obtain md5sum based on the calculation formula.

md5sum = md5(myPrivateKey201901102026/asset/6b2d740f10b8697d8ea6672868ecdb6f/test.mp4) = 713ef643de8df076da6ec3c0545968cb

Signed URL based on algorithm B

http://1.cdn.myhuaweicloud.com/201901102026/713ef643de8df076da6ec3c0545968cb/asset/6b2d740f10b8697d8ea6672868ecdb6f/test.mp4

Encryption Algorithm C

Signed URL format
https://{cdn_domain}/{md5hash}/{time_hex}/asset/{asset_id}/{file_name}
Formula for calculating md5hash
md5hash = md5({private_key}/asset/{asset_id}/{file_name}{time_hex})
Table 4 Authentication fields

Field

Description

file_name

Part starting behind the media asset ID of the original streaming URL to the end of the URL.

Example: play_video/test.mp4

time_hex

Time when a signed URL is generated. The value is a hexadecimal Unix timestamp.

Example: hex(1564987530)=5D47D08A

private_key

Key value set on the console. For details, see Procedure.

Signed URL example
Original URL: http://1.cdn.myhuaweicloud.com/asset/6b2d740f10b8697d8ea6672868ecdb6f/test.mp4
private_key: myPrivateKey
time_hex: hex(timestamp) = hex(1547123166) = 5C3739DE
file_name: test.mp4
Obtain md5sum based on the calculation formula.
md5hash=md5(myPrivateKey/asset/6b2d740f10b8697d8ea6672868ecdb6f/test.mp45C3739DE) = afa20c956043fe6d130b16f2704ac870

Signed URL based on algorithm C

http://1.cdn.myhuaweicloud.com/afa20c956043fe6d130b16f2704ac870/5C3739DE/asset/6b2d740f10b8697d8ea6672868ecdb6f/test.mp4

Encryption Algorithm D

Signed URL format

Original URL?auth_info={Encrypted string}.{EncodedIV}&plive={plive_starttime}
Formulas for calculating the encrypted string and EncodedIV:
  • Original encrypted string = url_encoding({path}+"$"+{Timestamp})+"$"+{plive_starttime}
  • Encrypted string = aes_cbc_128_pkcs5padding(Original encrypted string,key,IV)
  • EncodedIV = hex(IV)
Table 5 Authentication fields

Field

Description

path

Directory from the domain name to the last level, including the slash (/) behind the domain name and slash (/) behind the last level of directory, excluding the file name

Example: /asset/32237c8f68fcc6071a2d8e3421eee20d/play_video/

Timestamp

Time when a signed URL is generated. The value is UTC time in yyyyMMddHHmmss format.

Example: 20190805101025

key

Key value set on the console. For details, see Procedure.

(Optional) plive

Start time of pseudo-streaming, in UTC time.

Specify this parameter only for Pseudo-Streaming. In other cases, this parameter is not required for calculating the signed URL.

IV

Randomly generated byte array. It can be up to 16 characters long.

hex(): converts the byte array into a hexadecimal string.

Sample code for generating IV is:
byte[] iv = new byte[16];
SecureRandom secureRand = new SecureRandom();
secureRand.nextBytes(iv);
Signed URL example
Original URL: https://179.cdn-vod.huaweicloud.com/asset/32237c8f68fcc6071a2d8e3421eee20d/play_video/index.m3u8
path: /asset/32237c8f68fcc6071a2d8e3421eee20d/play_video/
key: 8Ks1qn14XRO28qOa
Timestamp: 20190805102430
plive: 1704074400
The encrypted string and EncodedIV are obtained according to the calculation formula.
Original encrypted string = url_encoding("/asset/32237c8f68fcc6071a2d8e3421eee20d/play_video/") + "$" + "20190805102430"+ "$" + "1704074400"
Encrypted string = aes_cbc_128_pkcs5padding(Original encrypted string,key,IV) = 34M%2F6KtYgxuAozdBLIVTe0dUVAZdvXsYQoYAnDmuhRHh1hshYg%2B2Tl0AmSwySDh%2BmkER44qYKpSP%2BgfsLM%2FIZe4F6K4n1Nx6ouGwyKfqdDA%3D
EncodedIV = hex(IV) = 79436d453636364e335941713330534e
Signed URL based on algorithm D
https://179.cdn-vod.huaweicloud.com/asset/32237c8f68fcc6071a2d8e3421eee20d/play_video/index.m3u8?auth_info=34M%2F6KtYgxuAozdBLIVTe0dUVAZdvXsYQoYAnDmuhRHh1hshYg%2B2Tl0AmSwySDh%2BmkER44qYKpSP%2BgfsLM%2FIZe4F6K4n1Nx6ouGwyKfqdDA%3D.79436d453636364e335941713330534e&plive=1704074400

Encryption Algorithm E

  • Algorithm E is now displayed on the GUI but not available for your use.
  • The preview and pseudo-streaming functions cannot be enabled at the same time. The following URLs are for reference only. exper and plive cannot exist at the same time.

Signed URL format

Original URL?auth_key={authKey}&timestamp={timestamp}&exper={exper}&plive={plive_starttime}

Formula for calculating authKey:

  • To enable preview: auth_key = sha256({PrivateKey}{fileName}{timestamp}{exper}
  • To enable pseudo-streaming: auth_key = sha256({PrivateKey}{fileName}{timestamp}{plive_starttime})
    Table 6 Authentication fields

    Field

    Description

    timestamp

    Time when a signed URL is generated. The value is a Unix timestamp, which is the number of seconds since January 1, 1970. Unit: second.

    Example: 1564731935, that is, the time is 2019.08.02 15:45.

    fileName

    Back-to-origin URL. During authentication, the value must start with a slash (/) and cannot include the parameters behind ? in the signed URL.

    Example: /asset/6b2d740f10b8697d8ea6672868ecdb6f/test.hls

    PrivateKey

    Signing key, which is used to generate a signed URL.

    The key can contain 16 to 32 characters in only letters and digits.

    exper (optional)

    Video preview duration, in second. Only MP4 and HLS videos can be previewed.

    Specify this parameter only for preview. In other cases, this parameter is not required for calculating the signed URL.

    (Optional) plive

    Start time of pseudo-streaming, in UTC time. This field is valid only for the HLS format.

    Specify this parameter only for pseudo-streaming. In other cases, this parameter is not required for calculating the signed URL. The preview and Pseudo-Streaming functions cannot be enabled at the same time.

Signed URL example
Original URL: http://1.cdn.myhuaweicloud.com/asset/6b2d740f10b8697d8ea6672868ecdb6f/test.hls
private_key: 32d6b2d740f10b86
timestamp: 1547123166
fileName: /asset/6b2d740f10b8697d8ea6672868ecdb6f/test.hls
exper: 300
plive: 1704074400
Obtain auth_key based on the calculation formula.
  • Enabling preview
    auth_key = sha256(32d6b2d740f10b86/asset/6b2d740f10b8697d8ea6672868ecdb6f/test.hls1547123166300) = 3a935cf1d8299fe63ec8d4e0afb5ef3304883a702a4e760f3c5ae838a4b69768
  • Enabling pseudo-streaming
    auth_key = sha256(32d6b2d740f10b86/asset/6b2d740f10b8697d8ea6672868ecdb6f/test.hls15471231661704074400) = 3a935cf1d8299fe63ec8d4e0afb5ef3304883a702a4e760f3c5ae838a4b69768
Signed URL based on algorithm E:
  • Preview enabled
    http://1.cdn.myhuaweicloud.com/asset/6b2d740f10b8697d8ea6672868ecdb6f/test.hls?auth_key=3a935cf1d8299fe63ec8d4e0afb5ef3304883a702a4e760f3c5ae838a4b69768&timestamp=1547123166&exper=300
  • Pseudo-streaming enabled
    http://1.cdn.myhuaweicloud.com/asset/6b2d740f10b8697d8ea6672868ecdb6f/test.hls?auth_key=3a935cf1d8299fe63ec8d4e0afb5ef3304883a702a4e760f3c5ae838a4b69768&timestamp=1547123166&plive=1704074400
