Configuring Multi-VPC Access

VPC provisions an isolated virtual network environment defined and managed by yourself, improving the security of cloud resources and simplifying network deployment. When using SFS, a file system and the associated ECSs need to belong to the same VPC for file sharing.

In addition, VPC can use network access control lists (ACLs) to implement access control. A network ACL is an access control policy system for one or more subnets. Based on inbound and outbound rules, it determines whether data packets are allowed in or out of any associated subnet. In the VPC list of a file system, each time an authorized address is added and corresponding permissions are set, a network ACL is created.

For more information about VPC, see the Virtual Private Cloud.

Scenarios

Multi-VPC access can be configured for an SFS Capacity-Oriented or SFS 3.0 Capacity-Oriented file system so that ECSs in different VPCs can share the same file system, as long as the VPCs that the ECSs belong to are added to the VPC list of the file system or the ECS IP addresses are added as authorized IP addresses of the VPCs.

An SFS Turbo file system allows two or more VPCs in the same region to interconnect with each other through VPC peering connection. In this case, different VPCs are in the same network, and ECSs in these VPCs can share the same file system. For details about VPC peering connection, see VPC Peering Connection.

This section describes how to configure multi-VPC access for an SFS Capacity-Oriented or SFS 3.0 Capacity-Oriented file system.

Restrictions

  • You can add a maximum of 20 VPCs for each file system. A maximum of 400 ACL rules for added VPCs can be created. When adding a VPC, the default IP address 0.0.0.0/0 is automatically added.
  • If a VPC added to a file system has been deleted from the VPC console, the IP addresses or IP address ranges of this VPC can still be seen as activated in the file system's VPC list. But this VPC can no longer be used and you are advised to delete it from the list.
  • You need to create VPC endpoints to establish communication between SFS 3.0 Capacity-Oriented and compute resources before adding VPCs.
  • You need to configure a VPC endpoint for each VPC you want to add to the SFS 3.0 Capacity-Oriented file system. Or, the file system will fail to be mounted.

Procedure for SFS Capacity-Oriented

  1. Log in to the SFS console.
  2. In the file system list, click the name of the target file system. On the displayed page, locate the Authorizations area.
  3. If no VPCs are available, create one. You can add multiple VPCs for a file system. Click Add Authorized VPC and the Add Authorized VPC dialog box is displayed. See Figure 1.

    You can select multiple VPCs from the drop-down list.

    Figure 1 Adding VPCs

  4. Click OK. A successfully added VPC is displayed in the list. When adding a VPC, the default IP address 0.0.0.0/0 is automatically added. The default read/write permission is Read-write, the default user permission is no_all_squash, and the default root permission is no_root_squash.
  5. View the VPC information in the VPC list. For details about the parameters, see Table 1.

    Table 1 Parameter description

    Parameter

    Description

    Name

    Name of the added VPC, for example, vpc-01

    Authorized Addresses/Segments

    Number of added IP addresses or IP address segments

    Operation

    The value can be Add or Delete. Add: Adds an authorized VPC. This operation configures the IP address, read/write permission, user permission, user root permission, and priority. For details, see Table 2. Delete: Deletes this VPC.

  6. Click on the left of the VPC name to view details about the IP addresses/segments added to this VPC. You can add, edit, or delete IP addresses/segments. In the Operation column of the target VPC, click Add. The Add Authorized Address/Segment dialog box is displayed. See Figure 2. Table 2 describes the parameters to be configured.

    Figure 2 Adding an authorized address or segment
    Table 2 Parameter description

    Parameter

    Description

    Authorized Address/Segment

    • Enter one IPv4 address or address segment at a time.
    • The entered IPv4 address or address segment must be valid and cannot be one starting with 0 except 0.0.0.0/0. If you add 0.0.0.0/0, any IP address within this VPC will be authorized for accessing the file system. Class D and class E IP addresses are not supported. Therefore, do not enter an IP address or address segment starting with any number ranging from 224 to 255, for example 224.0.0.1 or 255.255.255.255. IP addresses or address segments starting with 127 are also not supported. If an invalid IP address or address segment is used, the access rule may fail to be added or the added access rule cannot take effect.
    • Do not enter multiple IP addresses (separated using commas) at a time. For example, do not enter 10.0.1.32,10.5.5.10.
    • If you enter an IP address segment, enter it in the format of IP address/mask. For example, enter 192.168.1.0/24. Do not enter in the format of 192.168.1.0-255 or 192.168.1.0-192.168.1.255. The number of bits in a subnet mask must be an integer ranging from 0 to 31, and mask value 0 is valid only in 0.0.0.0/0.

    Read-Write Permission

    The value can be Read-write or Read-only. The default value is Read-write.

    User Permission

    Whether to retain the user identifier (UID) and group identifier (GID) of the shared directory. The default value is no_all_squash.

    • all_squash: The UID and GID of a shared directory are mapped to user nobody, which is applicable to public directories.
    • no_all_squash: The UID and GID of a shared directory are retained.

    This parameter is not involved when an authorized address is added for a CIFS file system.

    User Root Permission

    Whether to allow the root permission of the client. The default value is no_root_squash.

    • root_squash: Clients cannot access as the root user. When a client accesses as the root user, the user is mapped to the nobody user.
    • no_root_squash: Clients are allowed to access as the root user who has full control and access permissions of the root directories.

    This parameter is not involved when an authorized address is added for a CIFS file system.

    Priority

    The value must be an integer ranging from 0 to 100. 0 indicates the highest priority, and 100 indicates the lowest priority. In the same VPC, the permission of the IP address or address segment with the highest priority is preferentially used. If some IP addresses or address segments are of the same priority, the permission of the most recently added or modified one is used.

    For example, if the IP address for mounting is 10.1.1.32 and both 10.1.1.32 (read/write) with priority 100 and 10.1.1.0/24 (read-only) with priority 50 meet the requirements, the permission of 10.1.1.0/24 (read-only) with priority 50 is used. That is, if there is no other authorized priority, the permission of all IP addresses in the 10.1.1.0/24 segment, including 10.1.1.32, is read-only.

    For an ECS in VPC A, its IP address can be added to the authorized IP address list of VPC B, but the file system of VPC B cannot be mounted to this ECS. The VPC of the ECS and the file system must be the same.

Procedure for SFS 3.0 Capacity-Oriented

  1. Log in to the SFS console.
  2. In the file system list, click the name of the target file system. On the displayed page, locate the permissions list.
  3. If no VPCs are available, create one. Click Add VPC. See Figure 3.

    Table 3 describes the parameters.

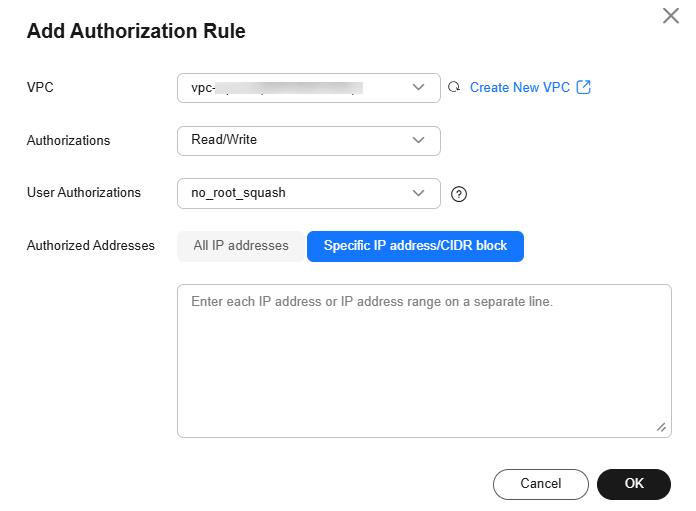

    Figure 3 Add VPC
    Table 3 Parameter description

    Parameter

    Description

    VPC

    VPC you want to add, for example, vpc-30e0. If no VPC is available, create one.

    Authorizations

    The value can be Read/Write or Read-only. The default value is Read/Write.

  4. Click OK. The added VPC will be displayed in the list.
  5. On the VPC Endpoints page, click Buy VPC Endpoint.

    The Buy VPC Endpoint page is displayed.

    Figure 4 Buy VPC Endpoint

  6. Set the parameters as prompted.

    Table 4 Parameters for purchasing an endpoint

    Parameter

    Description

    Region

    Region where the VPC endpoint is located. Ensure that this region is the same as the one where the planned SFS 3.0 Capacity-Oriented file system resides.

    VPCEP supports SFS 3.0 Capacity-Oriented only in the CN North-Beijing4, CN East-Shanghai1, and CN South-Guangzhou regions.

    Billing Mode

    Pay-per-use is preselected by default, but you will not be billed for the endpoint purchased for SFS 3.0 Capacity-Oriented file systems.

    Service Category

    Select Find a service by name.

    Enter a VPC endpoint service name based on the region selected.

    • If the CN North-Beijing4 region is selected, enter cn-north-4.com.myhuaweicloud.v4.storage.lz13.
    • If the CN South-Guangzhou region (AZ1) is selected, enter cn-south-1.com.myhuaweicloud.v4.obsv2.
    • If the CN South-Guangzhou region (AZ6) is selected, enter cn-south-1.com.myhuaweicloud.v4.obsv2.storage.lz06.
    • If the CN East-Shanghai1 region is selected, enter cn-east-3.com.myhuaweicloud.v4.storage.lz07.

    After entering the service name, click Verify.

    If Service name found is displayed, proceed with subsequent steps.

    If Service name not found is displayed, check whether the entered service name is correct. If the problem persists, submit a service ticket.

    VPC

    Select the VPC that has been added to the authorization list of the SFS 3.0 Capacity-Oriented file system.

    Tag

    Optional

    VPC endpoint tags. Each tag consists of a key and a value. You can add a maximum of 10 tags to one VPC endpoint.

    Tag keys and values must meet the requirements listed in Table 5.

    NOTE:

    If a predefined tag has been created in TMS, you can select the corresponding tag key and value.

    For details about predefined tags, see Predefined Tag Overview.

    Table 5 describes the tag parameters.
    Table 5 Tag parameter description

    Parameter

    Description

    Example Value

    Tag key

    Each tag has a unique key. You can customize the key or select the key of an existing tag created in TMS.

    A tag key:

    • Can contain 1 to 36 Unicode characters.
    • Can contain only letters, digits, hyphens (-), and underscores (_).

    Key_0001

    Tag value

    A tag value can be repetitive or left blank.

    A tag value:

    • Can contain 0 to 43 Unicode characters.
    • Can contain only letters, digits, hyphens (-), and underscores (_).

    Value_0001

  7. Click Next.

    • If you do not need to modify the specifications, click Submit.
    • If you need to modify the specifications, click Previous, modify the parameters as needed, and then click Submit.

  8. Go back to the VPC endpoint list and check whether the status of the VPC endpoint changes to Accepted. If so, the VPC endpoint has been connected to the VPC endpoint service.

Verification

After another VPC is configured for the file system, if the file system can be mounted to ECSs in the VPC and the ECSs can access the file system, the configuration is successful.

Example

A user creates an SFS Capacity-Oriented file system A in VPC-B. The network segment is 10.0.0.0/16. The user has an ECS D in VPC-C, using the private IP address 192.168.10.11 in network segment 192.168.10.0/24. If the user wants to mount file system A to ECS D and allow the file system to be read and written, the user needs to add VPC-C to file system A's VPC list, add ECS D's private IP address or address segment to the authorized addresses of VPC-C, and then set Read-Write Permission to Read-write.

The user purchases an ECS F that uses the private IP address 192.168.10.22 in the VPC-C network segment 192.168.10.0/24. If the user wants ECS F to have only the read permission for file system A and its read priority to be lower than that of ECS D, the user needs to add ECS F's private IP address to VPC-C's authorized addresses, set Read-Write Permission to Read-only, and set Priority to an integer between 0 and 100 and greater than the priority set for ECS D.
