Creating a Lineage Collection Task

Prerequisites

You have collected metadata.

Procedure

1. Sign in to the MgC console. In the navigation pane, under Project, select your big data migration project from the drop-down list.
2. In the navigation pane, choose Migration Preparations.
3. Choose Metadata Management. Under Big Data Lineage, click Create Collection Task.

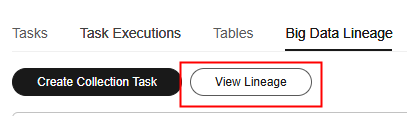

   Figure 1 Creating a lineage collection task


4. Select a job type and configure the parameters shown.

   Type	Parameter	Configuration
   Lineage template	File	Download the lineage template to the local PC and set parameters in the template. No formula is allowed in cells in the template. Otherwise, the file parsing will fail. The following fields are required: Target Database (TargetDataset): The name of the database for lineage collection. The value can contain a maximum of 128 characters. Target Table (TargetTable): The name of the target table for lineage collection. The value can contain a maximum of 256 characters. Target Connection Name (TargetConnectionName): The name of the connection to the target database for lineage collection. The value contains a maximum of 255 characters. Target Component Type (TargetComponentType): The type of the target component for lineage collection. Only Hive SQL and MaxCompute are supported. Source Dataset (SourceDataset): The name of the upstream database for the target table. The value can contain a maximum of 128 characters. Source Table (SourceTable): The name of the upstream table for the target table. The value can contain a maximum of 256 characters. Source Connection Name (SourceConnectionName): The name of the connection to the upstream database for the target table. The value contains a maximum of 255 characters. Source Component Type (SourceComponentType): The type of the upstream component for the target table. Only Hive SQL and MaxCompute are supported. Job Name (JobName): The name of the involved DataArts Studio or DataWorks job. The following fields are optional: Job ID (JobId): The ID of the involved DataArts Studio or DataWorks job. To obtain an ID of a DataArts Studio job, you can right-click the corresponding job on the job development page of DataArts Studio and copy the ID. Job Type (JobType): The type of the involved DataArts Studio or DataWorks job. If the involved job is a DataArts Studio job, the job type can be MRS Hive SQL, MRS Presto SQL, or MRS Spark SQL. Job Cron (JobCron): The job execution period, which is a Cron expression. Job Workspace (JobWorkspace): The workspace of the involved job. A workspace is a basic unit used to manage tasks, members, roles, and permissions. All development work is completed in workspaces. Multiple types of data sources can be connected to a single workspace. Go back to the console and click Add to upload the saved file to MgC. CAUTION: The file to be uploaded must be in .xlsx format. A maximum of 300,000 rows can be contained, and the file size cannot exceed 50 MB. A maximum of 1,000 metadata connections can be included. A single table can have a maximum of 1,000 upstream tables.

   • Lineage template.
     1. Click Template Download to download the template to the local PC.
     2. Complete the lineage template. The following parameters are mandatory:
        • Target Dataset (TargetDataset)
        • Target Table (TargetTable)
        • Target Connection Name (TargetConnectionName)
        • Target Component Type (TargetComponentType)
        • Upstream Dataset (SourceDataset)
        • Source Table (SourceTable)
        • Source Connection Name (SourceConnectionName)
        • Source Component Type (SourceComponentType)
        • Job Name (JobName)


        • The value of Target Component Type and Upstream Component Type in the template can be Hive SQL or MaxCompute.
        • No formula is allowed in cells in the template. Otherwise, the parsing fails.
     3. Go back to the console and click Add to upload the saved file to MgC.


        The file size cannot exceed 50 MB.

5. Click Confirm. The data lineage collection task is created. The system automatically starts collecting data lineage. On the Big Data Lineage tab, click a lineage collection task name or click View in the Operation column to open the Task Details page.
6. Wait until the task status changes to Completed. Then click View Lineage above the task list to view the lineage graph.
