Creating Alarm Rules
Scenarios
You can set alarm rules and notifications for MetaStudio to stay informed about its status and receive timely alarms.
This section describes how to set alarm rules for MetaStudio.
Procedure
- Log in to the management console.
- In the navigation pane, choose Management & Governance > Cloud Eye.
- In the navigation pane, choose Alarm Management > Alarm Rules.
- Click Create Alarm Rule or select and modify an existing alarm rule for MetaStudio.
- Configure basic information of the alarm rule.

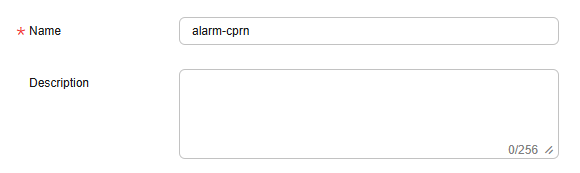

Figure 1 Alarm rule information
Table 1 Basic parameters for alarm rules Parameter
Description
Example Value
Name
Name of the alarm rule. The system generates a random name, and you can change it as needed.
alarm-cprn
Description
Description of the alarm rule. This parameter is optional.
-
- Select an object to be monitored and configure alarm parameters.

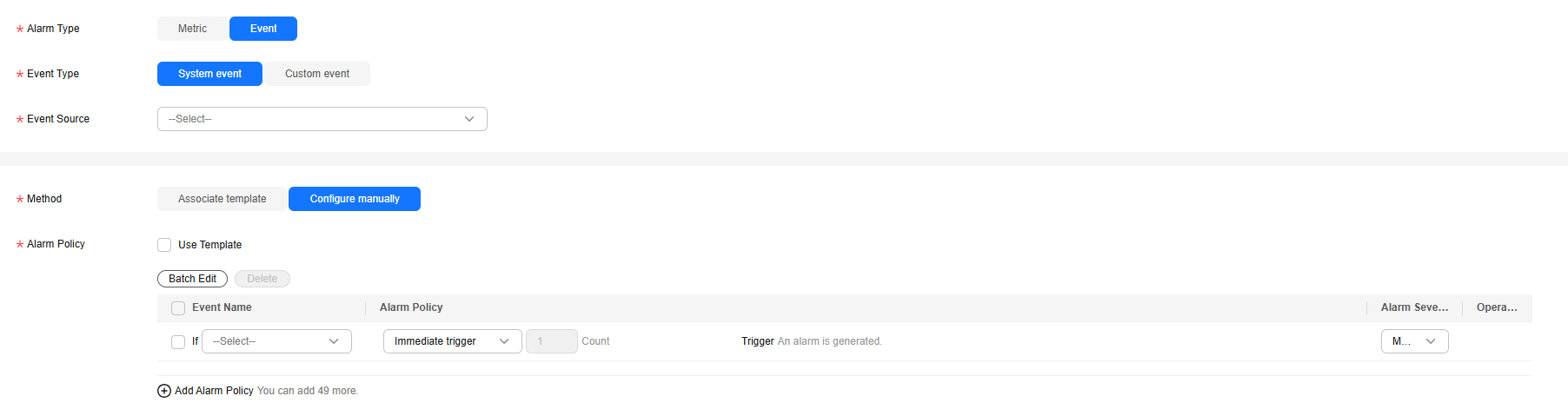

If you select Event for Alarm Type, you can create an alarm rule for MetaStudio events.Figure 2 Event alarm configuration
Key parameters are described below. For details, see Creating an Alarm Rule and Notifications.
- Event Type: You can select System event or Custom event.
- Event Source: Select the name of the cloud service from which events are reported.
- Method: Select Associate template or Configure manually.
- Alarm Policy: The policy for triggering an alarm.
- Set alarm notification parameters.
To send alarm notifications by email, SMS, HTTP, or HTTPS, enable Alarm Notifications.
For details about related parameters, see Creating an Alarm Rule and Notifications.
- Click Create.
