Importing Backup Graph Data from OBS

You can import a backup file exported to OBS to a graph. After the import is successful, you can use the backup to restore the graph instance.

  • Graphs of the database edition do not support this function.
  • Only graphs of memory edition 2.3.16 or later support this function. For graphs of earlier versions, you need to first upgrade the graph to the latest version by referring to Upgrading an Old Version Graph before importing.

The procedure is as follows:

  1. Log in to the GES management console and choose Backup Management from the navigation pane on the left.
  2. In the upper right corner of the page displayed, click Import.
  3. In the dialog box that is displayed, select the graph to be imported and the OBS path where the backup is stored, and click OK to import the backup.

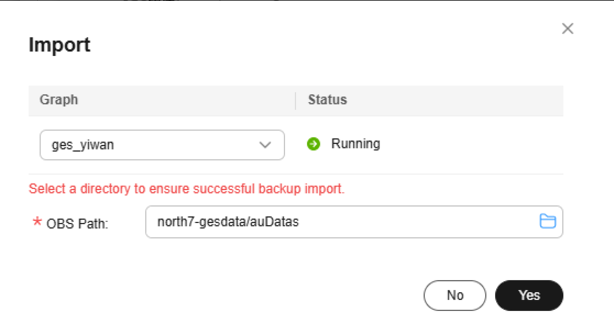

    Figure 1 Importing a backup

    Select a directory (folder) to ensure successful backup import.

  4. After the task is delivered, you can view its execution status on the Task Center page.
