Configuring a Tracker
Scenarios
On the CTS console, you can add configurations such as OBS or LTS transfer for the created data trackers.
You can select whether to send recorded traces to an OBS bucket for long-term storage. You can also transfer management traces recorded by other accounts to a same OBS bucket for centralized management.
After the tracker configuration is complete, CTS will immediately start recording operations under the new settings.
This section describes how to configure a data tracker.
Constraints
- For global services, you must configure trackers on the CTS console in the central region (CN-Hong Kong). This configuration enables the function of transferring traces to OBS or LTS. This function will not take effect if you perform the configuration on the CTS console in any region outside the central region.
For details about Huawei Cloud global services, see Notes and Constraints.
- There are three storage classes of OBS buckets: Standard, Infrequent Access, and Archive. CTS frequently accesses OBS buckets storing transferred traces. Therefore, when you create an OBS bucket on the CTS console, it defaults to a single-AZ private bucket with Standard storage. If you need other configurations, create the bucket on OBS Console in advance. For details, see Creating a Bucket.
- When configuring the transfer to OBS, you need to select an OBS bucket. If you delete the OBS bucket, CTS cannot transfer traces to OBS, and you cannot query traces of the last seven days.
- After you configure the transfer in CTS, the retention period of the transferred trace is subject to the configuration on the OBS/LTS console.
- First, create an OBS bucket and select a storage class on OBS Console by referring to Creating a Bucket. The storage period varies with the selected storage class. When configuring the tracker for transfer traces to OBS, select the created OBS bucket. By default, the retention period of transferred traces is the same as that configured on OBS.
- The retention period of trace logs transferred to LTS is subject to the log retention period configured in LTS. For details, see Managing Log Groups.
Prerequisites
You have enabled CTS and created a data tracker.
Configuring a Data Tracker
- Log in to the management console.
- Click
in the upper left corner to select the desired region and project.
- Click
in the upper left corner and choose Management & Governance > Cloud Trace Service. The CTS console is displayed.
- Choose Tracker List in the navigation pane.

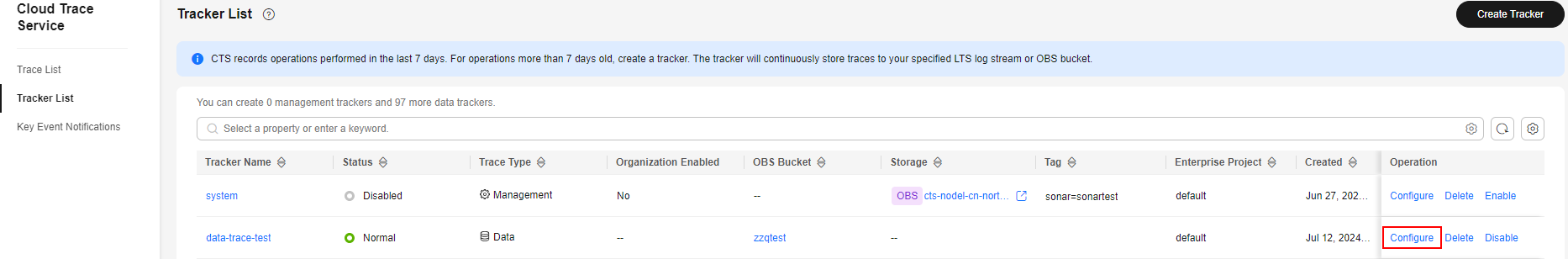

- Click Configure in the Operation column in the row of the target data tracker.
Figure 1 Configuring a tracker
- On the Configure Transfer page, modify the transfer parameters of the tracker. When you configure a data tracker, the OBS bucket name of the data trace source is set as OBS Bucket by default and cannot be modified. You can only query operation records of the last seven days on the CTS console. To store and query operation records beyond seven days, transfer them to OBS or LTS. For details, see Table 1 and Table 2.
Table 1 Parameters for configuring the transfer to OBS Parameter
Description
Transfer to OBS
If you select Yes, select an existing OBS bucket or create one on the Configure Tracker page and set File Prefix.
When Transfer to OBS is disabled, no operation is required.
Create a cloud service agency.
(Mandatory) If you select this check box, CTS automatically creates a cloud service agency when you create a tracker. The agency authorizes you to use OBS.
OBS Bucket
New: An OBS bucket will be created automatically with the name you enter.
NOTE:
The OBS bucket created on this page is a single-AZ private bucket with Standard storage. If you need other configurations, create the bucket on OBS Console in advance and choose Existing to select it.
Existing: Select an existing OBS bucket in the current region.
Select Bucket
When you select New, enter an OBS bucket name. The OBS bucket name cannot be empty. It can contain 3 to 63 characters, including only lowercase letters, digits, hyphens (-), and periods (.). It cannot contain two consecutive periods (for example, my..bucket). A period (.) and a hyphen (-) cannot be adjacent to each other (for example, my-.bucket and my.-bucket). Do not use an IP address as a bucket name.
If you select Existing for OBS Bucket, select an existing OBS bucket.
Retention Period
The duration for storing traces in the OBS bucket. This configuration will apply to the selected bucket and all files in it. Different compliance standards require different trace retention periods. You are advised to set the retention period to at least 180 days.- For a data tracker, you can set the duration to 30 days, 60 days, 90 days, 180 days, 3 years, or the same as that of OBS.
File Prefix
A file prefix is used to mark transferred trace files. The prefix you set will be automatically added to the beginning of the file names, facilitating file filtering. Enter 0 to 64 characters. Only letters, digits, underscores (_), hyphens (-), and periods (.) are allowed.
Compression
The usage of object storage space can be reduced.- Do not compress: Transfer files in the *.json format.
- gzip: Transfer files in *.json.gz format.
Sort by Cloud Service
- When this function is enabled, the cloud service name is added to the transfer file path, and multiple small files are generated in OBS. Example: /CloutTrace/cn-north-7/2022/11/8/doctest/Cloud service/_XXX.json.gz
- When this function is disabled, the cloud service name will not be added to the transfer file path. Example: /CloutTrace/cn-north-7/2022/11/8/doctest/_XXX.json.gz
Transfer Path
Log transfer path is automatically set by the system.
Verify Trace File
When this function is enabled, integrity verification will be performed to check whether trace files in OBS buckets have been tampered with. For details about file integrity verification, see Verifying Trace File Integrity.
Table 2 Parameters for configuring the transfer to LTS Parameter
Description
Transfer to LTS
When Transfer to LTS is enabled, traces are transferred to the log stream.
Log Group
When Transfer to LTS is enabled, the default log group name CTS is set. When Transfer to LTS is disabled, no operation is required.
- Click Next > Configure to complete the configuration of the data tracker.
You can then view the tracker details on the Tracker List page.
NOTE:
Traces recorded by CTS are delivered periodically to the OBS bucket for storage. If you configure an OBS bucket for a tracker, traces generated during the current cycle (usually several minutes) will be delivered to the configured OBS bucket. For example, if the current cycle is from 12:00:00 to 12:05:00 and you configure an OBS bucket for a tracker at 12:02:00, traces received from 12:00:00 to 12:02:00 will also be delivered to the configured OBS bucket for storage at 12:05:00.
- (Optional) On the Tracker List page, click
in the Tag column to add tags to the tracker.
Figure 2 Adding a tagTags are key-value pairs, which are used to identify, classify, and search for trackers. Tracker tags are used to filter and manage trackers only. A maximum of 20 tags can be added to a tracker.
If your organization has configured tag policies for CTS, add tags to trackers based on the policies. For details about tag policies, see Overview of a Tag Policy. For details about tag management, see Overview of a Tag.Table 3 Tag parameters Parameter
Description
Example
Tag key
A tag key of a tracker must be unique. You can customize a key or select the key of an existing tag created in Tag Management Service (TMS).
A tag key:
- Can contain 1 to 128 characters.
- Can contain letters, digits, spaces, and special characters _.:=+-@, but cannot start or end with a space or start with _sys_.
Key_0001
Tag value
A tag value can be repetitive or left blank.
A tag value:
- Can contain 0 to 255 characters.
- Can contain letters, digits, spaces, and special characters _.:/=+-@
Value_0001
