Configuring a Dedicated Load Balancer for an OpenSearch Cluster

CSS integrates shared load balancers, through which you can enable access to a cluster from the public network as well as through the VPC Endpoint service. Dedicated load balancers provide higher performance and more diverse features than shared load balancers. This topic describes how to configure a dedicated load balancer for a cluster.

Scenario

Advantages of connecting to a cluster through a dedicated load balancer:

A non-security cluster can also use the capabilities of the Elastic Load Balance (ELB) service.
You can use custom certificates for HTTPS two-way authentication.
Seven-layer traffic monitoring and alarm configuration are supported, allowing you to keep close track of the cluster status.

There are eight different ELB service forms for clusters in different security modes to connect to a dedicated load balancer. Table 1 describes the ELB capabilities for different cluster configurations. Table 2 describes the configurations for different ELB service forms.

**Table 1** ELB capabilities for different clusters
Security Mode	Service Form Provided by ELB for External Systems	ELB Load Balancing	ELB Traffic Monitoring	ELB Two-way Authentication
Non-security	No authentication	Yes	Yes	No
Non-security	One-way authentication Two-way authentication	Yes	Yes	Yes
Security mode + HTTP	Password authentication	Yes	Yes	No
Security mode + HTTP	One-way authentication + Password authentication Two-way authentication + Password authentication	Yes	Yes	Yes
Security mode + HTTPS	One-way authentication + Password authentication Two-way authentication + Password authentication	Yes	Yes	Yes

**Table 2** Configurations for different ELB service forms depending on the cluster
Security Mode	Service Form Provided by ELB for External Systems	ELB Listener			Backend Server Group
Security Mode	Service Form Provided by ELB for External Systems	Frontend Protocol	Frontend Port	SSL Authentication	Backend Protocol	Health Check Port	Health Check Path
Non-security	No authentication	HTTP	9200	No authentication	HTTP	9200	/
	One-way authentication	HTTPS	9200	One-way authentication	HTTP	9200
	Two-way authentication	HTTPS	9200	Two-way authentication	HTTP	9200
Security mode + HTTP	Password authentication	HTTP	9200	No authentication	HTTP	9200	/_opendistro/_security/health
	One-way authentication + Password authentication	HTTPS	9200	One-way authentication	HTTP	9200
	Two-way authentication + Password authentication	HTTPS	9200	Two-way authentication	HTTP	9200
Security mode + HTTPS	One-way authentication + Password authentication	HTTPS	9200	One-way authentication	HTTPS	9200
Security mode + HTTPS	Two-way authentication + Password authentication	HTTPS	9200	Two-way authentication	HTTPS	9200

To connect a CSS cluster to a dedicated load balancer, perform the following steps:

If the ELB listener uses HTTPS, prepare a signature certificate and upload it to the ELB console: Preparing and Uploading a Self-Signed Certificate
Create a dedicated load balancer on the ELB console: Creating a Dedicated Load Balancer
Enable load balancing for the Elasticsearch or OpenSearch cluster: Connecting a Cluster to a Load Balancer
Connect to the cluster through an instance of a dedicated load balancer: Accessing a Cluster Using cURL Commands

Constraints

You are not advised to connect a load balancer that has been associated with a public IP address to a non-security mode cluster. Access from the public network using such a load balancer may cause security risks because a non-security mode cluster can be accessed using HTTP without security authentication.
HTTPS-enabled security-mode clusters do not support HTTP-based frontend authentication. If the frontend uses HTTP, disable security mode for the clusters first. For details, see Changing the Security Mode of an Elasticsearch Cluster. Before changing the security mode, disable load balancing first. After the security mode is changed, enable load balancing again.

Preparing and Uploading a Self-Signed Certificate

If the ELB listener uses HTTPS, prepare a self-signed certificate by referring to the steps in this section and upload it to the ELB console as a server certificate or CA certificate.

You are advised to use a certificate purchased in Cloud Certificate Manager (CCM) or issued by a trusted authority.

Run the following commands to create a self-signed certificate:





           mkdir ca
mkdir server
mkdir client

#Use OpenSSL to create a CA certificate.
cd ca
#Create the OpenSSL configuration file ca_cert.conf for the CA certificate.
cat >ca_cert.conf <<EOF
[ req ]
distinguished_name     = req_distinguished_name
prompt                 = no

[ req_distinguished_name ]
 O                      = ELB
EOF
#Create private key file ca.key for the CA certificate.
openssl genrsa -out ca.key 2048
#Create the CSR file ca.csr for the CA certificate.
openssl req -out ca.csr -key ca.key -new -config ./ca_cert.conf
#Create a self-signed CA certificate ca.crt.
openssl x509 -req -in ca.csr -out ca.crt -sha1 -days 5000 -signkey ca.key
#Convert the CA certificate format to p12.
openssl pkcs12 -export -clcerts -in ca.crt -inkey ca.key -out ca.p12
#Convert the CA certificate format to JKS.
keytool -importkeystore -srckeystore ca.p12 -srcstoretype PKCS12 -deststoretype JKS -destkeystore ca.jks


#Use the CA certificate to issue a server certificate.
cd ../server
#Create the OpenSSL configuration file server_cert.conf for the server certificate. Change the CN field to the domain name or IP address of the server as required.
cat >server_cert.conf <<EOF
[ req ]
distinguished_name     = req_distinguished_name
prompt                 = no

[ req_distinguished_name ]
 O                      = ELB
 CN                     = 127.0.0.1
EOF
#Create the private key file server.key for the server certificate.
openssl genrsa -out server.key 2048
#Create the CSR request file server.csr for the server certificate.
openssl req -out server.csr -key server.key -new -config ./server_cert.conf
#Use the CA certificate to issue the server certificate server.crt.
openssl x509 -req -in server.csr -out server.crt -sha1 -CAcreateserial -days 5000 -CA ../ca/ca.crt -CAkey ../ca/ca.key
#Convert the server certificate format to p12.
openssl pkcs12 -export -clcerts -in server.crt -inkey server.key -out server.p12
#Convert the service certificate format to JKS.
keytool -importkeystore -srckeystore server.p12 -srcstoretype PKCS12 -deststoretype JKS -destkeystore server.jks


#Use the CA certificate to issue a client certificate.
cd ../client
#Create the OpenSSL configuration file client_cert.conf for the client certificate. Change the CN field to the domain name or IP address of the server as required.
cat >client_cert.conf <<EOF
[ req ]
distinguished_name     = req_distinguished_name
prompt                 = no

[ req_distinguished_name ]
O                      = ELB
CN                     = 127.0.0.1
EOF
#Create private key client.key for the client certificate.
openssl genrsa -out client.key 2048
#Create the CSR file client.csr for the client certificate.
openssl req -out client.csr -key client.key -new -config ./client_cert.conf
#Use the CA certificate to issue the client certificate client.crt.
openssl x509 -req -in client.csr -out client.crt -sha1 -CAcreateserial -days 5000 -CA ../ca/ca.crt -CAkey ../ca/ca.key
#Convert the client certificate to a p12 file that can be identified by the browser.
openssl pkcs12 -export -clcerts -in client.crt -inkey client.key -out client.p12
#Convert the client certificate format to JKS.
keytool -importkeystore -srckeystore client.p12 -srcstoretype PKCS12 -deststoretype JKS -destkeystore client.jks








Upload the self-signed certificate. For details, see Adding a Certificate.

Creating a Dedicated Load Balancer

Create a dedicated load balancer. For details, see Creating a Dedicated Load Balancer. Table 3 describes the parameters required for connecting a CSS cluster with a dedicated load balancer.

**Table 3** Parameters for connecting a CSS cluster with a dedicated load balancer
Parameter	Description	Example
Type	Load balancer type. Select Dedicated.	Dedicated
Billing Mode	Billing mode of the dedicated load balancer.	Pay-per-use
Region	Region where the CSS cluster is located.	-
IP as Backend Servers	A CSS cluster can be connected only after the cross-VPC backend is enabled.	Enabled
Network Type	Type of the network used by the load balancer to provide services to external systems. CSS supports Private IPv4 network and IPv6 network. When IPv6 network is selected, Private IP Address and IPv6 address are displayed under Load balancing instance after CSS is connected to the load balancer. EIP is displayed only when the dedicated load balancer is associated with a shared bandwidth. When Private IPv4 network is selected, Private IP Address and EIP are displayed under Load balancing instance after CSS is connected to the load balancer. NOTE: CSS supports IPv6 networks only in the CN East 2 region. In other regions, only private IPv4 networks are supported.	Private IPv4 network
VPC	VPC where the load balancer works. This parameter is mandatory no matter which network type is selected. Select the VPC of the CSS cluster.	-
Subnet	Subnet where the load balancer is to be created. This parameter is mandatory no matter which network type is selected. Select the subnet of the CSS cluster.	-
Specifications	You are advised to select Application load balancing (HTTP/HTTPS), which provides better functionality and performance.	Application load balancing (HTTP/HTTPS) Small I

Connecting a Cluster to a Load Balancer

Log in to the CSS management console.
On the Clusters page, select the cluster you want to connect to the load balancer and click the cluster name. The cluster information page is displayed.

In the navigation pane, choose Load Balancing. Toggle on Load Balancing and configure basic load balancing information.

**Table 4** Configuring load balancing
Parameter	Description
Load Balancer	Select a dedicated load balancer created earlier. A CSS cluster is a managed resource. The selected load balancer becomes available only after IP as Backend Servers is enabled.
Agency	Select an IAM agency to authorize CSS to access and use ELB resources using the current account. If you are configuring an agency for the first time, click Automatically Create IAM Agency to create css-elb-agency. If there is an IAM agency automatically created earlier, you can click One-click authorization to delete the ELB Administrator role or the ELB FullAccess system policy, and add the following custom policies instead to implement more refined permissions control. "elb:loadbalancers:list", "elb:loadbalancers:get", "elb:certificates:list", "elb:healthmonitors:", "elb:members:", "elb:pools:", "elb:listeners:" To use Automatically Create IAM Agency and One-click authorization, the following minimum permissions are needed: "iam:agencies:listAgencies", "iam:roles:listRoles", "iam:agencies:getAgency", "iam:agencies:createAgency", "iam:permissions:listRolesForAgency", "iam:permissions:grantRoleToAgency", "iam:permissions:listRolesForAgencyOnProject", "iam:permissions:revokeRoleFromAgency", "iam:roles:createRole" To use an IAM agency, the following minimum permissions are needed: "iam:agencies:listAgencies", "iam:agencies:getAgency", "iam:permissions:listRolesForAgencyOnProject", "iam:permissions:listRolesForAgency"

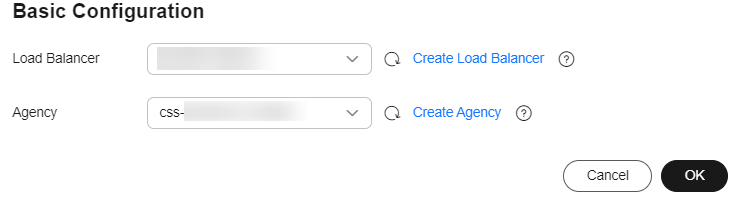

Figure 1 Enabling load balancing

Click OK to enable load balancing.

In the Listener Configuration area, click

to configure listener information.

**Table 5** Listener configuration
Parameter	Description
Frontend Protocol	Protocol used by the client and listener to distribute traffic. Select HTTP or HTTPS. Select a protocol as required.
Frontend Port	Port used by the client and listener to distribute traffic. Set this parameter based on site requirements.
SSL Authentication	Authentication mode for the client to access the server. Set this parameter only when Frontend Protocol is set to HTTPS. Select an authentication mode that suits your needs.
Server Certificate	The server certificate is used for SSL handshake. The certificate content and private key must be provided. It is required only when Frontend Protocol is set to HTTPS. Select the server certificate created in Preparing and Uploading a Self-Signed Certificate.
CA Certificate	Also called client CA public key certificate. It is used to verify the issuer of a client certificate. It is required only when SSL Authentication is set to Two-way authentication. Select the CA certificate created in Preparing and Uploading a Self-Signed Certificate. When HTTPS two-way authentication is enabled, an HTTPS connection can be established only when the client can provide the certificate issued by a trusted CA.

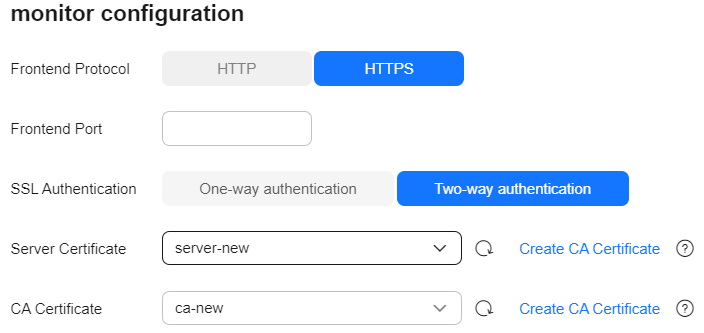

Figure 2 Listener configuration

(Optional) In the Listener Configuration area, click Settings next to Access Control to go to the Listeners page of the load balancer. Click Configure in the Access Control column to configure the list of IP addresses that are allowed to access the cluster through the load balancer. If this parameter is not set, all IP addresses will be allowed to access the cluster.

In the Health Check area, you can view the health check result for each node IP address.

**Table 6** Health check result description
Health Check Result	Description
Normal	The node IP address is connected.
Abnormal	The node IP address is disconnected.

Accessing a Cluster Using cURL Commands

In the navigation pane on the left, choose Clusters.
On the Clusters page, click the name of the cluster you want to access. The Cluster Information page is displayed.
In the navigation pane, choose Load Balancing. Record the private or public IP address or IPv6 address of the load balancer, as well as the frontend protocol/port of the listener.

You are not advised to connect a load balancer that has been associated with a public IP address to a non-security mode cluster. Access from the public network using such a load balancer may cause security risks because a non-security mode cluster can be accessed using HTTP without security authentication.

Run the following cURL commands on an ECS to check whether the dedicated load balancer can connect to the cluster.

**Table 7** Commands for accessing different types of clusters
Security Mode	Service Form Provided by ELB for External Systems	cURL Command for Accessing a Cluster
Non-security	No authentication	curl http://IP:port
	One-way authentication	curl -k --cert ./client.crt --key ./client.key https://IP:port
	Two-way authentication	curl --cacert ./ca.crt --cert ./client.crt --key ./client.key https://IP:port
Security mode + HTTP	Password authentication	curl http://IP:port -u user:pwd
	One-way authentication + Password authentication	curl -k --cert ./client.crt --key ./client.key https://IP:port -u user:pwd
	Two-way authentication + Password authentication	curl --cacert ./ca.crt --cert ./client.crt --key ./client.key https://IP:port -u user:pwd
Security mode + HTTPS	One-way authentication + Password authentication	curl -k --cert ./client.crt --key ./client.key https://IP:port -u user:pwd
Security mode + HTTPS	Two-way authentication + Password authentication	curl --cacert ./ca.crt --cert ./client.crt --key ./client.key https://IP:port -u user:pwd

**Table 8** Variables
Variable	Description
IP	IP address of a load balancer instance.
port	Frontend protocol and port configured for the listener.
user	Username of the cluster. This parameter is required only for a security-mode cluster.
pwd	Password of the username above. This parameter is required only for a security-mode cluster.

If cluster information is returned, the connection is successful.

Sample Code for Accessing a Cluster Using HTTPS Two-way Authentication Through a Load Balancer (Java)

This section provides sample code that can be used on a Java client to access a cluster using HTTPS two-way authentication through a load balancer.

Sample Code for ESSecuredClientWithCerDemo





           import org.apache.commons.io.IOUtils;
import org.apache.http.auth.AuthScope;
import org.apache.http.auth.UsernamePasswordCredentials;
import org.apache.http.client.CredentialsProvider;
import org.apache.http.impl.client.BasicCredentialsProvider;
import org.apache.http.HttpHost;
import org.apache.http.nio.conn.ssl.SSLIOSessionStrategy;
import org.elasticsearch.action.search.SearchRequest;
import org.elasticsearch.action.search.SearchResponse;
import org.elasticsearch.client.RequestOptions;
import org.elasticsearch.client.RestClient;
import org.elasticsearch.client.RestClientBuilder;
import org.elasticsearch.client.RestHighLevelClient;
import org.elasticsearch.index.query.QueryBuilders;
import org.elasticsearch.search.SearchHit;
import org.elasticsearch.search.SearchHits;
import org.elasticsearch.search.builder.SearchSourceBuilder;
import java.io.FileInputStream;
import java.io.IOException;
import java.security.KeyStore;
import java.security.SecureRandom;
import javax.net.ssl.HostnameVerifier;
import javax.net.ssl.KeyManagerFactory;
import javax.net.ssl.SSLContext;
import javax.net.ssl.SSLSession;
import javax.net.ssl.TrustManagerFactory;
public class ESSecuredClientWithCerDemo {
    private static final String KEY_STORE_PWD = "";
    private static final String TRUST_KEY_STORE_PWD = "";
    private static final String CA_JKS_PATH = "ca.jks";
    private static final String CLIENT_JKS_PATH = "client.jks";
    private static final String ELB_ADDRESS = "127.0.0.1";
    private static final int ELB_PORT = 9200;
    private static final String CSS_USERNAME = "user";
    private static final String CSS_PWD = "";
    public static void main(String[] args) {
       // Create a client.
        RestHighLevelClient client = initESClient(ELB_ADDRESS, CSS_USERNAME, CSS_PWD);
        try {
            // Search by using match_all, which is equivalent to {\"query\": {\"match_all\": {}}}.
            SearchRequest searchRequest = new SearchRequest();
            SearchSourceBuilder searchSourceBuilder = new SearchSourceBuilder();
            searchSourceBuilder.query(QueryBuilders.matchAllQuery());
            searchRequest.source(searchSourceBuilder);
            // query
            SearchResponse searchResponse = client.search(searchRequest, RequestOptions.DEFAULT);
            System.out.println("query result: " + searchResponse.toString());
            SearchHits hits = searchResponse.getHits();
            for (SearchHit hit : hits) {
                System.out.println(hit.getSourceAsString());
            }
            System.out.println("query success");
            Thread.sleep(2000L);
        } catch (InterruptedException | IOException e) {
            e.printStackTrace();
        } finally {
            IOUtils.closeQuietly(client);
        }
    }
    private static RestHighLevelClient initESClient(String clusterAddress, String userName, String password) {
        final CredentialsProvider credentialsProvider = new BasicCredentialsProvider();
        credentialsProvider.setCredentials(AuthScope.ANY, new UsernamePasswordCredentials(userName, password));
        SSLContext ctx = null;
        try {
            KeyStore ks = getKeyStore(CLIENT_JKS_PATH, KEY_STORE_PWD, "JKS");
            KeyManagerFactory kmf = KeyManagerFactory.getInstance("SunX509");
            kmf.init(ks, KEY_STORE_PWD.toCharArray());
            KeyStore tks = getKeyStore(CA_JKS_PATH, TRUST_KEY_STORE_PWD, "JKS");
            TrustManagerFactory tmf = TrustManagerFactory.getInstance("SunX509");
            tmf.init(tks);
            ctx = SSLContext.getInstance("SSL", "SunJSSE");
            ctx.init(kmf.getKeyManagers(), tmf.getTrustManagers(), new SecureRandom());
        } catch (Exception e) {
            e.printStackTrace();
        }
        SSLIOSessionStrategy sessionStrategy = new SSLIOSessionStrategy(ctx, new HostnameVerifier() {
            @Override
            public boolean verify(String arg0, SSLSession arg1) {
                return true;
            }
        });
        SecuredHttpClientConfigCallback httpClientConfigCallback = new SecuredHttpClientConfigCallback(sessionStrategy,
            credentialsProvider);
        RestClientBuilder builder = RestClient.builder(new HttpHost(clusterAddress, ELB_PORT, "https"))
            .setHttpClientConfigCallback(httpClientConfigCallback);
        RestHighLevelClient client = new RestHighLevelClient(builder);
        return client;
    }
    private static KeyStore getKeyStore(String path, String pwd, String type) {
        KeyStore keyStore = null;
        FileInputStream is = null;
        try {
            is = new FileInputStream(path);
            keyStore = KeyStore.getInstance(type);
            keyStore.load(is, pwd.toCharArray());
        } catch (Exception e) {
            e.printStackTrace();
        } finally {
            IOUtils.closeQuietly(is);
        }
        return keyStore;
    }
}








Sample Code for SecuredHttpClientConfigCallback





           import org.apache.http.client.CredentialsProvider;
import org.apache.http.impl.nio.client.HttpAsyncClientBuilder;
import org.apache.http.nio.conn.ssl.SSLIOSessionStrategy;
import org.elasticsearch.client.RestClientBuilder;
import org.elasticsearch.common.Nullable;
import java.util.Objects;
class SecuredHttpClientConfigCallback implements RestClientBuilder.HttpClientConfigCallback {
    @Nullable
    private final CredentialsProvider credentialsProvider;
    /**
     * The {@link SSLIOSessionStrategy} for all requests to enable SSL / TLS encryption.
     */
    private final SSLIOSessionStrategy sslStrategy;
    /**
     * Create a new {@link SecuredHttpClientConfigCallback}.
     *
     * @param credentialsProvider The credential provider, if a username/password have been supplied
     * @param sslStrategy         The SSL strategy, if SSL / TLS have been supplied
     * @throws NullPointerException if {@code sslStrategy} is {@code null}
     */
    SecuredHttpClientConfigCallback(final SSLIOSessionStrategy sslStrategy,
        @Nullable final CredentialsProvider credentialsProvider) {
        this.sslStrategy = Objects.requireNonNull(sslStrategy);
        this.credentialsProvider = credentialsProvider;
    }
    /**
     * Get the {@link CredentialsProvider} that will be added to the HTTP client.
     *
     * @return Can be {@code null}.
     */
    @Nullable
    CredentialsProvider getCredentialsProvider() {
        return credentialsProvider;
    }
    /**
     * Get the {@link SSLIOSessionStrategy} that will be added to the HTTP client.
     *
     * @return Never {@code null}.
     */
    SSLIOSessionStrategy getSSLStrategy() {
        return sslStrategy;
    }
    /**
     * Sets the {@linkplain HttpAsyncClientBuilder#setDefaultCredentialsProvider(CredentialsProvider) credential provider},
     *
     * @param httpClientBuilder The client to configure.
     * @return Always {@code httpClientBuilder}.
     */
    @Override
    public HttpAsyncClientBuilder customizeHttpClient(final HttpAsyncClientBuilder httpClientBuilder) {
        // enable SSL / TLS
        httpClientBuilder.setSSLStrategy(sslStrategy);
        // enable user authentication
        if (credentialsProvider != null) {
            httpClientBuilder.setDefaultCredentialsProvider(credentialsProvider);
        }
        return httpClientBuilder;
    }
}








pom.xml Sample Code





           <?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>1</groupId>
    <artifactId>ESClient</artifactId>
    <version>1.0-SNAPSHOT</version>
    <name>ESClient</name>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <elasticsearch.version>7.10.2</elasticsearch.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.elasticsearch.client</groupId>
            <artifactId>transport</artifactId>
            <version>${elasticsearch.version}</version>
        </dependency>
        <dependency>
            <groupId>org.elasticsearch</groupId>
            <artifactId>elasticsearch</artifactId>
            <version>${elasticsearch.version}</version>
        </dependency>
        <dependency>
            <groupId>org.elasticsearch.client</groupId>
            <artifactId>elasticsearch-rest-high-level-client</artifactId>
            <version>${elasticsearch.version}</version>
        </dependency>
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>2.11.0</version>
        </dependency>
    </dependencies>
</project>
