Configuring Storage-Compute Decoupling for an Elasticsearch Cluster

Scenario

With storage-compute decoupling, you freeze an index and then transfer historical data to OBS for cold data storage. This allows you to reduce storage costs.

In terms of how frequent data is accessed, data can be divided into cold and hot data. Data newly written in is usually hot data, which is usually stored on SSDs for fast retrieval. As time goes by, the data is no longer updated and the query QPS decreases, the data has turned into cold data. By this time, you transfer the data to OBS for less expensive storage. In the meantime, you can still keep hot data on SSDs.

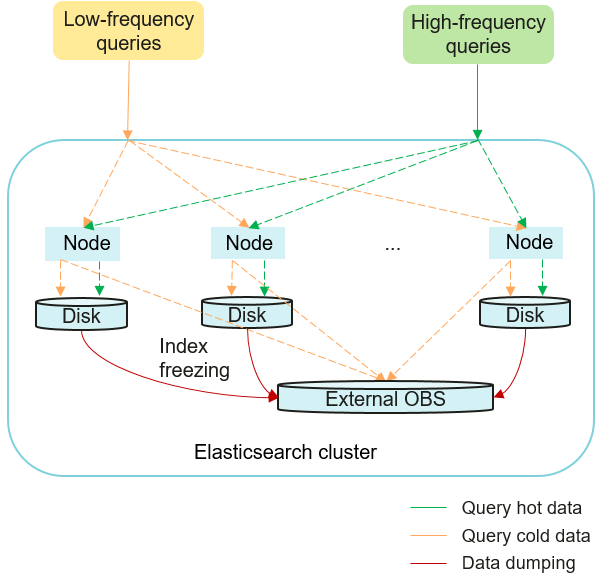

Figure 1 Decoupled storage and compute

Storage-compute decoupling enables index lifecycle management.

• Hot indexes are writable, and their data can be retrieved within milliseconds.
• Frozen indexes correspond to historical data that is rarely accessed for a long time and is dumped to OBS for less expensive storage. This also frees up SSDs for hot data. It may take seconds or even minutes to retrieve data stored in a frozen index.
• If historical data in OBS becomes obsolete, you can close the corresponding indexes to make these indexes unsearchable.
• For closed indexes whose data is stored in OBS, you can change their storage class in OBS from Standard to Archive to further cut the storage cost.

  By default, an archived index is unsearchable, but you can restore it to make it searchable while within the restoration validity period.

• Index data stored in OBS Archive can be automatically deleted based on a predefined policy to reclaim storage resources.

This section describes how to use storage-compute decoupling after accessing a cluster using Kibana.

Constraints

• Only Elasticsearch 7.6.2, Elasticsearch 7.10.2, and OpenSearch 1.3.6 support storage-compute decoupling. Archive storage is available only for Elasticsearch 7.10.2 clusters whose image version is 24.3.0.C001 or later.

• While an index is being frozen, the system sets the index to the read-only state. Even after the data in the index is dumped to OBS, the index remains read-only and no data can be written into the index.
• During index freezing, the data in it can still be queried. After the freezing is complete, the index is closed and then re-opened. After that, the index cannot be queried, and the cluster may be in the red status for a short time. The index is restored after being opened.
• Dumping the data in an index to OBS consumes network bandwidth.
• After an index is frozen, the data in the index is dumped to OBS and the index data on the local disk is deleted. A frozen index has an increased query latency. During aggregation, the latency becomes even longer because the query is complex and a large amount of data needs to be retrieved.
• A frozen index with data already dumped to OBS cannot be unfrozen. That is, a read-only index cannot be rolled back to writable.
• In the case of two clusters configured with read/write splitting, the secondary cluster cannot set storage-compute decoupling for indexes synchronized from the primary cluster.
• The storage-compute decoupling feature depends on OBS. Therefore, you must comply with the restrictions on OBS bandwidth and QPS. For details, see OBS Restrictions. If these restrictions are violated, the performance of queries on OBS will deteriorate. For example, the speed of restoring shards and querying data will become slow.

Accessing a Cluster

1. Log in to the CSS management console.
2. On the Clusters page, locate the target cluster, and click Access Kibana in the Operation column to access Kibana.
3. Click Dev Tools in the navigation tree on the left.

Freezing an Index

POST ${index_name}/_freeze_low_cost

Information similar to the following is returned:

{
    "freeze_uuid": "pdsRgUtSTymVDWR_HoTGFw"
}

Checking the Progress of an Index Freezing Task

GET _freeze_low_cost_progress/${freeze_uuid}

Information similar to the following is returned:

{

  "stage" : "STARTED",
  "shards_stats" : {
    "INIT" : 0,
    "FAILURE" : 0,
    "DONE" : 0,
    "STARTED" : 3,
    "ABORTED" : 0
  },
  "indices" : {
    "data1" : [
      {
        "uuid" : "7OS-G1-tRke2jHZPlckexg",
        "index" : {
          "name" : "data1",
          "index_id" : "4b5PHXJITLaS6AurImfQ9A",
          "shard" : 2
        },
        "start_ms" : 1611972010852,
        "end_ms" : -1,
        "total_time" : "10.5s",
        "total_time_in_millis" : 10505,
        "stage" : "STARTED",
        "failure" : null,
        "size" : {
          "total_bytes" : 3211446689,
          "finished_bytes" : 222491269,
          "percent" : "6.0%"
        },
        "file" : {
          "total_files" : 271,
          "finished_files" : 12,
          "percent" : "4.0%"
        },
        "rate_limit" : {
          "paused_times" : 1,
          "paused_nanos" : 946460970
        }
      },
      {
        "uuid" : "7OS-G1-tRke2jHZPlckexg",
        "index" : {
          "name" : "data1",
          "index_id" : "4b5PHXJITLaS6AurImfQ9A",
          "shard" : 0
        },
        "start_ms" : 1611972010998,
        "end_ms" : -1,
        "total_time" : "10.3s",
        "total_time_in_millis" : 10359,
        "stage" : "STARTED",
        "failure" : null,
        "size" : {
          "total_bytes" : 3221418186,
          "finished_bytes" : 272347118,
          "percent" : "8.0%"
        },
        "file" : {
          "total_files" : 372,
          "finished_files" : 16,
          "percent" : "4.0%"
        },
        "rate_limit" : {
          "paused_times" : 5,
          "paused_nanos" : 8269016764
        }
      },
      {
        "uuid" : "7OS-G1-tRke2jHZPlckexg",
        "index" : {
          "name" : "data1",
          "index_id" : "4b5PHXJITLaS6AurImfQ9A",
          "shard" : 1
        },
        "start_ms" : 1611972011021,
        "end_ms" : -1,
        "total_time" : "10.3s",
        "total_time_in_millis" : 10336,
        "stage" : "STARTED",
        "failure" : null,
        "size" : {
          "total_bytes" : 3220787498,
          "finished_bytes" : 305789614,
          "percent" : "9.0%"
        },
        "file" : {
          "total_files" : 323,
          "finished_files" : 14,
          "percent" : "4.0%"
        },
        "rate_limit" : {
          "paused_times" : 3,
          "paused_nanos" : 6057933087
        }
      }
    ]
  }
}

The following parameters are added to a frozen index. For details, see Table 6.

Querying the Index List Based on Freezing Status

GET _cat/freeze_indices?stage=${STAGE}

Information similar to the following is returned:

green open data2 0bNtxWDtRbOSkS4JYaUgMQ 3 0  5 0  7.9kb  7.9kb
green open data3 oYMLvw31QnyasqUNuyP6RA 3 0 51 0 23.5kb 23.5kb

The parameters and return values of this command are the same as those of _cat/indices of open-source Elasticsearch.

Archiving a Frozen Index

• Archive storage is available only for Elasticsearch 7.10.2 clusters whose image version is 24.3.0.C001 or later.
• Only indexes that are frozen and closed can be archived.
• If you try to open an archived index directly, the request will time out and the index state will turn RED. Instead, you should first restore the archived index, convert its storage class from Archive to Standard, and then wait for it to open by itself.

Run the following command to convert the storage class of a frozen index in OBS from Standard to Archive:

POST {index_name}/_freeze_archive

Information similar to the following is returned:

{
  "task_uuid" : "XJTn3hsHSaCjPnvIgv-FFw"
}

Restoring an Archived Index

Run the following command to convert the storage class of an archived index in OBS from Archive to Standard: Once restored, an archived index will be opened automatically and become searchable while within the restoration validity period.

POST {index_name}/_freeze_archive_restore
{
    "days": 1,
    "tier": "EXPEDITED"
}

Information similar to the following is returned:

{
  "task_uuid" : "FA2a5hWgQ66MQ7ENCFKjCg"
}

Checking the Progress of an Index Archiving or Restoration Task

Run the following command to check the status and progress of an index archiving or restoration task:

GET _freeze_archive_progress/{task_uuid}

Information similar to the following is returned:

{
  "id" : "archive:XJTn3hsHSaCjPnvIgv-FFw",
  "indices" : [
    {
      "index_name" : "log-1017", //Index name
      "index_uuid" : "HXjhvo9QTwSvjzGBBZBCTw" //Index ID
    }
  ],
  "stage" : "ARCHIVE_DONE", //Current status
  "type" : "archive",  //The value can be archive or restore.
  "node" : "css-d0e8-ess-esn-1-1", //The name of the node where the task was executed.
  "start" : 1729222604074, //Task start time.
  "time_in_millis" : 788, //How long the task lasted.
  "files" : {
    "total" : 30,  //Total number of files.
    "success" : 30,  //Number of files succeeded.
    "incremental" : 0,   //Number of incrementally archived files in case the archive is performed multiple times.
    "bytes" : 0, //Total number of bytes restored. Only an index restoration task has this parameter.
    "fail" : 0 //Failed files.
  }
}

Querying the Index List Based on Archive or Restoration Status

Run the following command to query the index list based on archive or restoration status:

GET _cat/archive_indices?stage={STAGE}

Information similar to the following is returned:

health status index   uuid                   pri rep docs.count docs.deleted store.size pri.store.size
       close  log-105 M0uRAWj_SKydjg0dFzyJow

The parameters and return values of this command are the same as those of _cat/indices of open-source Elasticsearch.

Modifying Cache Settings for Cold Data Stored in OBS

After data is dumped to OBS, some data is cached to reduce access to OBS and improve cluster query performance. Data that is requested for the first time is retrieved from OBS. The retrieved data is then cached in the cluster memory. In response to subsequent queries, the system searches for data in the cache first.

Elasticsearch accesses different files using different methods. The cache system supports multi-level cache and uses blocks of different sizes to cache different files. For example, a large number of small blocks are used to cache .fdx and .tip files, while a small number of large blocks are used to cache .fdt files. The cache configuration can be modified based on service requirements. For details about the configuration items, see Table 14.

The following is a common cache configuration. It uses two levels of caches: default and large. The default cache uses 64-KB blocks and has a total of 30 x 4096 blocks. It is used to cache non-.fdt files. The large cache uses 2-MB blocks and contains 5 x 1000 blocks. It is used to cache .fdx, .dvd, and .tip files.

low_cost.obs.blockcache.names: ["default", "large"]
low_cost.obs.blockcache.default.type: file
low_cost.obs.blockcache.default.blockshift: 16
low_cost.obs.blockcache.default.number.blocks.perbank: 4096
low_cost.obs.blockcache.default.bank.count: 30
low_cost.obs.blockcache.default.exclude.file.types: ["fdt"]

low_cost.obs.blockcache.large.type: file
low_cost.obs.blockcache.large.blockshift: 21
low_cost.obs.blockcache.large.number.blocks.perbank: 1000
low_cost.obs.blockcache.large.bank.count: 5
low_cost.obs.blockcache.large.file.types: ["fdx", "dvd", "tip"]

Querying the Cache Status of Cold Data Stored in OBS

When the data of a frozen index is queried for the first time, the data retrieved from OBS is automatically cached by the cluster. You can query the cache status of cold data stored in OBS. You can also reset the cache status when you need to debug cluster performance.

1. Query the cache status of cold data stored in OBS.
   • Query statistics about cold data caching on all nodes:

     GET _frozen_stats

   • Query statistics about cold data caching on specified nodes:

     GET _frozen_stats/${node_id}

     Table 15 Request parameters

     Parameter	Description
     node_id	Node ID

   Information similar to the following is returned:

   {
     "_nodes" : {
       "total" : 3, //Total number of nodes
       "successful" : 3,  //Successful nodes
       "failed" : 0  //Failed nodes
     },
     "cluster_name" : "css-zzz1", //Cluster name
     "nodes" : {
       "7uwKO38RRoaON37YsXhCYw" : {
         "name" : "css-zzz1-ess-esn-2-1", //Node name
         "transport_address" : "10.0.0.247:9300", //Node transport address
         "host" : "10.0.0.247", //Node host
         "ip" : "10.0.0.247", //Node IP address
         "block_cache" : {
           "default" : {
             "type" : "memory", //Cache type. memory indicates in-memory cache.
             "block_cache_capacity" : 8192, //Cache capacity
             "block_cache_blocksize" : 8192, //Single-block size in the cache, in bytes. In the example, the block size is 8 KB.
             "block_cache_size" : 12, //Cache capacity used.
             "block_cache_hit" : 14,  //Number of cache hits.
             "block_cache_miss" : 0, //Number of cache misses.
             "block_cache_eviction" : 0, //Number of cache evictions.
             "block_cache_store_fail" : 0 //Number of cache storage failures, which occur when the cache is full.
           }
         },
         "obs_stats" : {
           "list" : {
             "obs_list_count" : 17, //Number of times the OBS list API was called.
             "obs_list_ms" : 265, //Total length of time spent calling the OBS list API.
             "obs_list_avg_ms" : 15 //Average time spent calling the OBS list API.
           },
           "get_meta" : {
             "obs_get_meta_count" : 79, //Number of times the OBS get metadata API was called.
             "obs_get_meta_ms" : 183, //Total length of time spent calling the OBS get metadata API.
             "obs_get_meta_avg_ms" : 2 //Average time spent calling the OBS get metadata API.
           },
           "get_obj" : {
             "obs_get_obj_count" : 12, //Number of times the OBS get object API was called.
             "obs_get_obj_ms" : 123, //Total length of time spent calling the OBS get object API.
             "obs_get_obj_avg_ms" : 10 //Average time spent calling the OBS get object API.
           },
           "put_obj" : {
             "obs_put_obj_count" : 12, //Number of times the OBS put object API was called.
             "obs_put_obj_ms" : 2451, //Total length of time spent calling the OBS put object API.
             "obs_put_obj_avg_ms" : 204 //Average time spent calling the OBS put object API.
           },
           "obs_op_total" : {
             "obs_op_total_ms" : 3022, //Total length of time spent calling OBS APIs.
             "obs_op_total_count" : 120, //Total number of times calling OBS APIs.
             "obs_op_avg_ms" : 25 //Average time spent calling OBS APIs.
           }
         },
         "reader_cache" : {
           "hit_count" : 0,
           "miss_count" : 1,
           "load_success_count" : 1,
           "load_exception_count" : 0,
           "total_load_time" : 291194714,
           "eviction_count" : 0
         }
       },
       "73EDpEqoQES749umJqxOzQ" : {
         "name" : "css-zzz1-ess-esn-3-1",
         "transport_address" : "10.0.0.201:9300",
         "host" : "10.0.0.201",
         "ip" : "10.0.0.201",
         "block_cache" : {
           "default" : {
             "type" : "memory",
             "block_cache_capacity" : 8192,
             "block_cache_blocksize" : 8192,
             "block_cache_size" : 12,
             "block_cache_hit" : 14,
             "block_cache_miss" : 0,
             "block_cache_eviction" : 0,
             "block_cache_store_fail" : 0
           }
         },
         "obs_stats" : {
           "list" : {
             "obs_list_count" : 17,
             "obs_list_ms" : 309,
             "obs_list_avg_ms" : 18
           },
           "get_meta" : {
             "obs_get_meta_count" : 79,
             "obs_get_meta_ms" : 216,
             "obs_get_meta_avg_ms" : 2
           },
           "get_obj" : {
             "obs_get_obj_count" : 12,
             "obs_get_obj_ms" : 140,
             "obs_get_obj_avg_ms" : 11
           },
           "put_obj" : {
             "obs_put_obj_count" : 12,
             "obs_put_obj_ms" : 1081,
             "obs_put_obj_avg_ms" : 90
           },
           "obs_op_total" : {
             "obs_op_total_ms" : 1746,
             "obs_op_total_count" : 120,
             "obs_op_avg_ms" : 14
           }
         },
         "reader_cache" : {
           "hit_count" : 0,
           "miss_count" : 1,
           "load_success_count" : 1,
           "load_exception_count" : 0,
           "total_load_time" : 367179751,
           "eviction_count" : 0
         }
       },
       "EF8WoLCUQbqJl1Pkqo9-OA" : {
         "name" : "css-zzz1-ess-esn-1-1",
         "transport_address" : "10.0.0.18:9300",
         "host" : "10.0.0.18",
         "ip" : "10.0.0.18",
         "block_cache" : {
           "default" : {
             "type" : "memory",
             "block_cache_capacity" : 8192,
             "block_cache_blocksize" : 8192,
             "block_cache_size" : 12,
             "block_cache_hit" : 14,
             "block_cache_miss" : 0,
             "block_cache_eviction" : 0,
             "block_cache_store_fail" : 0
           }
         },
         "obs_stats" : {
           "list" : {
             "obs_list_count" : 17,
             "obs_list_ms" : 220,
             "obs_list_avg_ms" : 12
           },
           "get_meta" : {
             "obs_get_meta_count" : 79,
             "obs_get_meta_ms" : 139,
             "obs_get_meta_avg_ms" : 1
           },
           "get_obj" : {
             "obs_get_obj_count" : 12,
             "obs_get_obj_ms" : 82,
             "obs_get_obj_avg_ms" : 6
           },
           "put_obj" : {
             "obs_put_obj_count" : 12,
             "obs_put_obj_ms" : 879,
             "obs_put_obj_avg_ms" : 73
           },
           "obs_op_total" : {
             "obs_op_total_ms" : 1320,
             "obs_op_total_count" : 120,
             "obs_op_avg_ms" : 11
           }
         },
         "reader_cache" : {
           "hit_count" : 0,
           "miss_count" : 1,
           "load_success_count" : 1,
           "load_exception_count" : 0,
           "total_load_time" : 235706838,
           "eviction_count" : 0
         }
       }
     }
   }


2. Run the following command to reset the cache status:

   POST _frozen_stats/reset



   This command is used to debug performance issues. If you reset the cache status and then run the cache query command, you can check the accurate cache command status. It is not advisable to use this command during service running.

   Information similar to the following is returned:

   {
     "_nodes" : {
       "total" : 1,
       "successful" : 1,
       "failed" : 0
     },
     "cluster_name" : "Es-0325-007_01",
     "nodes" : {
       "mqTdk2YRSPyOSXfesREFSg" : {
         "result" : "ok"
       }
     }
   }

Improving Cold Data Query Performance

This feature is supported by Elasticsearch 7.6.2, Elasticsearch 7.10.2, and OpenSearch 1.3.6 clusters created later than February 2023.

When cold data is queried on the Discover page of Kibana for the first time, all data needs to be retrieved from OBS because there is no cache. If a large number of documents need to be returned, it takes a long time to retrieve the corresponding time fields and file metadata from OBS. By caching this part of data within the cluster, you can significantly improve query performance. This is how CSS improves the query performance for cold data. Local cache settings are preset. You can modify them as needed. You can also view the local cache settings.

1. Modify local cache settings for cold data.

   Table 16 Local cache configuration items

   Configuration Item	Type	scope	Can Be Changed Dynamically	Description
   low_cost.local_cache.max.capacity	Integer	node	Yes	Maximum number of available cold data caches on a node. Each shard corresponds to a cache object. Value range: 10-5000 Default value: 500 NOTE: If the heap memory usage remains high, you can decrease this value. If the value of load_overflow_count keeps increasing rapidly, increase this value.
   index.low_cost.local_cache.threshold	Integer	index	Yes	Threshold for enabling the local cache of cold data. If in an index, the percentage of fields whose type is date is less than the value of this parameter, you can enable local cache for cold data of the date type. Otherwise, do not use it. If date fields account for the vast majority of all fields in the current index, you are advised not to use this setting. Unit: % Value range: 0 to 100 Default value: 50
   index.low_cost.local_cache.evict_time	String	index	Yes	Retention duration for cold data in the local cache. The value is determined based on index.frozen_date (time when the freezing is successful). If index.frozen_date is unavailable, the value is determined based on the index creation time. Unit: days Value range: 1 to 365 days Default value: 30d NOTE: You are advised to adjust the retention duration based on your disk usage.

   • Run the following command to modify low_cost.local_cache.max.capacity:

     PUT _cluster/settings
      {
        "persistent": {
          "low_cost.local_cache.max.capacity":1000
        }
      }

   • Run the following command to modify index.low_cost.local_cache.threshold:

     PUT es_write_pref2-00000000021/_settings
      {
      "index.low_cost.local_cache.threshold":20
      }

   • Run the following command to modify index.low_cost.local_cache.evict_time:

     PUT es_write_pref2-00000000021/_settings
      {
      "index.low_cost.local_cache.evict_time":"7d"
      }

2. Query the local cache information for cold data.
   • Query statistics and metrics about cold data caching on all nodes:

     GET /_frozen_stats/local_cache

   • Query statistics and metrics about cold data caching on specified nodes:

     GET /_frozen_stats/local_cache/{nodeId}

     {nodeId} indicates the node ID.

   Information similar to the following is returned:

   {
      "_nodes" : {
        "total" : 1,
        "successful" : 1,
        "failed" : 0
      },
      "cluster_name" : "elasticsearch",
      "nodes" : {
        "6by3lPy1R3m55Dcq3liK8Q" : {
          "name" : "node-1",
          "transport_address" : "127.0.0.1:9300",
          "host" : "127.0.0.1",
          "ip" : "127.0.0.1",
          "local_cache" : {
            "get_stats" : {
              "get_total_count" : 562,                            //Total number of times data was retrieved from the local cold data cache.
              "get_hit_count" : 562,                              //Total number of hits in the local cold data cache.
              "get_miss_count" : 0,                               //Total number of local cold data cache misses.
              "get_total_ns" : 43849200,                          //Total duration for retrieving data from the local cold data cache.
              "get_avg_ns" : 78023                                //Average duration for retrieving data from the local cold data cache.
            },
            "load_stats" : {
              "load_count" : 2,                                    //Number of times cold data was loaded from the local cache
              "load_total_ms" : 29,                                //Total duration for loading cold data from the local cache
              "load_avg_ms" : 14,                                  //Average duration for loading cold data from the local cache
              "load_fail_count" : 0,                               //Number of failures for loading cold data from the local cache
              "load_overflow_count" : 0                            //Number of times the local cold data cache exceeds the cache pool size.
            },
            "reload_stats" : {
              "reload_count" : 0,                                  //Number of times the local cold data cache was regenerated.
              "reload_total_ms" : 0,                               //Total duration for regenerating the local cold data cache.
              "reload_avg_ms" : 0,                                 //Average duration for regenerating the local cold data cache.
              "reload_fail_count" : 0                              //Number of failures in regenerating the local cold data cache.
            },
            "init_stats" : {
              "init_count" : 0,                                     //Number of times the local cold data cache was initialized.
              "init_total_ms" : 0,                                  //Total duration for initializing the local cold data cache.
              "init_avg_ms" : 0,                                    //Average duration for initializing the local cold data cache.
              "init_fail_count" : 0                                 //Number of failures in initializing the local cold data cache.
            }
          }
        }
      }
    }

Querying the Real-Time Rates of OBS in Handling Cold Data

This feature is supported by Elasticsearch 7.6.2, Elasticsearch 7.10.2, and OpenSearch 1.3.6 clusters created later than February 2023.

To help you understand how the storage-compute decoupling plug-in is working with OBS, an API for collecting statistics on the real-time rates of OBS has been added, and the real-time rates are recorded in the index .freeze_obs_rate-YYYY.mm.dd.

Calculation method: The average OBS operation rates in the last 5 seconds are calculated every 5 seconds.

The system index .freeze_obs_rate-YYYY.mm.dd records statistics on OBS real-time operation rates, helping you understand relevant trends about the OBS that stores cold data. The default retention period of the index is 30 days.

1. Querying the real-time rates of OBS in handling cold data.
   • Run the following command to query the real-time OBS rates on all nodes:

     GET _frozen_stats/obs_rate

   • Run the following command to query the real-time OBS rates on specified nodes:

     GET _frozen_stats/obs_rate/{nodeId}

     {nodeId} indicates the node ID.

   Example response:

   {
      "_nodes" : {
        "total" : 1,
        "successful" : 1,
        "failed" : 0
      },
      "cluster_name" : "elasticsearch",
      "nodes" : {
        "dflDvcSwTJ-fkiIlT2zE3A" : {
          "name" : "node-1",
          "transport_address" : "127.0.0.1:9300",
          "host" : "127.0.0.1",
          "ip" : "127.0.0.1",
          "update_time" : 1671777600482,                            // Time when the current statistics were updated.
          "obs_rate" : {
            "list_op_rate" : 0.0,                                   // Rate of OBS list operations. Unit: times/s.
            "get_meta_op_rate" : 0.0,                               // Rate of OBS get meta operations. Unit: times/s.
            "get_obj_op_rate" : 0.0,                                // Rate of OBS get operations. Unit: times/s.
            "put_op_rate" : 0.0,                                    // Rate of OBS put operations. Unit: times/s.
            "obs_total_op_rate" : 0.0,                              // Rate of all OBS operations. Unit: times/s.
            "obs_upload_rate" : "0.0 MB/s",                         // Data upload rate of OBS, in MB/s.
            "obs_download_rate" : "0.0 MB/s"                        // Data download rate of OBS, in MB/s.
          }
        }
      }
    }

2. Modify the retention period of the .freeze_obs_rate-YYYY.mm.dd index that stores the OBS real-time rates. The default retention period of indexes is 30 days.

   Run the following command to change the index retention period to seven days:

   PUT _cluster/settings
    {
      "persistent": {
        "low_cost.obs_rate_index.evict_time":  "7d"
      }
    }

   Table 17 Configuration items

   Configuration Item	Type	scope	Can Be Changed Dynamically	Description
   low_cost.obs_rate_index.evict_time	String	node	Yes	The retention period of the .freeze_obs_rate-YYYY.mm.dd index. Value range: 1 to 365 days Default value: 30d Unit: days
