Logging In to Application Resources Using a Web Browser for O&M

After you log in to an application resource using a web browser, the cooperation, file management, and file transfer functions are available for you. All operations performed on an application resource are recorded by CBH for audit.

  • Cooperation: This function allows the session initiator to invite other system users to participate the current session by sharing the session link with them, implementing O&M collaboration.
  • File management: This function allows all session participants to manage files or folders on hosts and host net disk after they obtain the operation permissions. In addition, they can:
    • Create new folders.
    • Change the name of a file or folder.
    • Delete files or folders in batches.
  • File transfer: This function allows session participants to download or upload files or folders on the host or host net disk after they obtain the operation permissions. They can:
    • Upload and download files.
    • Upload folders.
    • Upload multiple files or a folder to a host net disk or download multiple files from a host net disk to a local host, if Netdisk is selected as the destination address.

This topic describes how to log in to application resources and perform operations through a web browser.

Constraints

  • Currently, application operation is available only for the x86 CBH instances.
  • Only web browsers can be used to log in to application resources for O&M.
  • Although using a web browser for O&M allows you to copy and paste a large number of characters without garbled characters, a maximum of 80,000 characters can be copied from the local to the remote, and a maximum of 1000,000 of bytes can be copied from the remote to the local.
  • File management

    Files and folders cannot be edited in batches.

  • File Transmission
    • By default, the system supports the upload of a single file with a maximum size of 100 GB. However, the size of a single file to be uploaded is limited by the Personal Netdisk space and browser type.
    • Folders cannot be downloaded.
    • For application resources, only Netdisk can be select as the destination address.

Prerequisites

  • You have the management permissions for the App Operation module.
  • You have obtained the access permissions for the resources.
  • The network connection between the application server and the system is normal, and the account username and password for logging in to the application server are correct.

Procedure

  1. Log in to the CBH system.
  2. Choose Operation > App Operation to go to the App Operation page.

    Figure 1 App Operation

  3. On the displayed page, select the application resource you want and click Login in the Operation column to open the session.

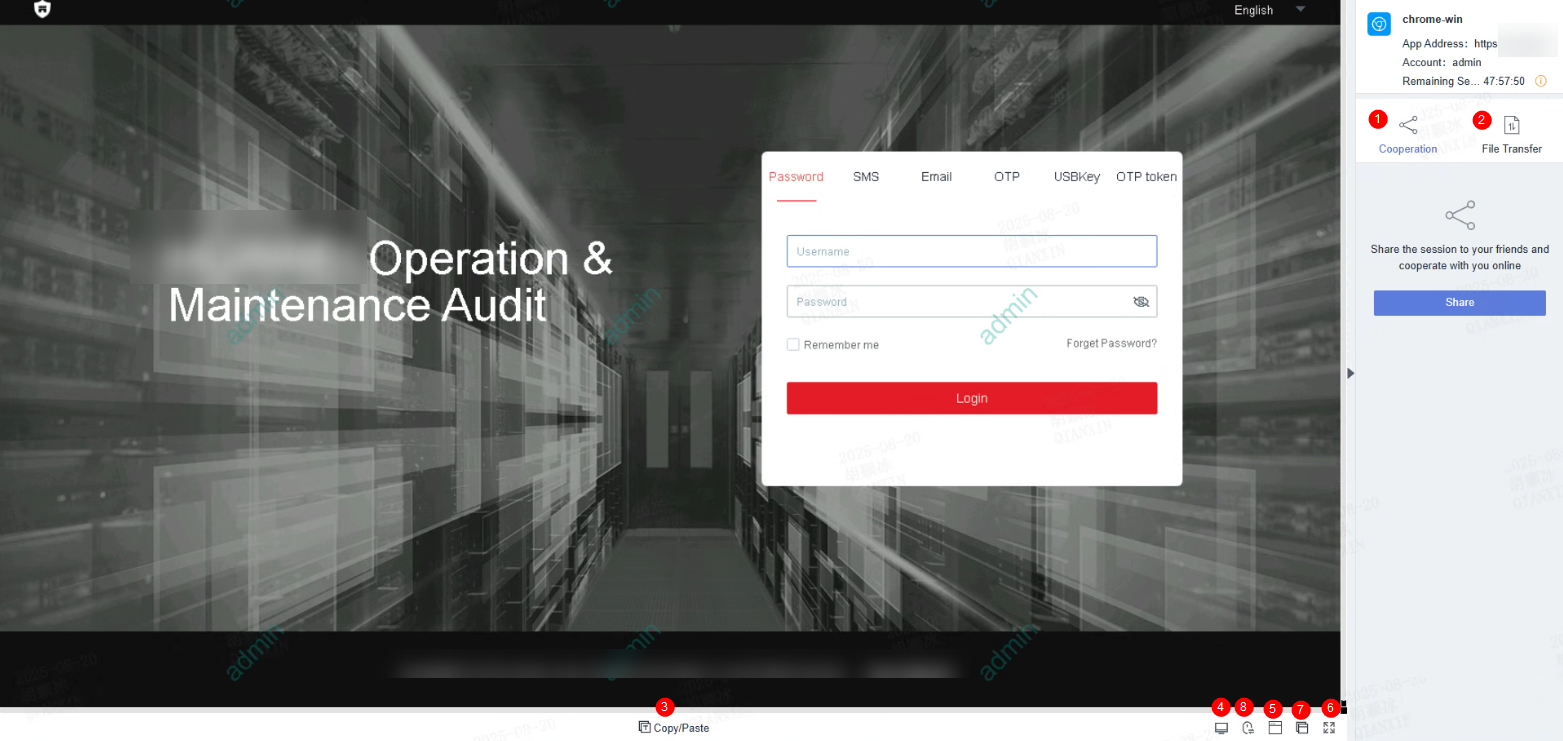

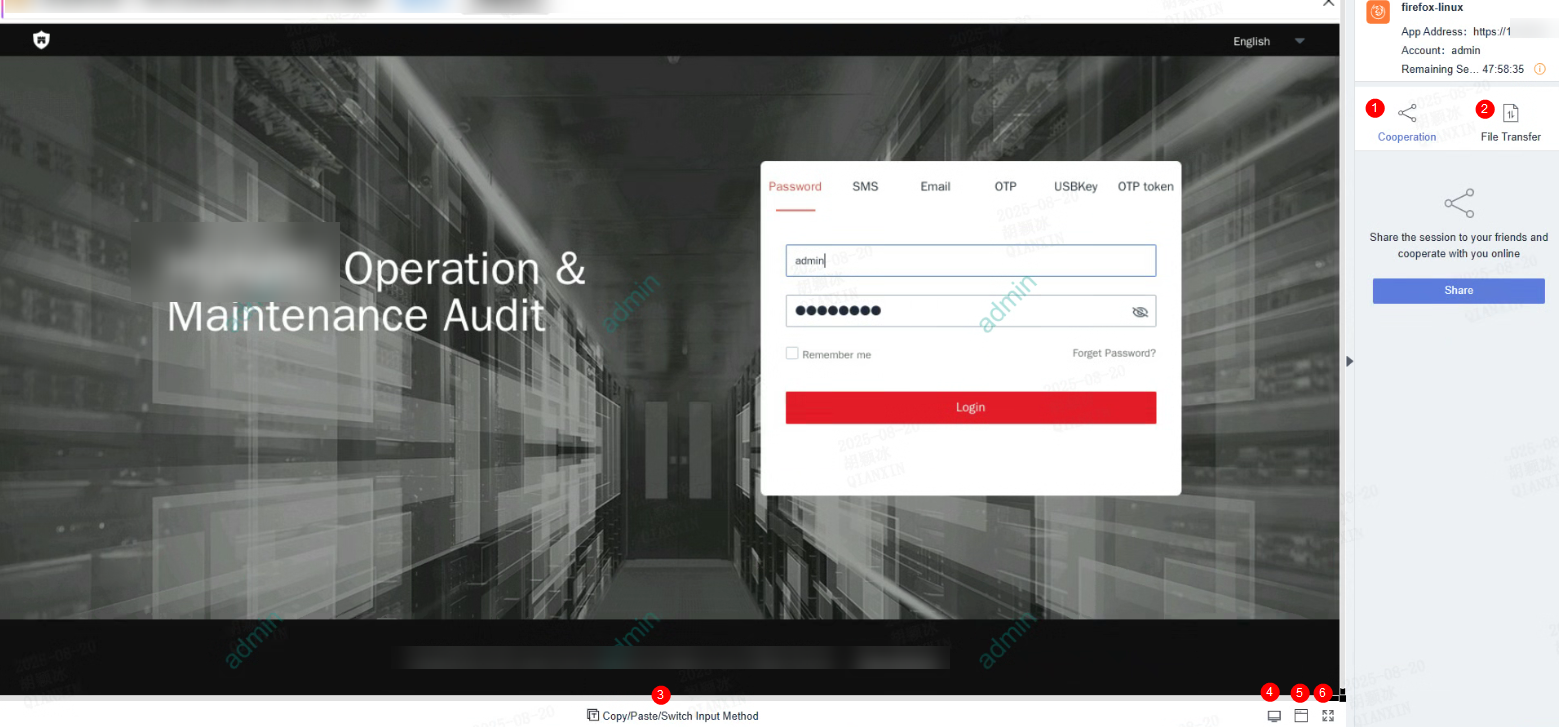

    Figure 2 App operation session
    Table 1 Parameters for session operation

    Parameter

    Description

    Copy/Paste

    Remote text: Select the character you want, press Ctrl+C twice to copy the character, and press Ctrl+V to paste the character.

    Remote machine files: Select a text or image, press Ctrl+B to copy it, and press Ctrl+G to paste it.

    NOTE:

    Although using a web browser for O&M allows you to copy and paste a large number of characters without garbled characters, a maximum of 80,000 characters can be copied from the local to the remote, and a maximum of 1000,000 of bytes can be copied from the remote to the local.

    Resolution

    You can switch the resolution of the current operation interface. During the switching, a new connection is created.

    Switch to remote mouse

    You can switch over between the local mouse and remote mouse.

    Windows

    This Windows icon can be used for easy access to Windows system functions.

    Ctrl+Alt+Delete

    Ctrl+Alt+Delete

    Copy window

    You can copy the current session window.

    Full screen

    Displays the window in full screen.

  4. Invite other system users to participate in the current session. For details, see Cooperation.

    1. Click Cooperation. The collaborative session window is displayed.
    Figure 3 Collaboration session page of the inviter
    1. Click Share. Complete the information in the displayed Invite friends dialog box.
      Figure 4 Collaboration session page of the inviter

      The link can be copied and sent to multiple users.

    2. Copy the URL and send it to the user who has permissions for accounts managed in CBH.
    3. Log in to the CBH system as the invited user, open a new browser window, and paste the session link.
      Figure 5 Collaborative session information
    4. If you are invited, click Enter to join the session.
      Figure 6 Collaboration session page of the inviter
      Table 2 Parameters for session operation

      Parameter

      Description

      Apply for control

      The invited user can apply for control from the invitation sender. Once approved, the invited user can control the current session.

      Exit session

      Exit the current session.

  5. Upload files to or download files from the host or host net disk. For details, see File Transfer.

    Click File Transfer to manage files or folders on the personal net disk.

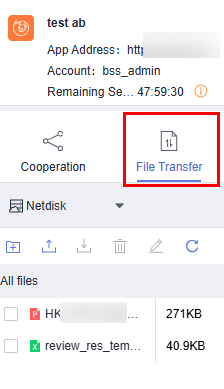

    Figure 7 File Transmission

  6. In the file management area, manage files or folders on the host or host net disk.

    1. Click File Transfer. The File Transfer window is displayed.
    1. Click to create a folder.

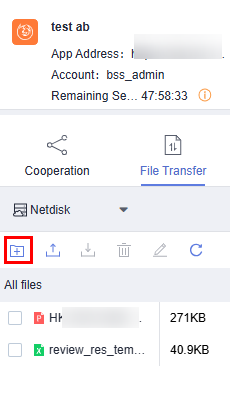

      Figure 8 New folder
    2. Select one or more files or folders and click to delete them.
    3. Select a file or folder and click to edit its name.
    4. Click to refresh all file directories.
