Adding a Subflow Diagram Element
Functions
A subflow allows you to use other activated flows within a flow. For complex service scenarios, you can break down a flow into subflows. By defining and activating these subflows, you can then call them within the main flow to achieve comprehensive functionality.
Using a Subflow Diagram Element
- On the flow designer, choose Basic and drag the Subflow diagram element to the canvas.
- Click the subflow diagram element in the canvas, click
, and configure basic information.
Table 1 Parameter description Parameter
Description
Label
Label of the diagram element, which is displayed on the flow design page. The system automatically assigns a value in a specific Flowsequence number format, with the sequence number starting at 0 for each type of diagram element.
Name
Diagram element name, which must be unique in the current flow. The naming requirements are as follows:
- Value: 1–80 characters.
- Start with a letter and can contain letters, digits, and underscores (_). It cannot end with an underscore (_).
Description
Description of the diagram element.
Value: 1–255 characters.
- Click
to select a flow instance and enter the input parameters and output parameters.

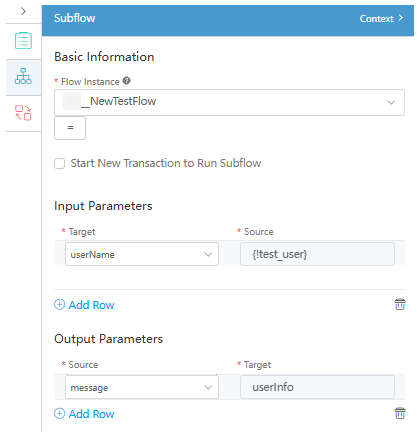

Figure 1 Configuring a subflow diagram elementTable 2 Parameters for configuring a subflow diagram element Parameter
Description
Flow Instance
Select a flow.
Only the activated flows can be called by other flows as sub-flows.
Start New Transaction to Run Subflow
If this option is selected, multiple sub-flows can be executed concurrently in a new transaction, improving efficiency. If a sub-flow fails to be executed, the execution of other sub-flows is not affected.
Input Parameters/Target
Input parameter name of a sub-flow. Click Add Row and select a value for Target.
Input Parameters/Source
Variable in a flow, which is used to assign a value to the target. You can either type in the value directly or drag a variable from the context to pass its value to an input parameter in a sub-flow.
Output Parameters/Source
Output parameter name of a sub-flow. Click Add Row and select a value for Source.
Output Parameters/Target
Variable in a flow, which assigns the output parameters from a sub-flow to a variable within the main flow. You can do this by setting the output of the sub-flow to a variable in the context.
- After the configuration is complete, click
to save the configuration.
