App List
Viewing the App List
- Log in to the management console.
- Click
on the left and choose Management & Governance > Application Performance Management.
- In the navigation pane, choose App Monitoring > App List. The list of all connected apps is displayed.
Table 1 App parameters Parameter
Description
Mobile App
Name of a mobile app.
Application
Application to which the mobile app belongs.
Collection Status
Collection status of the app. Options: Normal and Disabled.
Created
Time when the mobile app is connected.
Operation
Operations that can be performed on the app. For details, see Table 9.
Setting an Alarm Policy
- In the navigation pane, choose App Monitoring > App List. Locate a target app and click View Alarm Policy in the Operation column to view the alarm policy list.
- Click Add Alarm Policy.
- Basic information
Table 2 Basic information parameters Parameter
Description
Policy Name
Custom name, which cannot be left blank.
Only letters, digits, underscores (_), and hyphens (-) are allowed. Enter up to 512 characters.
Alarm Severity
Severity of an alarm. Options: COMMON and CRITICAL.
Monitored Object
Name of the mobile app to be monitored.
Monitoring Type
Select a monitoring type.
- Options: Frame freezing monitoring collection, Crash monitoring collection, Device monitoring collection, Error monitoring collection, Customized statistics collection, and Launch performance collection. The information about the selected type is displayed on the right.
Metric Set
Select a target metric set. The information about the selected metric set is displayed on the right.
- Alarm rule

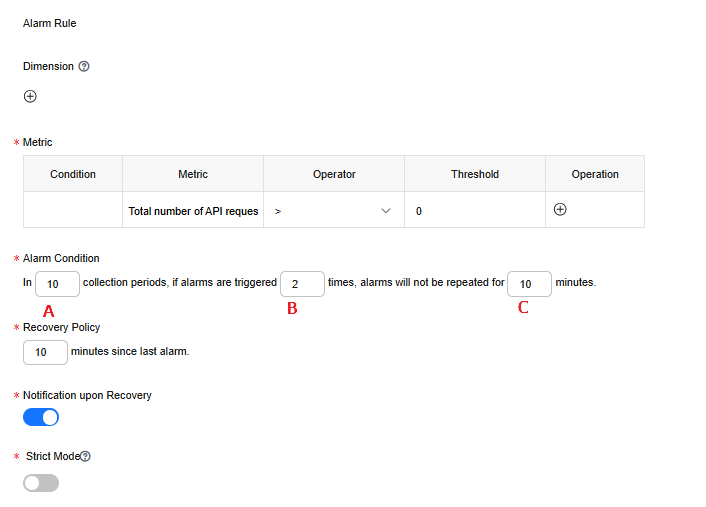

Figure 1 Alarm rule
Table 3 Alarm rule parameters Parameter
Description
Dimension
(Optional) A fine-grained category of metrics.
Metric
Metric for which you want to define one or more alarm rules.
Alarm Condition
Condition for triggering an alarm.
A: 1–10
B: 1–10; not greater than A
C: ≥ 10
Recovery Policy
Condition for clearing an alarm.
Notification upon Recovery
Whether to notify recipients of alarm clearance.
Strict Mode
Checks all returned values against alarm rules to detect exceptions.
- Alarm Notification
Table 4 Alarm notification parameters Parameter
Description
Notification Content
Alarm details, which contain up to 500 characters.
- If Strict Mode is enabled, the alarm notification content supports both Variable and Loop. If Strict Mode is disabled, only Variable is supported.
- Alarm notification content. You can customize the content or select required metrics.
- Select the metrics to be collected. On the right of the page, click
next to a metric. The metric will then be referenced to the notification content box.
Notification Object
Select a notification object from the drop-down list. Alarms will then be sent to the selected notification object.
- Basic information
- Click OK.
- After the alarm template is created, perform the following operations if needed.
Table 5 Alarm policy-related operations Operation
Description
Enabling or disabling an alarm policy
Click Disable or Enable in the Operation column to disable or enable an alarm policy, respectively.
Editing an alarm policy
Click Edit in the Operation column.
Deleting an alarm policy
Click Delete in the Operation column.
Connecting a Mobile App
- Connect an Android app.
Table 6 Connecting an Android app Parameter
Description
Create Mobile App
- Application: Select an application from the drop-down list.
- App Name: name of the mobile app to be created, which is used to distinguish it from other mobile apps.
Add Extended Configuration Item
- Select one or more SDK extended configuration items, or do not select any item.
- Data of unselected items will not be displayed.
Track Service
Add an Agent to track the Android app.
- Download a configuration file.
- Place the file to the root directory of the project.
- Add SDK dependencies.
- Connect an iOS app.
Table 7 Connecting an iOS app Parameter
Description
Create Mobile App
- Application: Select an application from the drop-down list.
- App Name: name of the mobile app to be created, which is used to distinguish it from other mobile apps.
Add Extended Configuration Item
- Select one or more SDK extended configuration items, or do not select any item.
- Data of unselected items will not be displayed.
Track Service
Add an Agent to track the iOS app.
- Download a configuration file.
- Place the file to the root directory of the project.
- Add SDK dependencies.
- Connect a HarmonyOS app.
Table 8 Connecting a HarmonyOS app Parameter
Description
Create Mobile App
- Application: Select an application from the drop-down list.
- App Name: name of the mobile app to be created, which is used to distinguish it from other mobile apps.
Add Extended Configuration Item
- Select one or more SDK extended configuration items, or do not select any item.
- Data of unselected items will not be displayed.
Track Service
Add an Agent to track the HarmonyOS app.
- Download a configuration file.
- Place the file to the rawfile folder in the resource directory of the project.
- Add SDK dependencies.
More Operations
After the mobile app is connected, perform the operations listed in Table 9 if needed.
Operation |
Description |
---|---|
Enabling or disabling an app |
In the Operation column, click Disable to disable an app or click Enable to enable an app. |
Checking the alarm policy |
Click View Alarm Policy in the Operation column. For details, see Setting an Alarm Policy. |
Editing an app |
Click Edit in the Operation column. |
Deleting an app |
Click Delete in the Operation column. |
