URL
This function monitors the URL of the current application when being called by an external service and URL of an external application when being called by the current service. Based on this monitoring item, you can obtain the actual external status and call conditions of your service.
- Log in to the management console.
- Click
on the left and choose Management & Governance > Application Performance Management.
- In the navigation pane, choose Link Trace > Metrics.
- In the tree on the left, click an environment. Then click the URL tab.

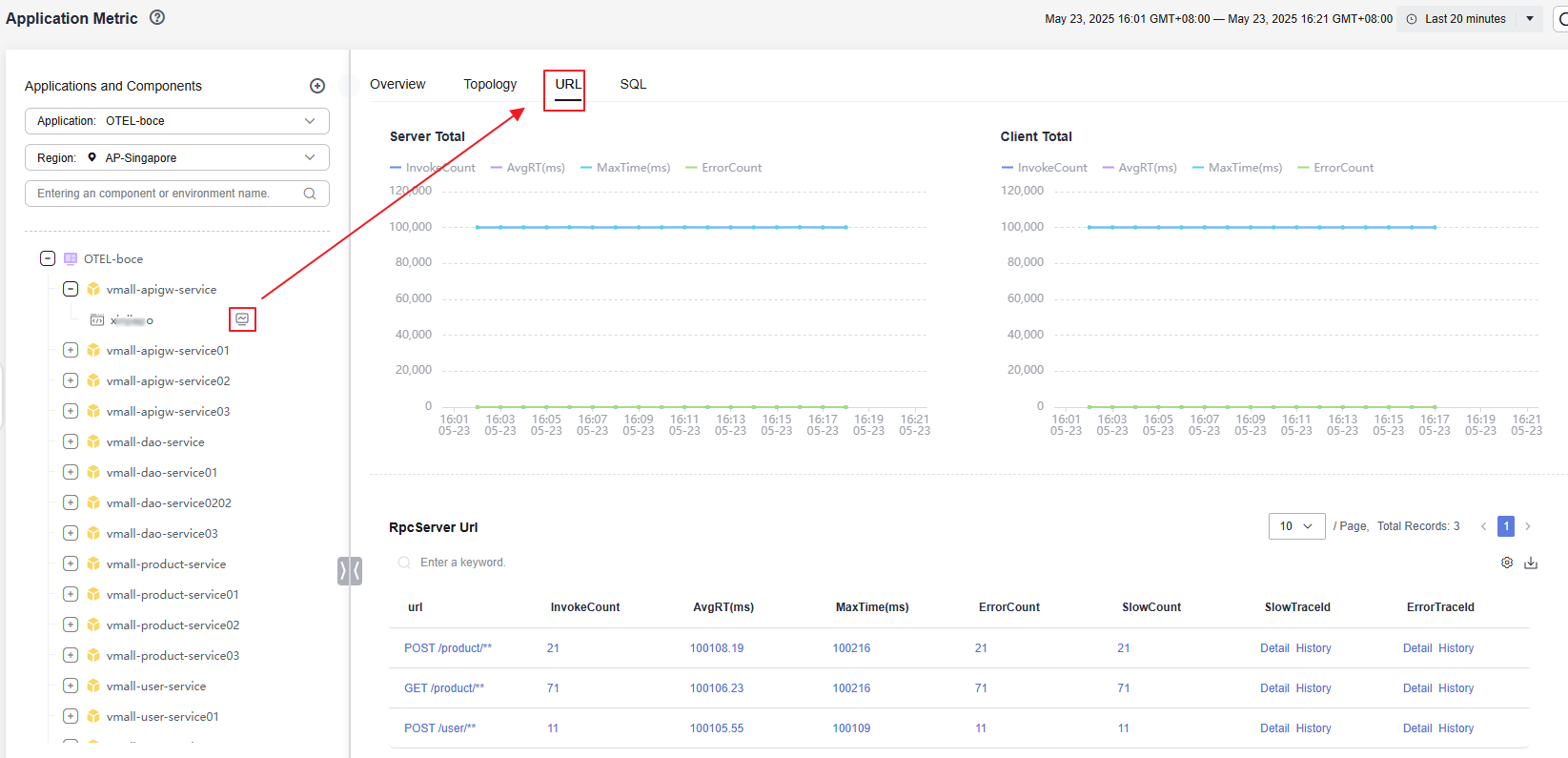

Figure 1 URL
- On the displayed page, select an instance to view its monitoring data.
- Select a time range. Default: Last 20 minutes.
Options: Last 20 minutes, Last hour, Last 3 hours, Last 6 hours, Last day, Today, Yesterday, or Custom.
Server
Monitors the URLs called by external services and displays the trends of metrics such as the number of calls, maximum duration, average duration, and number of errors.
Client
Monitors the URLs of external services called by the current application and displays the trends of metrics such as the number of calls, maximum duration, average duration, and number of errors.
Server API statistics
Monitors called server APIs. The monitored metrics include the URL, number of calls, average duration, maximum duration, number of errors, number of slow calls, slow trace, and error trace.
- Set the search criteria and click
in the search box to filter instances.
- Click
in the upper right corner of the list and select the target metric data.
- Click
in the upper right corner of the list to export information. A maximum of 100 records can be exported.
Client API statistics
Monitors called client APIs. The monitored metrics include the URL, number of calls, average duration, maximum duration, number of errors, number of slow calls, slow trace, and error trace.
- Set the search criteria and click
in the search box to filter instances.
- Click
in the upper right corner of the list and select the target metric data.
- Click
in the upper right corner of the list to export information. A maximum of 100 records can be exported.
