Quick Deployment

Updated on 2023-04-25 GMT+08:00

View PDF

This section describes how to deploy the Scheduled Startup/Shutdown solution.

**Table 1** Parameter description
Parameter	Type	Mandatory	Description	Default Value
fuction_name	string	Yes	Function name, which identifies a function and serves as the prefix of other resource names. It must be unique and can contain 2 to 48 characters, including letters, digits, underscores (_), and hyphens (-). Start with a letter.	scheduled_power_on_and_power_off_demo
ids	string	Yes	IDs of the ECSs to periodically start or stop. Separate the IDs with spaces. For example, id1 id2 ....	Left blank
start_cron	string	Yes	Cron expression for periodical startup. Format: second minute hour day month week (optional). For example, *0 15 2 * ? (executed at 02:15:00 every day), 0 30 8 ? * Mon (executed at 08:30:00 every Monday), 0 0 7 1 * ?** (executed at 07:00:00 on the first day of every month). For details about how to set a cron expression, see Appendix: Cron Expressions for a Function Timer Trigger.	Left blank
stop_cron	string	Yes	Cron expression for periodical shutdown. Format: second minute hour day month week (optional). For example, *0 15 2 * ? (executed at 02:15:00 every day), 0 30 8 ? * Mon (executed at 08:30:00 every Monday), 0 0 7 1 * ?** (executed at 07:00:00 on the first day of every month). For details about how to set a cron expression, see Appendix: Cron Expressions for a Function Timer Trigger.	Left blank

Log in to Huawei Cloud Solution Best Practices, choose Scheduled Startup/Shutdown, and click Deploy.

Figure 1 Deploying the solution
On the Select Template page, click Next.

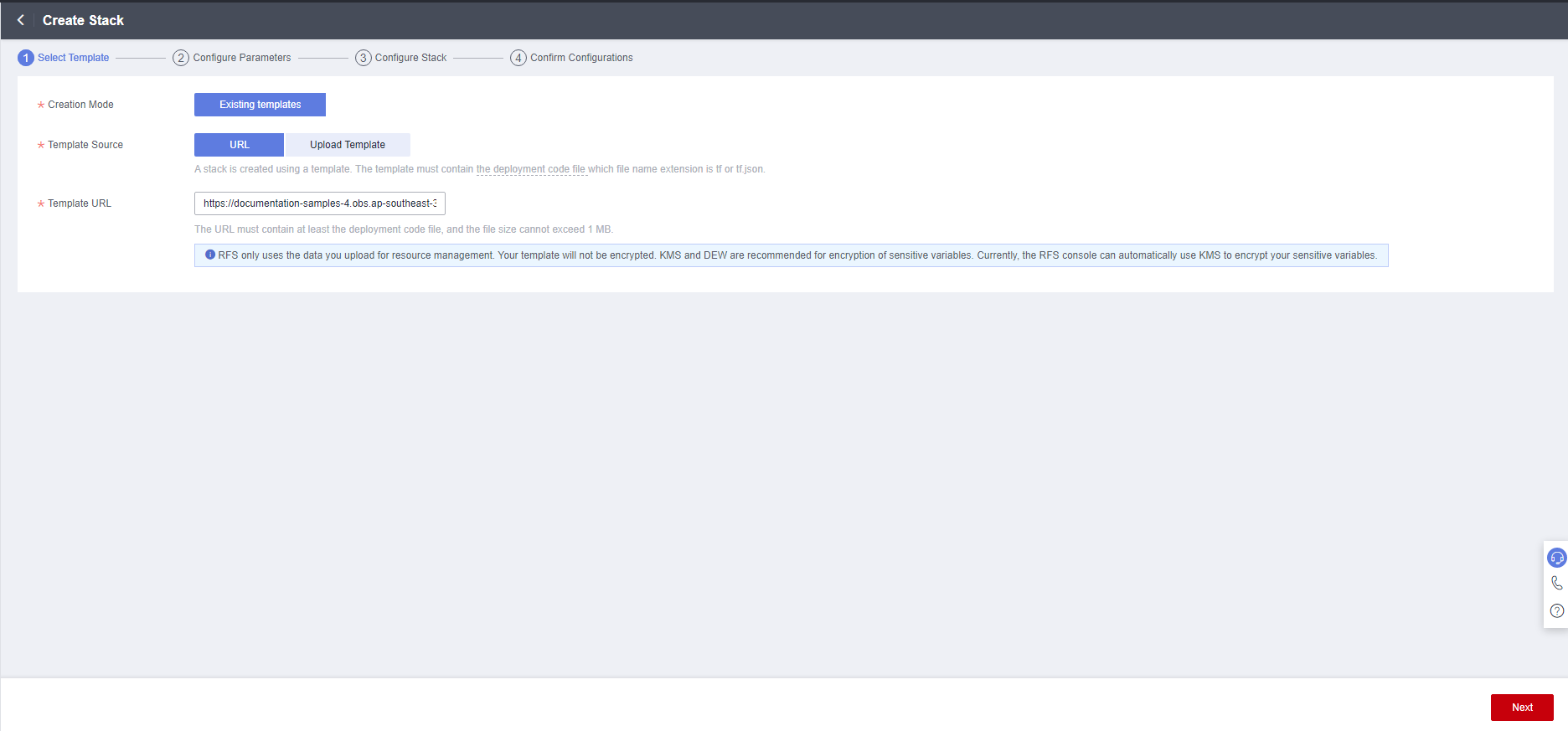

Figure 2 Selecting a template
On the Configure Parameters page, configure parameters by referring to Table 1 and click Next.

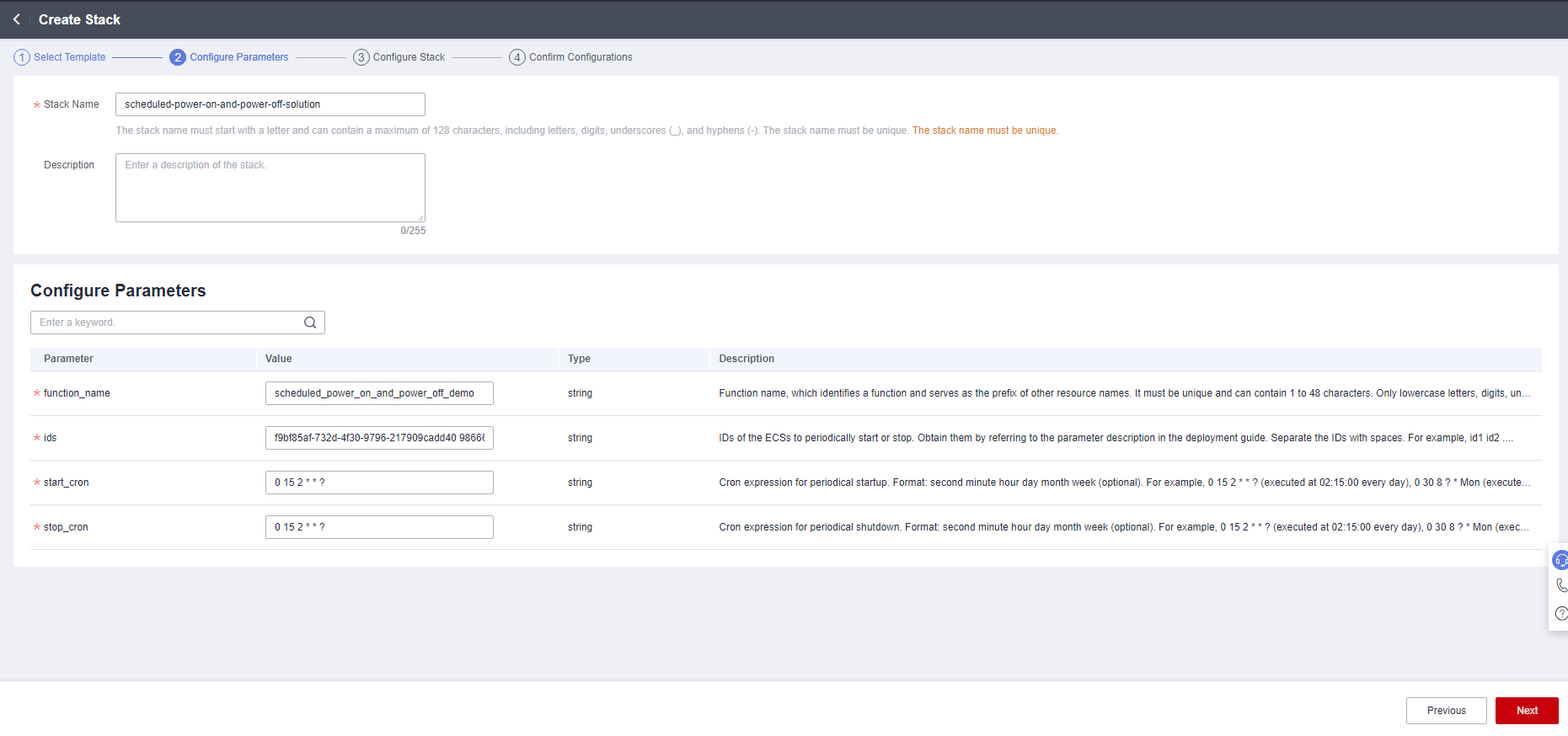

Figure 3 Configuring parameters
On the displayed page, select rf_admin_trust from the Agency drop-down list and click Next.

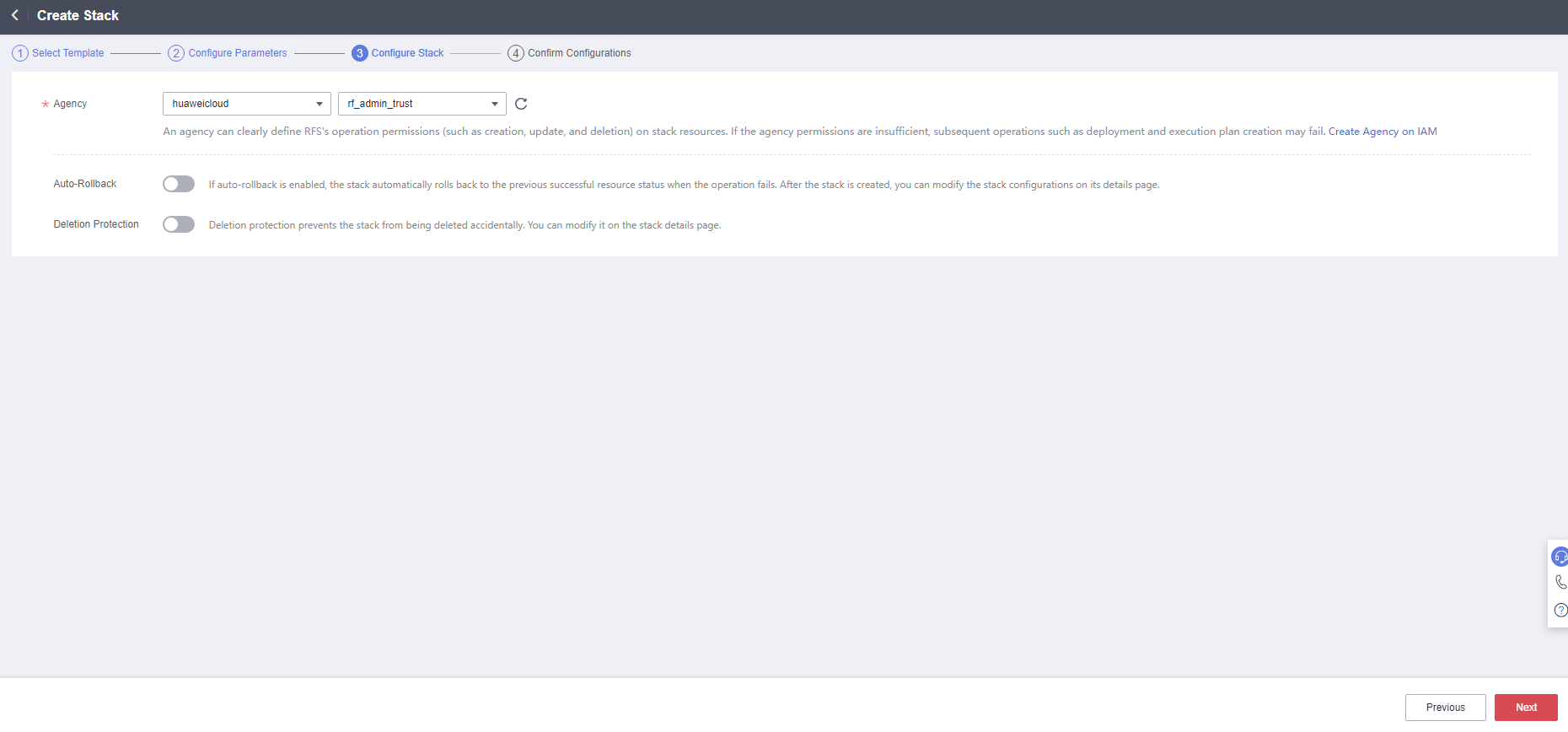

Figure 4 Configuring a stack
On the Confirm Configurations page, click Create Execution Plan.

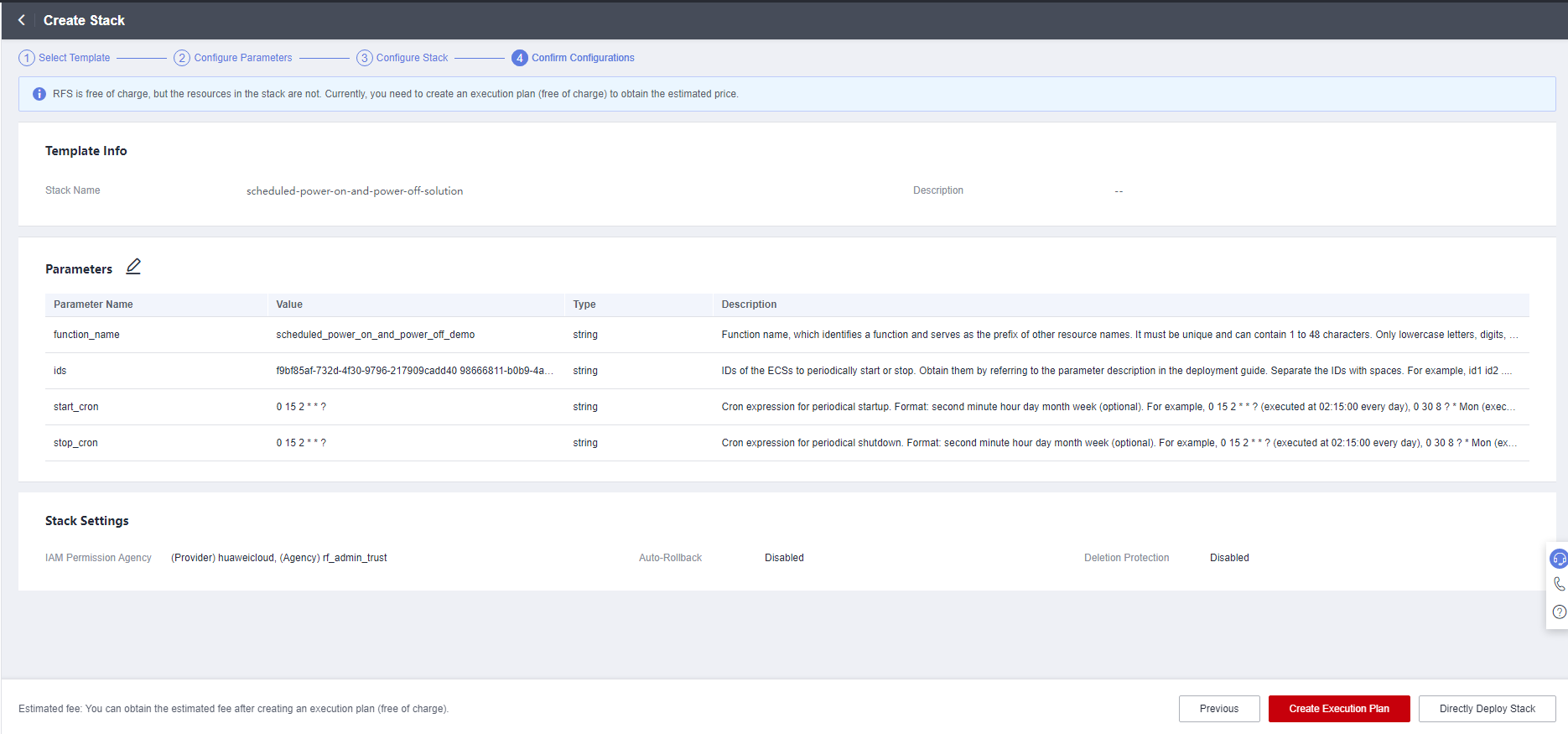

Figure 5 Confirming configurations
In the displayed Create Execution Plan dialog box, enter an execution plan name and click OK.

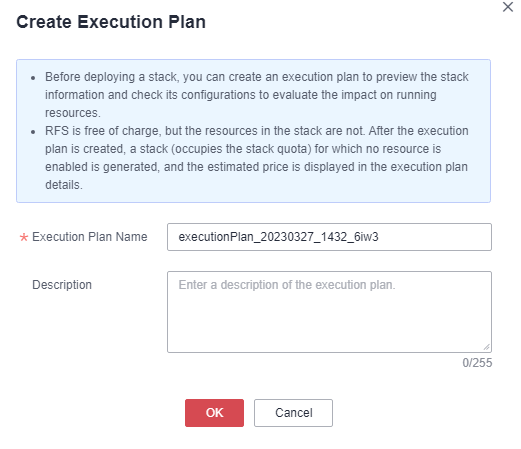

Figure 6 Creating an execution plan
Click Deploy. In the displayed dialog box, click Execute.

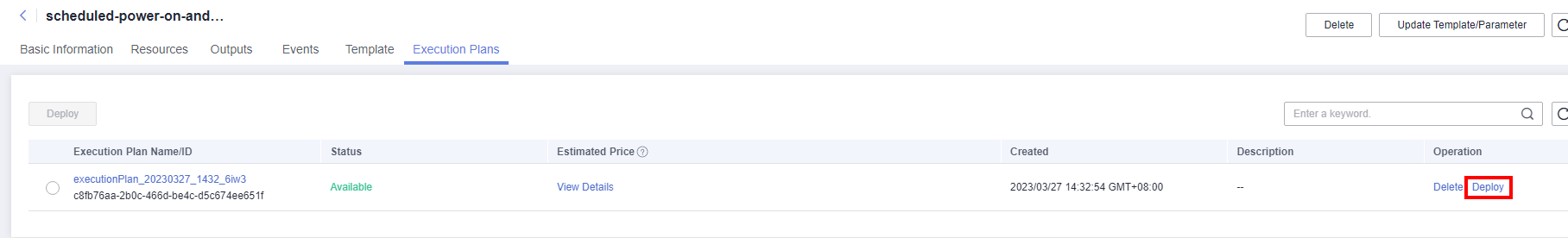

Figure 7 Execution Plans tab

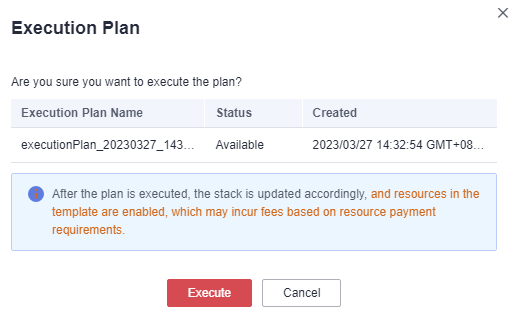

Figure 8 Confirming the execution plan
Click the Events tab and check whether the message "Apply required resource success." is displayed. If yes, the solution is successfully deployed.

Figure 9 Solution deployed
