Viewing and Removing Mappings

Precautions

• After a mapping is removed, service applications cannot obtain the latest data of the source database from the acceleration instance.
• The corresponding mapping rule will be cleared after a mapping is removed.
• If the source instance or acceleration instance is not normal, the mapping cannot be removed.

Querying the Mapping List

1. Log in to the Huawei Cloud console.
2. In the service list, choose Databases > GeminiDB Redis API.
3. In the navigation pane on the left, choose Memory Acceleration Management. On the displayed page, search for your target mapping by keyword (such as the mapping name or mapping ID).

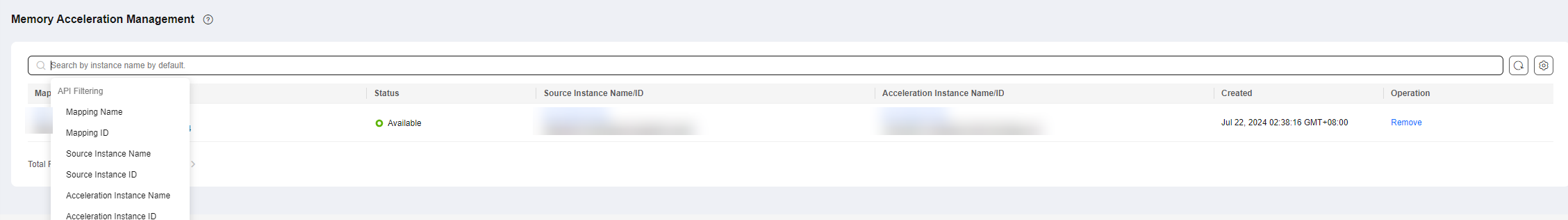

   Figure 1 Mapping list


Removing a Mapping

1. Log in to the Huawei Cloud console.
2. In the service list, choose Databases > GeminiDB Redis API.
3. In the navigation pane on the left, choose Memory Acceleration Management. On the displayed page, locate the target mapping and click Remove in the Operation.

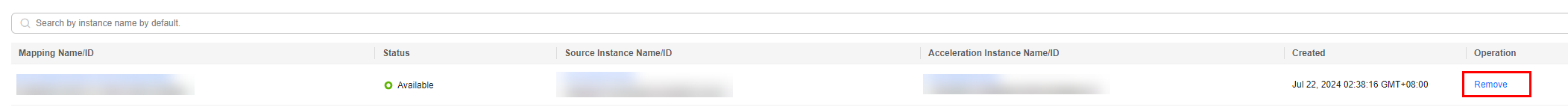

   Figure 2 Memory acceleration management


4. In the displayed dialog box, click OK.

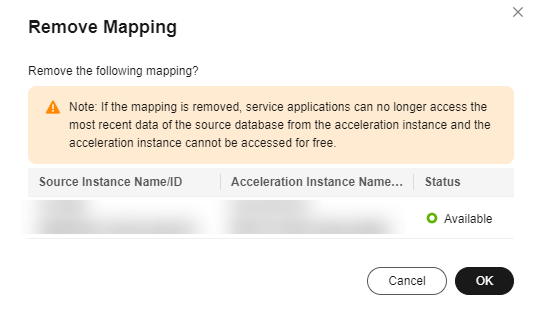

   Figure 3 Removing a mapping
